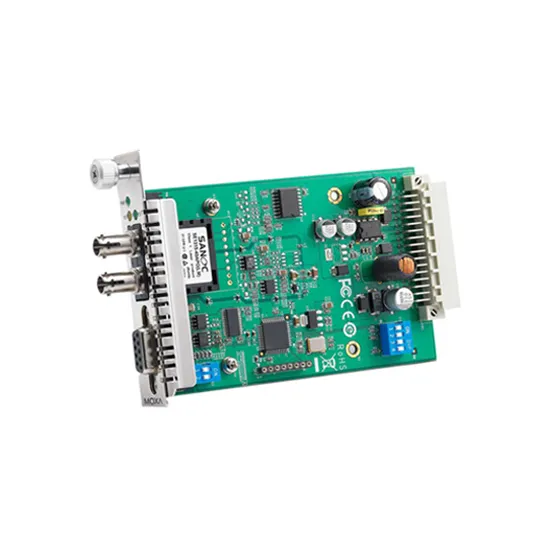

MOXA TCF-142-M-ST-RM Serial to Fiber Slide-in Module

Tags: Industrial Edge Connectivity , Serial Converters , Serial-to-Fiber Converters , Industrial Converters , Industrial Media Converters , Converters , Modules , MOXA TCF-142-RM Series

Model: TCF-142-M-ST-RM

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA TCF-142-M-ST-RM FEATURES

2 x RS-232/422/485 Serial ports
1 x 100BaseFX multi-mode (ST connector)
5 km Data transmission typical distance on fiber
IP30-rated Metal body design
0 to 60°C operating temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA TCF-142-M-ST-RM INTRODUCTION

The TCF-142-RM Series slide-in modules are serial-to-fiber converters that work with the TRC-190 chassis. The modules convert from the RS-232, RS-422, or RS-485 signal to a fiber-optic signal.

Automatic Baudrate Detection

The TCF-142-RM Series can automatically detect the serial baud rate. This is an extremely convenient feature. Even if a device’s baud rate is changed, the signal will still be transmitted through the media converter without any problem.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA TCF-142-M-ST-RM Serial to Fiber Slide-in Module online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the TCF-142-M-SC-RM, TCF-142-S-SC-RM, and TCF-142-S-ST-RM models in the MOXA TCF-142-RM Series.

MOXA TCF-142-M-ST-RM CERTIFICATIONS

Converter : Interface
100Mb Fiber optic single mode (Megabit) Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	Yes : 1 ST Port
USB	No
Serial port	Yes : 2 x RS-232/422/485
Other ports	No
Isolation	No
Converter : Converter specifications
Data transfer speed	50 bps to 921.6 kbps (supports non-standard baudrates)
Maximum data transmission distance	5Km on fiber
Minimum output power converter	-5dBm
Sensitivity to receiving information	-20dBm
Wavelength	850 nm
Require cable diameter	50/125 µm, 800 MHz, 62.5/125 µm, 500 MHz
Flow Control	ADDC® (automatic data direction control) for RS-485
Protocols	-
Converter : Serial Signals
RS-232 Signals	TxD, RxD, GND
RS-422 Signals	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Signals	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals	Data+, Data-, GND
Converter : Power Requirements
Power Consumption (Output Adapter)	150 mA @ 12 VDC
Power Input Plugin ( Redundant )	No
Overload Current Protection	Supported
Reverse Polarity Protection	No
Input Voltage	-
Input Current	150 mA @ 12 VDC
Connector	Terminal block
Converter : General
Fan / Fanless	-
MTBF	514,926 hrs
Converter : Physical Characteristics
Dimensions	86.8 x 136.5 x 21 mm (3.42 x 5.37 x 0.83 in)
Housing	Metal
Installation	-
Operating Temperature	0 to 60°C (32 to 140°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: EN 60950-1, IEC 60950-1; Vibration: IEC 60068-2-6
Storage Temperature	-20 to 75°C (-4 to 167°F)
Weight	105 g (0.23 lb)
Converter : LED Indicators
LED Per Port	Yes
Power	Yes
