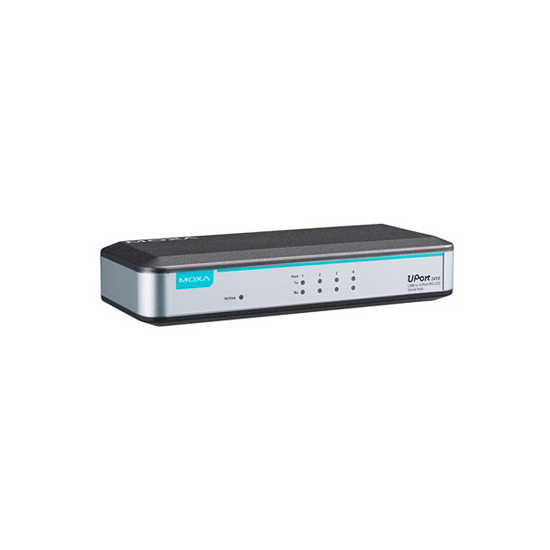

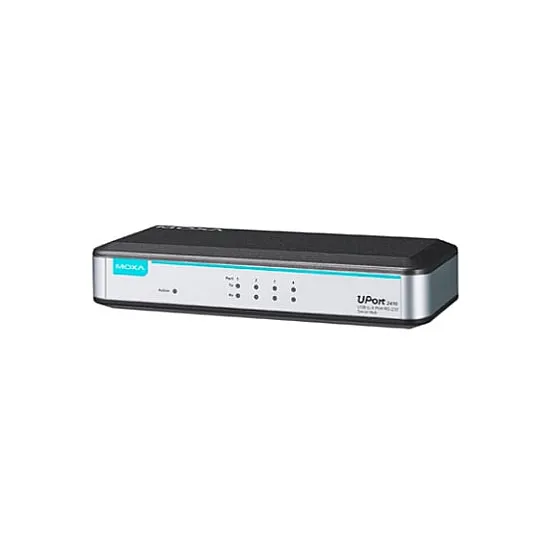

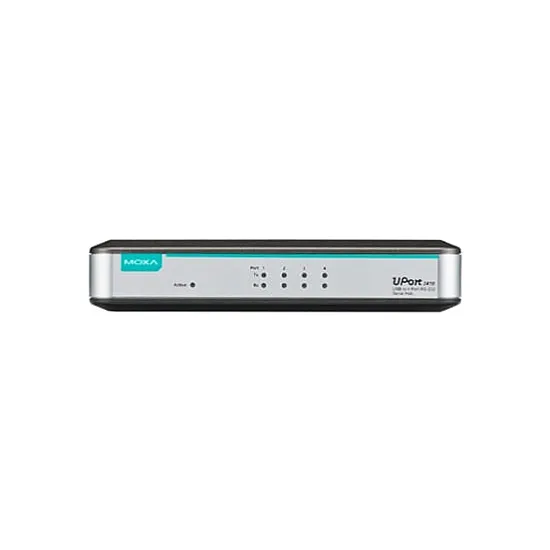

MOXA UPort 2410 USB to Serial Converter

Model: UPort 2410

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA UPort 2410 FEATURES

1 x USB 2.0 Port (Type B connector)

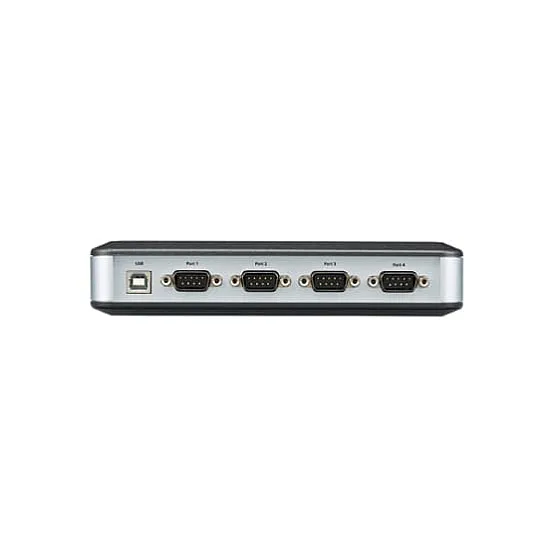

4 x RS-232 Serial port (DB9 male connector)
5 VDC input power range
Polycarbonate body material
Compatible Driver with Windows, Linux, macOS
0 to 55°C operating temperature range

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA UPort 2410 INTRODUCTION

The UPort® 2210/2410 USB-to-serial converters allow you to connect two or four RS-232 devices to your laptop or workstation through the USB port. The UPort® 2210 and UPort® 2410 are cost-effective solutions for both new and legacy RS-232 devices, and they are perfect for mobile, instrumentation, and point-of-sale applications.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA UPort 2410 USB to Serial Converter online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the UPort 2210 model in the MOXA UPort 2210/2410 Series.

MOXA UPort 2410 CERTIFICATIONS

USB-to-Serial : USB Interface
Number of Ports	1 Port
USB Connector	USB type B
USB Standards	USB 3.2 Gen 1, USB 1.1/2.0 compliant
Speed	12 Mbps, 480 Mbps
USB-to-Serial : Serial Interface
Total number of serial ports	4 x RS-232 Ports
Serial connection type	DB9-M
Serial Communication Parameters	Data Bits : 5, 6, 7, 8 and Stop Bits : 1, 1.5, 2 and Parity : None, Even, Odd, Space, Mark
Flow Control	RTS/CTS, XON/XOFF, None
FIFO	-
Data transfer speed ( Baudrate )	50 bps to 921.6 kbps
Electrical isolation	No
USB-to-Serial : Compatible Operating Systems
Windows Drivers	Windows 2000, Windows XP/2003/Vista/2008/7/8 x86/x64, 2012 x64
Linux Drivers	Linux 2.6.x, 3.0.x
Mac Drivers	-
USB-to-Serial : Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	-
RS-485-4w	-
RS-485-2w	-
USB-to-Serial : Power Requirements
Input Voltage	5 VDC
Input Current	240 mA @ 5 VDC
USB-to-Serial : General
MTBF	3,901,775 hrs
USB-to-Serial : Physical Characteristics
Dimensions	80 x 35 x 185 mm (3.15 x 1.38 x 7.28 in)
Housing	Polycarbonate (PC)
Standards and Certifications	EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 4 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Safety: UL 60950-1; Vibration: IEC 60068-2-6; Freefall: IEC 60068-2-32; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB
Operating Temperature	0 to 55°C (32 to 131°F)
Storage Temperature	-20 to 75°C (-4 to 167°F)
Operation Humidity	5% to %95 RH non-condensing
Weight	210 g (0.46 lb)
