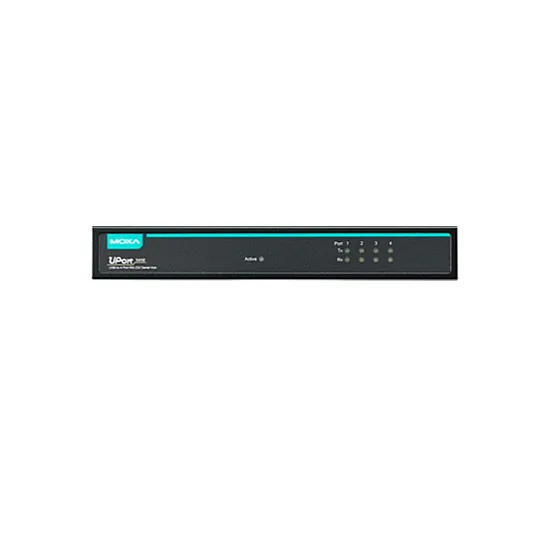

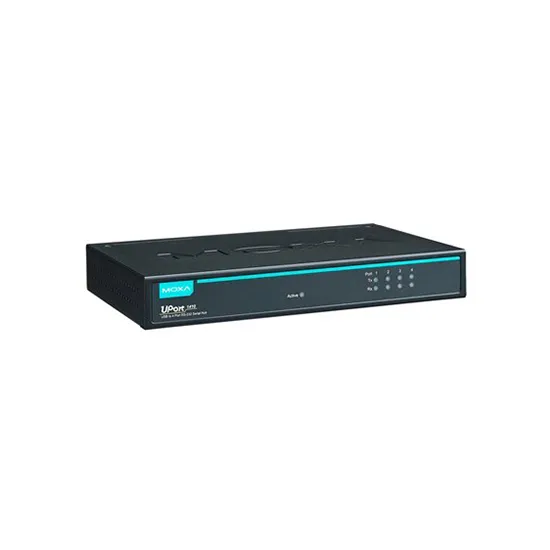

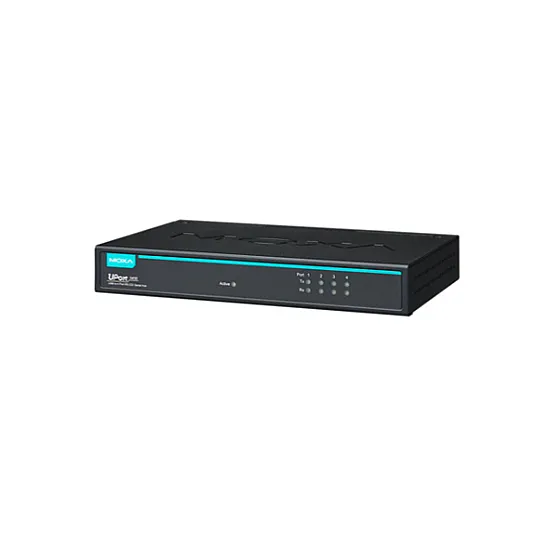

MOXA UPort 1410 USB to Serial Converter

MOXA UPort 1410 USB to Serial Converter
  • Model: UPort 1410
$0.00
Ex Tax: $0.00

MOXA UPort 1410 FEATURES

  • 1 x USB 2.0 Port (Type B connector)
  • 4 x RS-232 Serial ports (DB9 male connector)
  • 12 to 48 VDC input power range
  • Metal body design
  • Compatible Driver with Windows, Linux, macOS
  • 0 to 55°C operating temperature


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA UPort 1410 INTRODUCTION

The UPort® 1000 Series of USB-to-serial converters is the perfect accessory for laptop or workstation computers that do not have a serial port. They are essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector.
The UPort® 1000 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices and can be used with instrumentation and point-of-sale applications.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA UPort 1410 USB to Serial Converter online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the UPort 1250, UPort 1610-16, and UPort 1650-16 models in the MOXA UPort 1200/1400/1600.

MOXA UPort 1410 CERTIFICATIONS



USB-to-Serial : USB Interface
Number of Ports 1 Port
USB Connector USB type B
USB Standards USB 1.1/2.0 compliant
Speed 12 Mbps, 480 Mbps
USB-to-Serial : Serial Interface
Total number of serial ports 4 x RS-232 Ports
Serial connection type DB9-M with a mini DB9-F converter to the terminal
Serial Communication Parameters Data Bits : 5, 6, 7, 8 and Stop Bits : 1, 1.5, 2 and Parity : None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF, None
FIFO 128bytes
Data transfer speed ( Baudrate ) 50 bps to 921.6 kbps
Electrical isolation No
USB-to-Serial : Compatible Operating Systems
Windows Drivers Windows 11/10/8.1/8/7/Vista/XP/ME/98/95, Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT
Linux Drivers Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x
Mac Drivers macOS versions: 10.12 to 10.15, 11.x
USB-to-Serial : Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 -
RS-485-4w -
RS-485-2w -
USB-to-Serial : Power Requirements
Input Voltage 12 to 48 VDC
Input Current 260 mA @ 12 VDC
USB-to-Serial : General
MTBF 394,441 hrs
USB-to-Serial : Physical Characteristics
Dimensions 204 x 30 x 125 mm (8.03 x 1.18 x 4.92 in)
Housing Metal
Standards and Certifications EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m, IEC 61000-4-8 PFMF; Safety: UL/IEC 62368-1; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard
Operating Temperature 0 to 55°C (32 to 131°F)
Storage Temperature -20 to 75°C (-4 to 167°F)
Operation Humidity 5 to 95% (non-condensing)
Weight 720 g (1.59 lb)
