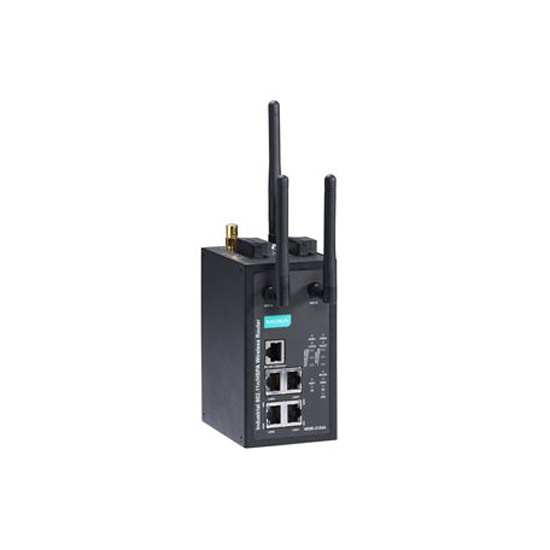

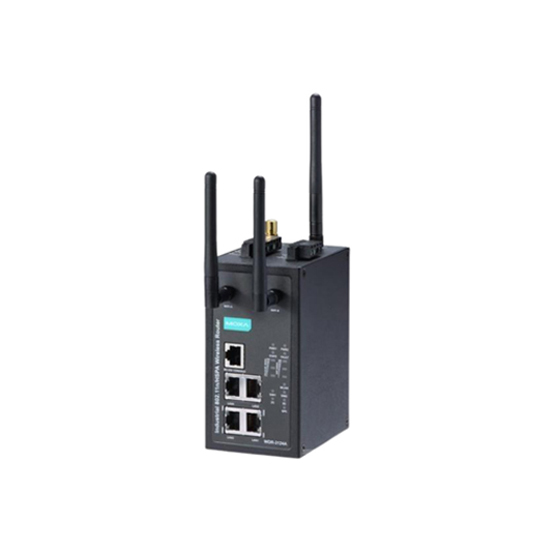

MOXA WDR-3124A-US Wireless Router

MOXA WDR-3124A-US Wireless Router
  • Model: WDR-3124A-US
$0.00
Ex Tax: $0.00

MOXA WDR-3124A-US FEATURES

  • Supports GSM, GPRS, EDGE, UMTS, HSPA Standards
  • 4 x 10/100/1000 Mbps ports (RJ45 connector)
  • DIN rail mountable
  • IP30-rated Aluminum body design
  • 12 to 48 VDC Redundant dual power inputs
  • 0 to 55°C  operating temperature
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA WDR-3124A-US INTRODUCTION

The WDR-3124A industrial wireless router combines 802.11n and cellular technologies to provide flexible wireless network connectivity. The WDR3124A comes with a built-in antenna and power isolation suitable for any harsh industrial environment. With DIN-rail mounting, wide operating temperature range models, and IP30 housing, the WDR-3124A is a convenient yet reliable solution for any industrial wireless application.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA WDR-3124A-US Wireless Router online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

End-of-Life Product - No Replacement

Please note that the WDR-3124A-US Series has been phased. You can explore the OnCell G4302-LTE4 Series and OnCell G4308-LTE4 Series in the MOXA Cellular Routers.

MOXA WDR-3124A-US CERTIFICATIONS



3G Modem : Interface
SIM card slot Yes : 2 slots (3 V)
Ethernet Ports Yes : 4 x 10/100/1000 Mbps ports (RJ45 connector)
USB No
Digital Input and Output Yes : 2 electrically isolated inputs (+13 to +30 V for state “1” (On), +3 to -30 V for state “0” (Off))
Serial port No
Alert Output Yes: 1 relay output with current carrying capacity of 1 A @ 24 VDC
Cellular Standards GSM, GPRS, EDGE, UMTS, HSPA
Band Options UMTS/HSPA 800 MHz / 850 MHz / 900 MHz / 1900 MHz / 2100 MHz Universal quad-band GSM/GPRS/EDGE 850 MHz / 900 MHz / 1800 MHz / 1900 MHz
Cellular Antenna Connectors 1 x SMA female
WLAN Standards 802.11a/b/g/n, 802.11i Wireless Security
WLAN Antenna Connector 2 x RP-SMA female
GPS Antenna Connector 1 x SMA female
3G Modem : Radio specifications
Radio Connection type GuaranLink
Maximum data transfer speed of 2G EDGE : 237Kbps download speed, 237Kbps upload speed, and GPRS: download speed of 85.6Kbps, upload speed of 85.6 kbps
Maximum data transfer speed of 3G 14.4 Mbps download speed, 5.76 Mbps upload speed
Maximum data transfer speed of 4G -
WiFi Radio Frequency No
3G Modem : Software Specifications
VPN IPsec VPN
Firewall Filter: MAC, IP protocol, port-based
Routing Redundancy No
Management ARP, DDNS, DHCP Client, DNS, HTTP, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, Web Console, Wireless Search Utility, Serial Console, Telnet Console, Remote SMS Control, OnCell Central Manager, GuaranLink
Time Management SNTP
3G Modem : General
LED Indicators PWR1, PWR2, STATUS, FAULT, CELLULAR SIGNAL, WIFI SIGNAL, WLAN, SIM1, SIM2, 2G, 3G, GPS
Operating mode Router, 3G Modem
MTBF 382,851 hrs
3G Modem : Standards and protocols
Protocols IPsec
3G Modem : Features and capabilities
Send and receive SMS Yes
3G Modem : Security
Security and Encryption Security: HTTPS, IPsec, SSH, Encryption: DES, 3DES, AES, MD5, SHA-1, DH2, DH5
Authentication MD5 and SHA (SHA-256), PSK/X.509/RSA
3G Modem : Power Requirements
Power Connector Terminal block
Power Consumption (Output Adapter) -
Input Voltage 12 to 48 VDC (Redundant dual power inputs)
POE Support No
Input Current 0.7 A @ 12 VDC, 0.2 A @ 48 VDC
Reverse Polarity Protection Supported
3G Modem : Buttons
Power button No
Reset Yes
3G Modem : Physical Characteristics
Dimensions 66.3 x 124 x 90 mm (2.61 x 4.88 x 3.54 in)
Installations DIN rail mountable housing
Housing Aluminum
Weight 1,280 g (2.82 lb)
Operating Temperature 0 to 55°C (32 to 131°F)
Storage Humidity 5 to 95% (non-condensing)
Storage Temperature -40 to 85°C (-40 to 185°F)
Type of Use Industrial environment
Standards and Certifications Safety: EN 60950-1, UL 60950-1; EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, Radio Frequency: EN 301 489-1, EN 301 489-7, EN 301 511, EN 301 908, EN 300 328, EN 301 893, FCC ID SLE-WAPN005; IP30; Telcordia SR332
