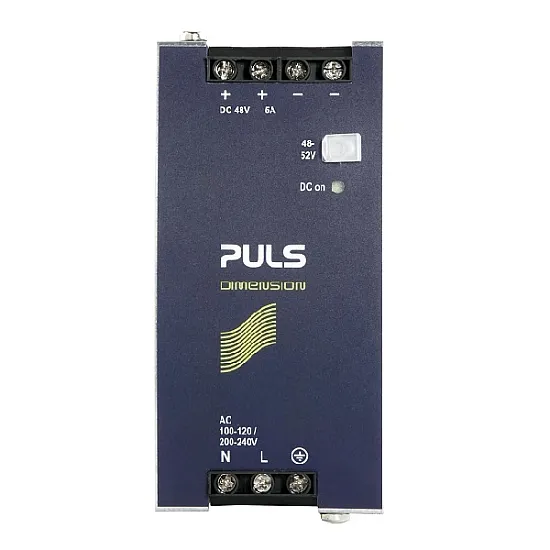

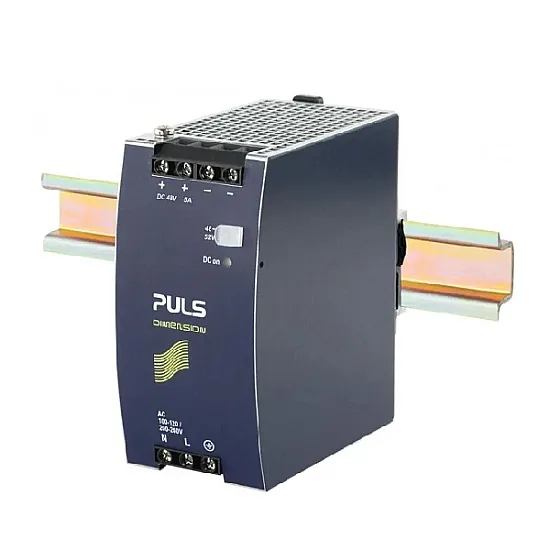

PULS CS10.481 DIN-rail Power Supply

PULS CS10.481 DIN-rail Power Supply
  • Model: CS10.481
$0.00
Ex Tax: $0.00

PULS CS10.481 FEATURES

  • 115 / 230V Auto-select input
  • Efficiency up to 91,6%
  • Negligibly low input inrush current
  • 20% Power reserves can be used continuously up to +45°C
  • Full output power between -25 and +60°C
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

PULS CS10.481 INTRODUCTION

The DIMENSION C-Line units are cost-optimized power supplies without compromising quality, reliability, and performance. The C-Line is part of the DIMENSION power supply family, existing alongside the high-featured Q-Line.
The CS10.481 includes all the essential basic functions and the devices have a power reserve of 20%. This extra current may even be used continuously at temperatures up to +45°C.
The most important features are the small size, high efficiency, and the wide temperature range. The Auto-select input makes worldwide installation and usage very simple. Defects or system failures caused by wrongly set switches cannot occur. High immunity to transients and power surges, as well as low electromagnetic emission and a large international approval package for a variety of applications, make this unit suitable for nearly every situation.

As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS CS10.481 DIN-rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the CT10.481 and CT10.241 models in the PULS DIN-Rail Power Supplies for 3-phase Systems Series.

PULS CS10.481 CERTIFICATIONS



PULS Power Supply : Input Data
Input Voltage Range Lower input voltage range: 90 to 132 VAC, Upper input voltage range: 180 to 264 VAC
Nominal Input Voltage 100 to 120 VAC
Input Frequency Range 50 to 60 Hz
Input Current At 120 to 230 VAC: 3.73 to 2.23A
Power Factor At 120 to 230 VAC: 0.59 to 0.51
Crest Factor At 120 to 230 VAC: typ. 2.6 to 3.3
Inrush Current At 120 to 230 VAC: 3 to 3A peak
Input Fuse Yes
PULS Power Supply : Output Data
Output Voltage Range 48 to 52 V
Nominal Output Voltage 48 VDC
Output Current Up to +60°C ambient: 5.0 to 4.6A, at +70°C ambient: 3.8 to 3.5A
Output Power 240 W
Power Boost Up to +45°C ambient: 6.0A
Output Capacitance typ. 3100µF
PULS Power Supply : Protection Features
Overload Protection Yes
Reverse Input Polarity Protection No
Over-Temperature Protection Yes
Input Transient Protection Yes: MOV
Output Transient Protection No
Short Circuit Protection Yes
Output Overvoltage Protection Yes: typ. 56 VDC, Max. 60 VDC
PULS Power Supply : General
MTBF SN 29500: 830000 h
Connection Method Screw terminals
AC/DC OK AC: Yes
LED Indicators 1 green LED
Remote ON / OFF Function -
IO-Link Interface -
PULS Power Supply : Physical Characteristics
Operating Temperature -25 to 70 °C
Storage Temperature -40 to 85°C
Relative Humidity Range 5 to 95% r.h
Altitude Range 0 to 2000m
Derating Between +60°C and +70°C: 6W/K
Dimensions 60 mm x 124 mm x 117 mm
Weight 700 g
Mounting Type DIN rail
Housing Body: Aluminium alloy, Cover: Zinc-plated steel
Standards and Certifications WEEE, REACH, EU, VDMA 24364, ISA-71.04 G3, Marine (ABS), Marine (DNV), Class I Div 2, UL 60950-1, IEC 60950-1, IEC 61010-2-201, UL 508, IEC 60068-2-27, IEC 60068-2-6
