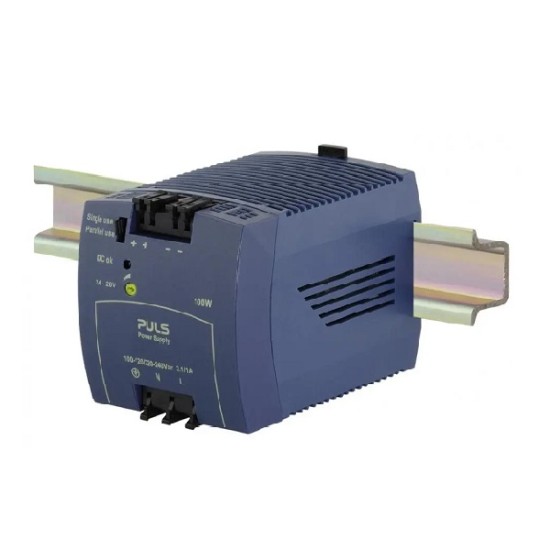

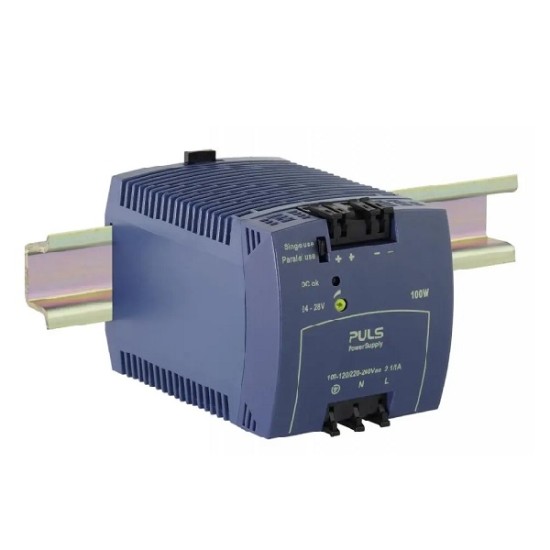

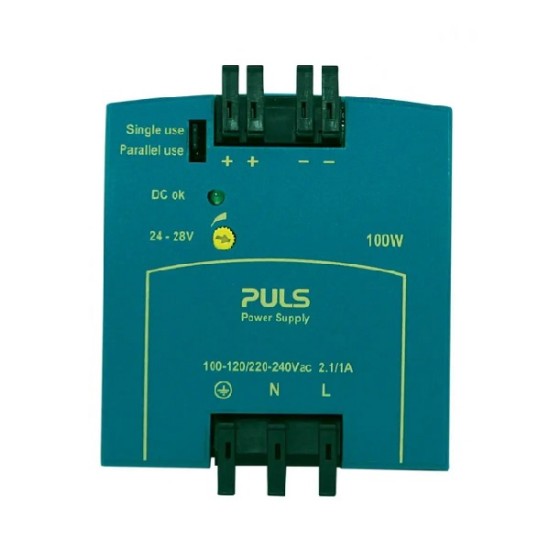

PULS ML100.102 DIN-rail Power Supply

PULS ML100.102 DIN-rail Power Supply
  • Model: ML100.102
$0.00
Ex Tax: $0.00

PULS ML100.102 FEATURES

  • Mounted and connected within seconds, no tools required
  • Worldwide approvals (UL, EN, CSA, CB Scheme) for industry and office/ home use
  • Tiny: WxHxD = 73 x 75 x 103mm
  • Hazardous Location Class I Div. 2 (UL 1604)
  • Adjustable output voltage up to DC 15V
  • 115/230V Auto Select Input
  • Selectable single/parallel operation (jumper)
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

PULS ML100.102 INTRODUCTION

The ML100.102 is a DIN-rail Power supply with DC 12 - 15V / 90W Input power.

As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS ML100.102 DIN-rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the ML100.100 and ML100.105 models in the PULS DIN-Rail Power Supplies for 1-phase Systems Series.

PULS ML100.102 CERTIFICATIONS



PULS Power Supply : Input Data
Input Voltage Range AC: 100 to 240 VAC, DC: 220 to 375 VDC
Nominal Input Voltage -
Input Frequency Range 50 to 60 Hz
Input Current 2.1A
Power Factor 0.55 A
Crest Factor -
Inrush Current 22 A to 37 A
Input Fuse -
PULS Power Supply : Output Data
Output Voltage Range 12 to 15 V
Nominal Output Voltage 12 VDC
Output Current 6 A at 15 V, 7.5 A at 12 V
Output Power 90 W
Power Boost -
Output Capacitance -
PULS Power Supply : Protection Features
Overload Protection Yes
Reverse Input Polarity Protection No
Over-Temperature Protection -
Input Transient Protection No
Output Transient Protection No
Short Circuit Protection No
Output Overvoltage Protection Yes: typ. 18.5V
PULS Power Supply : General
MTBF SN 29500: 500000 h
Connection Method Spring clamps
AC/DC OK AC/DC: Yes
LED Indicators 1 green LED
Remote ON / OFF Function -
IO-Link Interface -
PULS Power Supply : Physical Characteristics
Operating Temperature -10° to 70°C
Storage Temperature -25° to 85°C
Relative Humidity Range 95% Non-condensing
Altitude Range -
Derating -
Dimensions 73 mm x 75 mm x 103 mm
Weight 360 g
Mounting Type DIN rail
Housing -
Standards and Certifications UL 60950-1, IEC 60950-1, IEC 61010-2-201, UL 508
