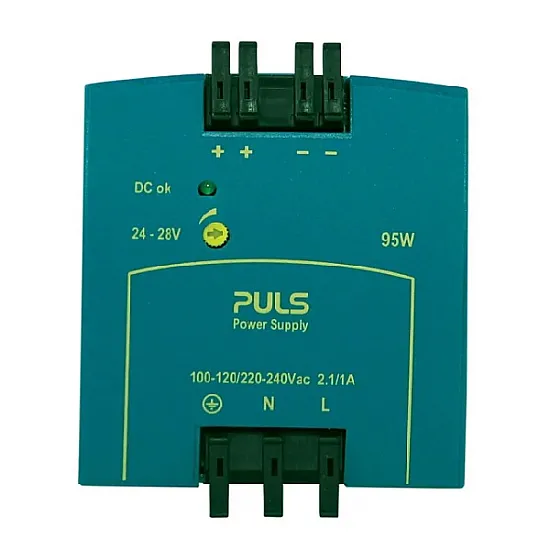

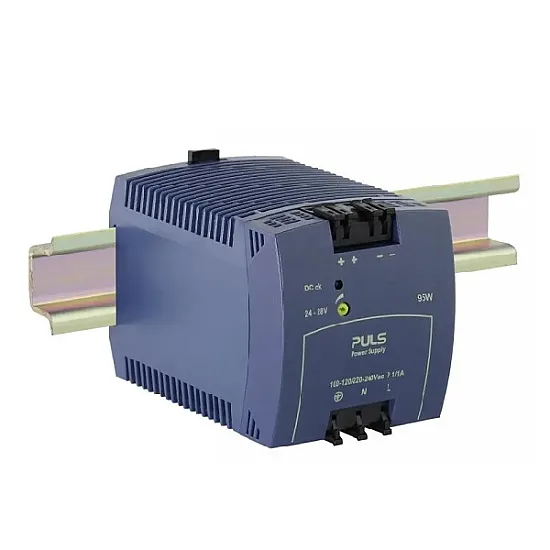

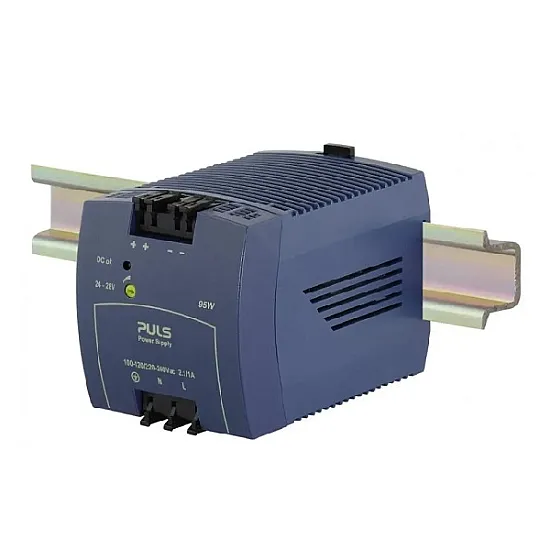

PULS ML95.100 DIN-rail Power supply

PULS ML95.100 DIN-rail Power supply
  • Model: ML95.100
$0.00
Ex Tax: $0.00

PULS ML95.100 FEATURES

  • Adjustable output voltage up to DC 24 - 28V
  • PULS Overload Design™ (high output overload capability)
  • 115/230V Auto Select Input
  • Limited Power Source, NEC class 2 and Hazardous Location Class I Div. 2
  • Mounted and connected in record time, no tools required
  • Worldwide approvals (UL, EN, CSA) for industry and office/home use
  • Tiny: WxHxD = 73 x 75 x 103mm
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

PULS ML95.100 INTRODUCTION

The ML95.100 is a DIN-rail Power supply with DC 24 - 28V / 95W Input power.

As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS ML95.100 DIN-rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the ML70.100 and ML50.111 models in the PULS DIN-Rail Power Supplies for 1-phase Systems Series.

PULS ML95.100 CERTIFICATIONS



PULS Power Supply : Input Data
Input Voltage Range AC: 85 to 264 VAC, DC: 220 to 375 VDC
Nominal Input Voltage -
Input Frequency Range 50 to 60 Hz
Input Current At 100 VAC: < 2.0A, at 220 VAC: < 0.95A
Power Factor 0.55
Crest Factor -
Inrush Current 22 to 37 A
Input Fuse Yes
PULS Power Supply : Output Data
Output Voltage Range 24 to 28 V
Nominal Output Voltage 24 VDC
Output Current 3.4 A at 28 V, 4 A at 24 V
Output Power 95 W
Power Boost -
Output Capacitance -
PULS Power Supply : Protection Features
Overload Protection Yes
Reverse Input Polarity Protection No
Over-Temperature Protection No
Input Transient Protection -
Output Transient Protection No
Short Circuit Protection Yes
Output Overvoltage Protection Yes: < 36V
PULS Power Supply : General
MTBF SN 29500: 500000 h
Connection Method Spring clamps
AC/DC OK AC/DC: Yes
LED Indicators 1 green LED
Remote ON / OFF Function -
IO-Link Interface -
PULS Power Supply : Physical Characteristics
Operating Temperature -10° to 70°C
Storage Temperature -25° to 85°C
Relative Humidity Range 5 to 95% r.H
Altitude Range -
Derating -
Dimensions 73 mm x 75 mm x 103 mm
Weight 360 g
Mounting Type DIN rail
Housing -
Standards and Certifications EU, UL 60950, E137006, UL508 LISTED, E198865, CB Scheme, Class I Div. 2
