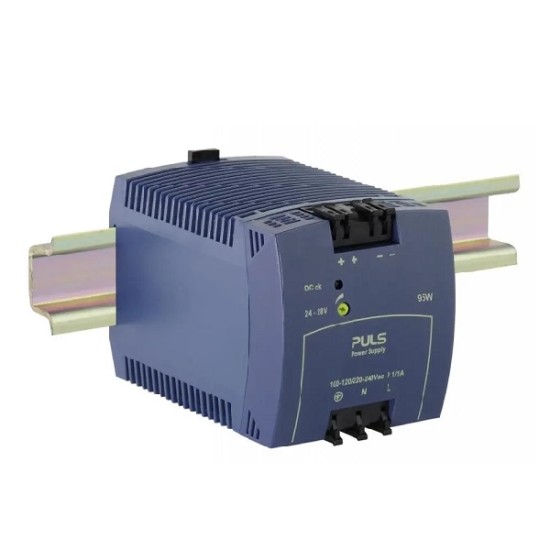

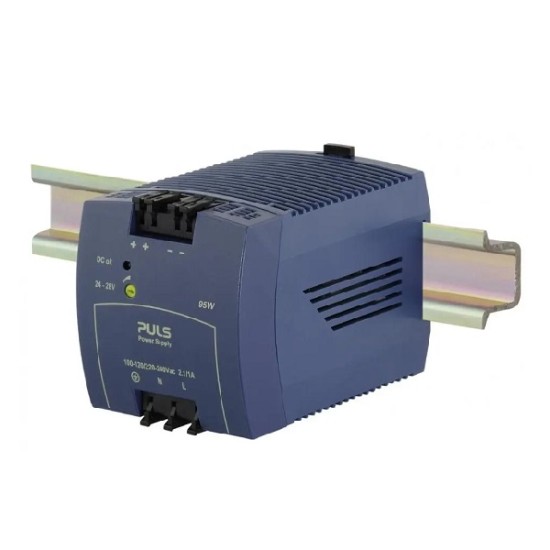

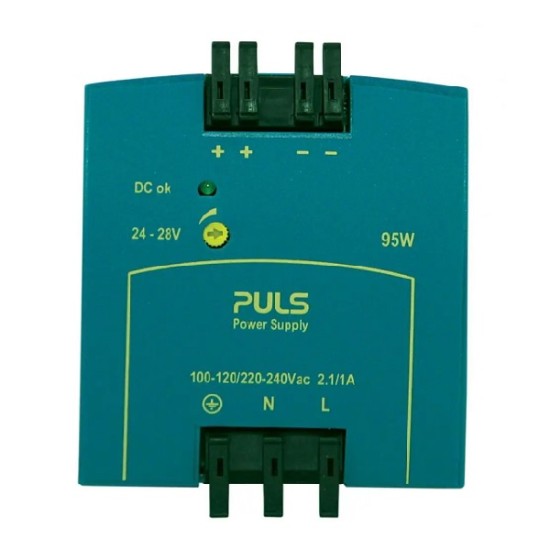

PULS ML95.100 DIN-rail Power supply
PULS ML95.100 DIN-rail Power supply
- Model: ML95.100
$0.00
Ex Tax: $0.00
PULS ML95.100 FEATURES
- Adjustable output voltage up to DC 24 - 28V
- PULS Overload Design™ (high output overload capability)
- 115/230V Auto Select Input
- Limited Power Source, NEC class 2 and Hazardous Location Class I Div. 2
- Mounted and connected in record time, no tools required
- Worldwide approvals (UL, EN, CSA) for industry and office/home use
- Tiny: WxHxD = 73 x 75 x 103mm
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
PULS ML95.100 INTRODUCTION
The ML95.100 is a DIN-rail Power supply with DC 24 - 28V / 95W Input power.
As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS ML95.100 DIN-rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the ML70.100 and ML50.111 models in the PULS DIN-Rail Power Supplies for 1-phase Systems Series.
PULS ML95.100 CERTIFICATIONS

| PULS Power Supply : Input Data | |
| Input Voltage Range | AC: 85 to 264 VAC, DC: 220 to 375 VDC |
| Nominal Input Voltage | - |
| Input Frequency Range | 50 to 60 Hz |
| Input Current | At 100 VAC: < 2.0A, at 220 VAC: < 0.95A |
| Power Factor | 0.55 |
| Crest Factor | - |
| Inrush Current | 22 to 37 A |
| Input Fuse | Yes |
| PULS Power Supply : Output Data | |
| Output Voltage Range | 24 to 28 V |
| Nominal Output Voltage | 24 VDC |
| Output Current | 3.4 A at 28 V, 4 A at 24 V |
| Output Power | 95 W |
| Power Boost | - |
| Output Capacitance | - |
| PULS Power Supply : Protection Features | |
| Overload Protection | Yes |
| Reverse Input Polarity Protection | No |
| Over-Temperature Protection | No |
| Input Transient Protection | - |
| Output Transient Protection | No |
| Short Circuit Protection | Yes |
| Output Overvoltage Protection | Yes: < 36V |
| PULS Power Supply : General | |
| MTBF | SN 29500: 500000 h |
| Connection Method | Spring clamps |
| AC/DC OK | AC/DC: Yes |
| LED Indicators | 1 green LED |
| Remote ON / OFF Function | - |
| IO-Link Interface | - |
| PULS Power Supply : Physical Characteristics | |
| Operating Temperature | -10° to 70°C |
| Storage Temperature | -25° to 85°C |
| Relative Humidity Range | 5 to 95% r.H |
| Altitude Range | - |
| Derating | - |
| Dimensions | 73 mm x 75 mm x 103 mm |
| Weight | 360 g |
| Mounting Type | DIN rail |
| Housing | - |
| Standards and Certifications | EU, UL 60950, E137006, UL508 LISTED, E198865, CB Scheme, Class I Div. 2 |
