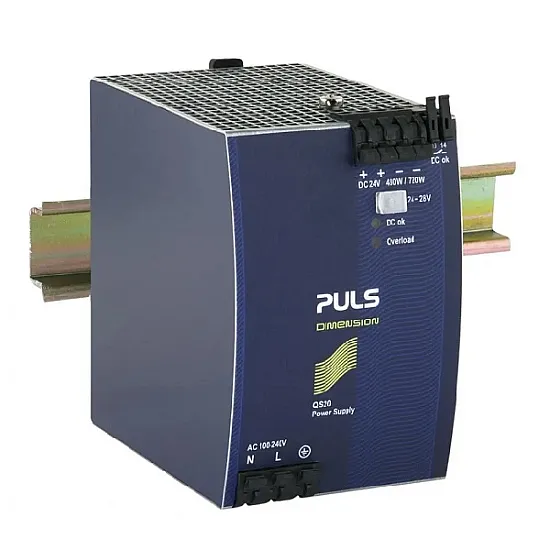

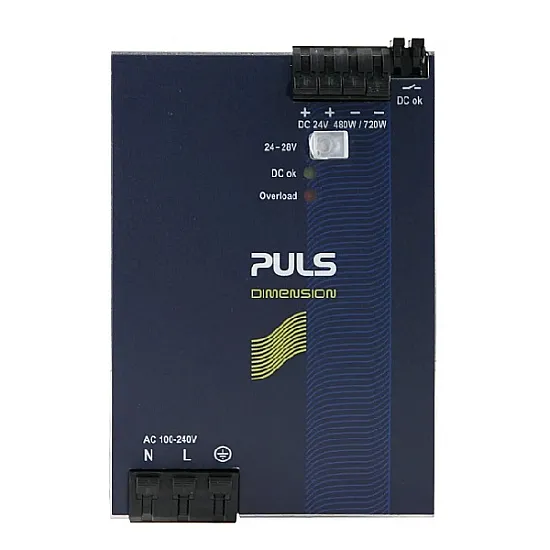

PULS QS20.244 DIN-rail Power Supply
PULS QS20.244 FEATURES
- AC 200-240V Input
- Width only 70mm
- Efficiency up to 94.5%
- Very Low No-load Losses
- 150% (720W) Peak Load Capability
- Safe HiccupPLUS Overload Mode
- Easy Fuse Tripping due to High Overload Current
- Full Power Between -25°C and +60°C
- DC-OK Relay Contact
- Quick-connect Spring-clamp Terminals
PULS QS20.244 INTRODUCTION
The most outstanding features of this Dimension QSeries DIN-rail power supply are the high efficiency and the small size, which are achieved by synchronous rectification and further novel design details.
The QS20.244 is a device for 200-240V non-public mains only. This supports regional applications and offers additional cost and space savings. If a wide-range unit with PFC is preferred, choose the QS20.241. With short-term peak power capability of 150% and built-in large-sized output capacitors, these features help start motors, charge capacitors absorb reverse energy, and often allow a unit of a lower wattage class to be used. Diagnostics are easy due to the dry DC-ok contact, a green DC-ok LED, and a red overload LED. High immunity to transients and power surges, as well as low electromagnetic emission, makes usage in nearly every environment possible. Unique quick-connect spring-clamp terminals allow a safe and fast installation, and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS QS20.244 DIN-rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the QS20.481 and QS20.361 models in the PULS DIN-Rail Power Supplies for 1-phase Systems Series.
