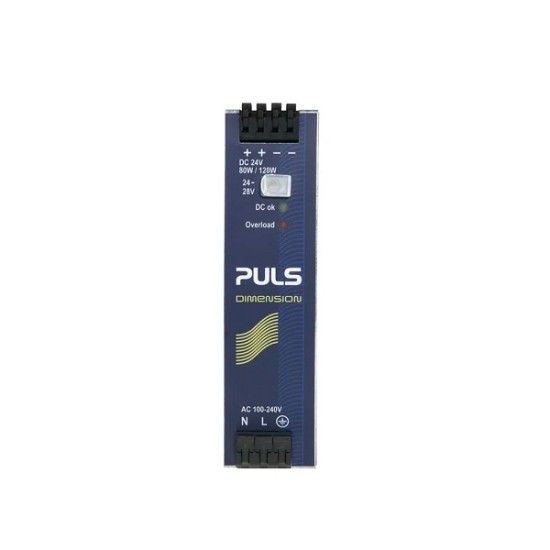

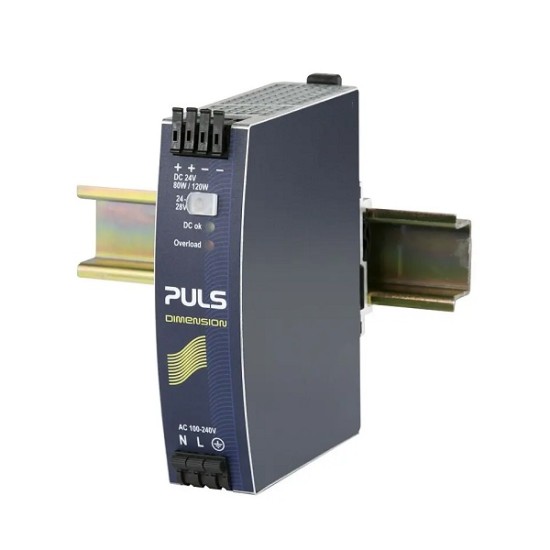

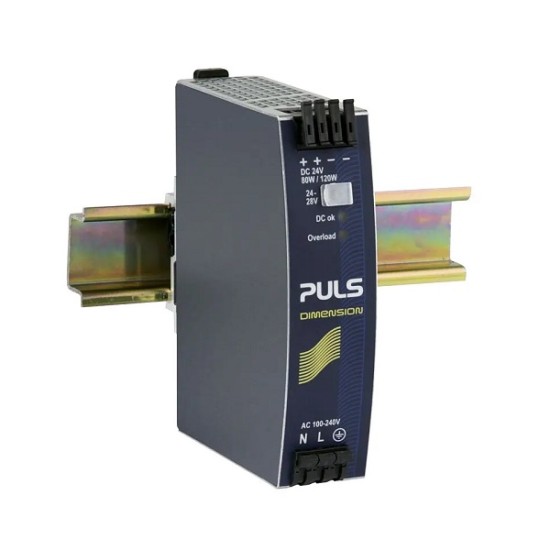

PULS QS3.241 DIN-rail Power Supply
PULS QS3.241 FEATURES
- AC 100 - 240V Wide-range Input
- Width only 32mm
- Efficiency up to 90%
- 150% (120W) Peak Load Capability
- Easy Fuse Tripping due to High Overload Current
- Negligible low Inrush Current Surge
- Short-term Operation down to 60Vac and up to 300Vac
- Full Power Between -25°C and +60°C
- Quick-connect Spring-clamp Terminals
PULS QS3.241 INTRODUCTION
The most outstanding features of this Dimension QSeries DIN-rail power supply are the high efficiency and the small size, which are achieved by synchronous rectification and further novel design details. With short-term peak power capability of 150% and built-in large-sized output capacitors, these features help start motors, charge capacitors absorb reverse energy, and often allow a unit of a lower wattage class to be used.
High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible. The integrated output power manager, a wide range input voltage design, and virtually no input inrush current make installation and usage simple. Diagnostics are easy due to the dry DC-ok contact, a green DC-ok LED, and a red overload LED. Unique quick-connect spring-clamp terminals allow a safe and fast installation, and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS QS3.241 DIN-rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the QS40.244 and QS40.241 models in the PULS DIN-Rail Power Supplies for 1-phase Systems Series.
PULS QS3.241 CERTIFICATIONS
