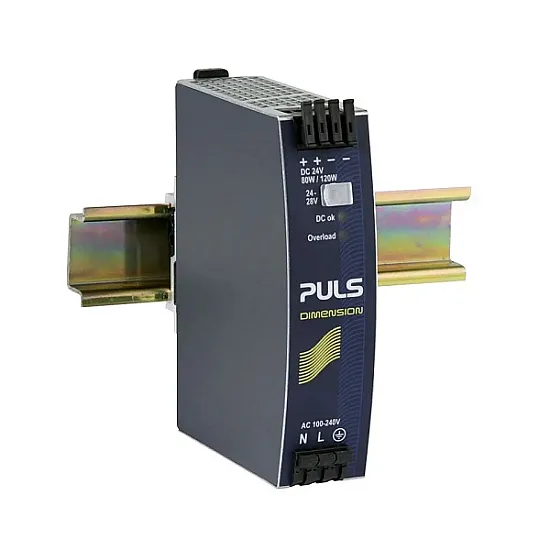

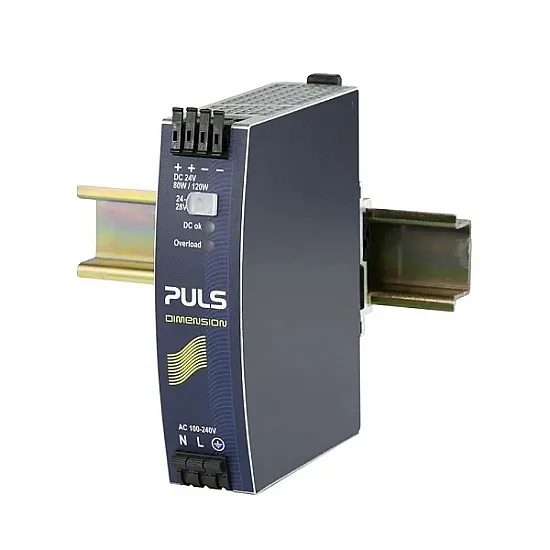

PULS QS5.241 DIN-rail Power Supply

PULS QS5.241 INTRODUCTION

The most outstanding features of this Dimension QSeries DIN-rail power supply are the high efficiency and the small size, which are achieved by synchronous rectification and further novel design details. The series is part of the Dimension family, existing alongside the lower-featured C-Series. With short-term peak power capability of 150% and built-in large-sized output capacitors, these features help start motors, charge capacitors absorb reverse energy, and often allow a unit of a lower wattage class to be used. High immunity to transients and power surges, as well as low electromagnetic emission, makes usage in nearly every environment possible.
The integrated output power manager, a wide range input voltage design, and virtually no input inrush current make installation and usage simple. Diagnostics are easy due to the dry DC-ok contact, a green DC-ok LED, and a red overload LED. Unique quick-connect spring-clamp terminals allow a safe and fast installation, and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.

As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS QS5.241 DIN-rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the QS5.241-A1 and QS40.241 models in the PULS DIN-Rail Power Supplies for 1-phase Systems Series.

PULS QS5.241 CERTIFICATIONS
