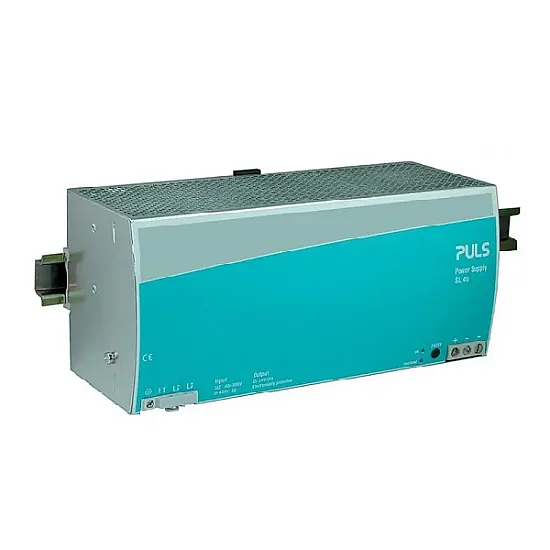

PULS SL40.300 DIN-rail Power Supply
PULS SL40.300 DIN-rail Power Supply
- Model: SL40.300
$0.00
Ex Tax: $0.00
PULS SL40.300 FEATURES
- Input: 3 AC 400 to 500V
- Output: 24 to 28V / 960W (1080W)
- No switch-off at overload
- Ideal for parallel operation
- Output for measurement and logical signals (.301)
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
PULS SL40.300 INTRODUCTION
The SL40.300 is a DIN-rail power supply with 3 AC 400 to 500V Input.
As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS SL40.300 DIN-rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the SL40.301 and SL20.303 models in the PULS DIN-rail Power Supplies for 3-phase Systems Series.
PULS SL40.300 CERTIFICATIONS

| PULS Power Supply : Input Data | |
| Input Voltage Range | AC: 340 to 575 VAC |
| Nominal Input Voltage | - |
| Input Frequency Range | 47 to 63 Hz |
| Input Current | 3.0 A |
| Power Factor | - |
| Crest Factor | - |
| Inrush Current | < 30 A |
| Input Fuse | No |
| PULS Power Supply : Output Data | |
| Output Voltage Range | 24 to 28 V |
| Nominal Output Voltage | 24 VDC |
| Output Current | 34.3 A at 28 V, 40 A at 24 V |
| Output Power | 960 W |
| Power Boost | - |
| Output Capacitance | - |
| PULS Power Supply : Protection Features | |
| Overload Protection | Yes |
| Reverse Input Polarity Protection | No |
| Over-Temperature Protection | No |
| Input Transient Protection | No |
| Output Transient Protection | No |
| Short Circuit Protection | Yes |
| Output Overvoltage Protection | Yes: typ. 32V |
| PULS Power Supply : General | |
| MTBF | SN 29500: 305,000 h |
| Connection Method | Screw terminals |
| AC/DC OK | AC/DC: Yes |
| LED Indicators | 1 green LED |
| Remote ON / OFF Function | - |
| IO-Link Interface | - |
| PULS Power Supply : Physical Characteristics | |
| Operating Temperature | 0° to 70°C |
| Storage Temperature | -25° to 85°C |
| Relative Humidity Range | 5 to 95% r.H |
| Altitude Range | - |
| Derating | Between +60 to +70 °C: typ. 24 W/K |
| Dimensions | 275 mm x 124 mm x 117 mm |
| Weight | 3300 g |
| Mounting Type | DIN rail |
| Housing | Sealed metal |
| Standards and Certifications | IEC 60950, UL 508, UL 60950, EMC |
