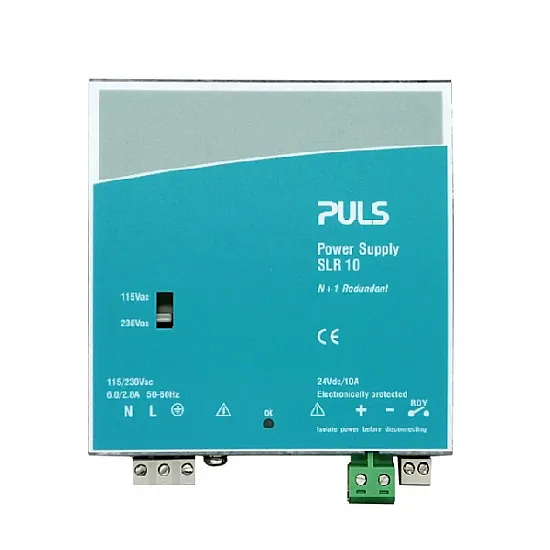

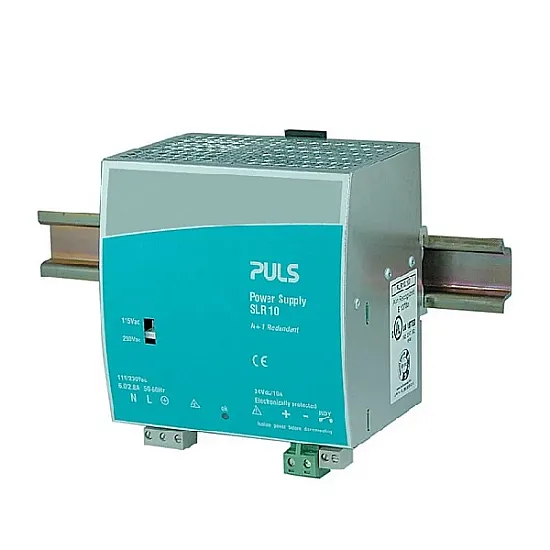

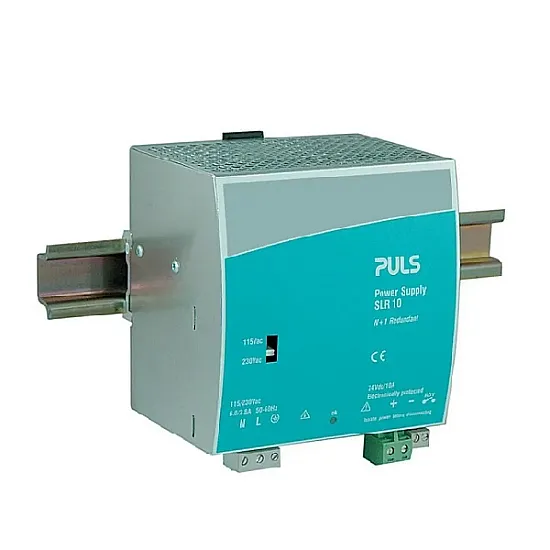

PULS SLR10.100 Power Supply

PULS SLR10.100 Power Supply
  • Model: SLR10.100
$0.00
Ex Tax: $0.00

PULS SLR10.100 FEATURES

  • Input: AC 230V/115V, DC 240-375 V
  • Output: 24 V/10 A
  • High overload current, no switch-off
  • N+1 redundancy, RDY relay contact
  • Robust mechanics and EMC
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

PULS SLR10.100 INTRODUCTION

The SLR10.100 is a power supply with AC 230V/115V, DC 240 - 375V Input.

As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS SLR10.100 Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the SLR2.100 and SLR5.100 models in the PULS Power Supply With Integrated Decoupling Function Series.

PULS SLR10.100 CERTIFICATIONS



PULS Power Supply : Input Data
Input Voltage Range AC 1: 85 to 132 VAC, AC 2: 176 to 264 VAC, DC: 240 to 375 VDC
Nominal Input Voltage -
Input Frequency Range 47 to 63 Hz
Input Current Switch in 115V position: 6A, switch in 230V position: 2.8A
Power Factor -
Crest Factor -
Inrush Current at 264 VAC: typ. < 30 A
Input Fuse No
PULS Power Supply : Output Data
Output Voltage Range -
Nominal Output Voltage 24 VDC
Output Current 10 A at 24 V
Output Power 240 W
Power Boost -
Output Capacitance -
PULS Power Supply : Protection Features
Overload Protection Yes
Reverse Input Polarity Protection No
Over-Temperature Protection No
Input Transient Protection No
Output Transient Protection No
Short Circuit Protection Yes
Output Overvoltage Protection Yes: typ. 35 V
PULS Power Supply : General
MTBF SN29500: 390000 h
Connection Method Plug connector
AC/DC OK AC/DC: Yes
LED Indicators 1 green LED
Remote ON / OFF Function -
IO-Link Interface -
PULS Power Supply : Physical Characteristics
Operating Temperature 0° to 70°C
Storage Temperature -25° to 85°C
Relative Humidity Range -
Altitude Range -
Derating Between+60° to +70°C: typ. 12 W/K
Dimensions 120 mm x 124 mm x 102 mm
Weight 980 g
Mounting Type DIN rail
Housing Sealed metal
Standards and Certifications IEC60950, UL508, UL60950, EMC
