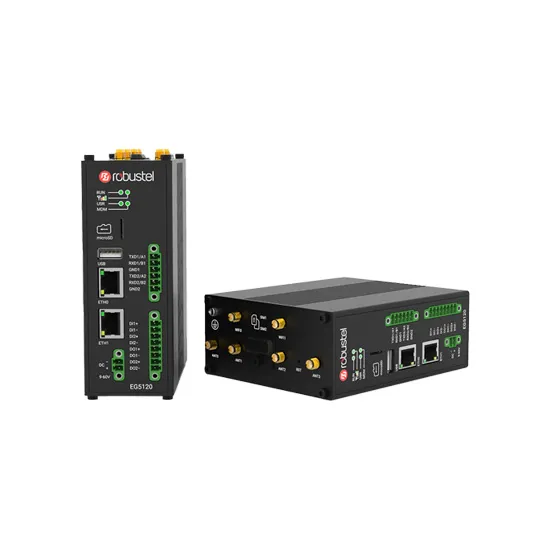

ROBUSTEL EG5120-A2CAZ-5G-A25GL Industrial Edge Computing Gateway




- Model: EG5120-A2CAZ-5G-A25GL
ROBUSTEL EG5120-A2CAZ-5G-A25GL FEATURES
- Highly stable 5G/4G/3G/2G cellular connectivity with global band coverage
- High-performance compute engine with 1.6 GHz CPU + 16 GB eMMC Flash for running complex applications
- ‘Docker’ containerization supported
- Cutting-edge (Release 16) 5G interface
- Microsoft Azure loT and AWS loT Greengrass qualified
- 802.11ac Wi-Fi (optional) supporting AP and Client modes
- Bluetooth (optional), Bluetooth 5.2 compliant
- 2 x RS232/RS485 (software configurable) ports for connection to industrial/legacy devices
- 2 x DI & 2 x DO for simple monitoring and control
- Dual SIM card slots for redundant communications
- Wide Operating Temperature range for industrial applications
- Full Modbus TCP and Modbus RTU support including MQTT transfer to mainstream cloud platforms
- Supports C, C++, Java, Python, Node.js, etc. for users to develop their applications
- More than 50,000 applications from the Debian repository are currently available
- Wire guard/IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN + more VPN options
- Supports RCMS – Robustel’s router/gateway management platform for effective management of large estates of devices




ROBUSTEL EG5120-A2CAZ-5G-A25GL INTRODUCTION
Robustel’s EG5120 is a new generation of industrial edge computing gateway, supporting global 5G/4G/3G/2G networks for cellular backhaul, with a fully-fledged Debian 11(bullseye) based operating system able to support thousands of existing or new ARMv8 (Raspberry Pi compatible) based applications. EG5120 supports Docker for easy deployment of applications and benefits from ‘RobustOS Pro’ – Robustel’s latest router OS with enhanced cybersecurity, advanced GUI, and a myriad of software features including VPNs, Smart Roaming, SMS remote control, and more.
With a quad-core 1.6 GHz Cortex A53 CPU and an integrated NPU of 2.3 TOPS that greatly accelerate machine learning inference, EG5120 will take the computing power to the next level, best for edge computing and edge AI applications, can also be used as a combination of cellular router + embedded PC in all the industrial filed.
RCMS is Robustel’s free router monitoring service that is fully compatible with the EG5120. It allows customers to see a location overview of their routers quickly and simply on a map plus features such as data usage, signal strength, current network and much more can then be viewed on a per router/gateway basis. Over-the-air updates are supported for Firmware, router configuration, and Apps serving as essential “insurance” if anything is not quite right during deployment.
As an Authorized Distributor of ROBUSTEL, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy ROBUSTEL EG5120-A2CAZ-5G-A25GL Industrial Edge Computing Gateway online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the EG5120-A2AAZ-5G-A25GL and EG5120-A2CAZ-4L-A06GL models in the ROBUSTEL EG5120 Series.
ROBUSTEL EG5120-A2CAZ-5G-A25GL CERTIFICATIONS
3G Modem : Interface | |
SIM card slot | 2 x Mini SIM (2FF) |
WAN | 2 x RJ45, 10/100/1000Mbps, compliance with 1000BAST-T, LAN or WAN |
LAN | 2 x RJ45, 10/100/1000Mbps, compliance with 1000BAST-T, LAN or WAN |
USB | 1 x USB 3.0 (host), Type A, 5V 900mA |
Digital Input and Output | 2 x DI + 2 x DO, wet contact |
Serial port | 2 x RS232/RS485 (software configurable) |
Alert Output | - |
Cellular Standards | 4G, 5G |
Band Options | - |
Cellular Antenna Connectors | 4G: 2 Antennas, 5G: 4 Antennas |
WLAN Standards | 802.11 a/b/g/n/ac, 2 x 2 MIMO, supports AP and Client modes |
WLAN Antenna Connector | RP- SMA-K |
GPS Antenna Connector | SMA-K |
3G Modem : Radio specifications | |
Radio Connection type | - |
Maximum data transfer speed of 2G | - |
Maximum data transfer speed of 3G | - |
Maximum data transfer speed of 4G | - |
WiFi Radio Frequency | No |
3G Modem : Software Specifications | |
VPN | IPsec, OpenVPN, GRE |
Firewall | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
Management | - |
Routing Redundancy | - |
Time Management | - |
3G Modem : Standards and protocols | |
Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, VLAN, HTTPs, DNS, ARP, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc. |
3G Modem : Features and capabilities | |
Send and receive SMS | Yes |
3G Modem : Security | |
Security and Encryption | WEP 64-bit and 128-bit encryption with H/W TKIP processing WPA/WPA2 (Wi-Fi Protected Access) AES-CCMP hardware implementation as part of 802.11i security standard |
Authentication | - |
3G Modem : Power Requirements | |
Power Connector | 2-pin 3.5 mm terminal block with lock |
Power Consumption (Output Adapter) | Idle: 5W, Data Link: 20W (peak) |
Input Voltage | 9V to 60V DC |
POE Support | - |
Input Current | - |
Reverse Polarity Protection | - |
3G Modem : Buttons | |
Power button | No |
Reset | 1 x RST |
3G Modem : LED Indicators | |
MTBF | - |
Operating mode | External |
LED Indicators | 1 x RUN, 1 x MDM, 1 x USR, 1 x Signal |
3G Modem : Physical Characteristics | |
Dimensions | 49 x 105 x 128 mm |
Installations | Desktop, wall mounting, and 35 mm DIN rail mounting |
Housing | Metal |
Weight | 567 g |
Operating Temperature | -40 to 70 °C |
Storage Humidity | - |
Storage Temperature | -40 to 85 °C |
Type of Use | Environmental |
Standards and Certifications | CE, RCM, RoHS2.0 |
