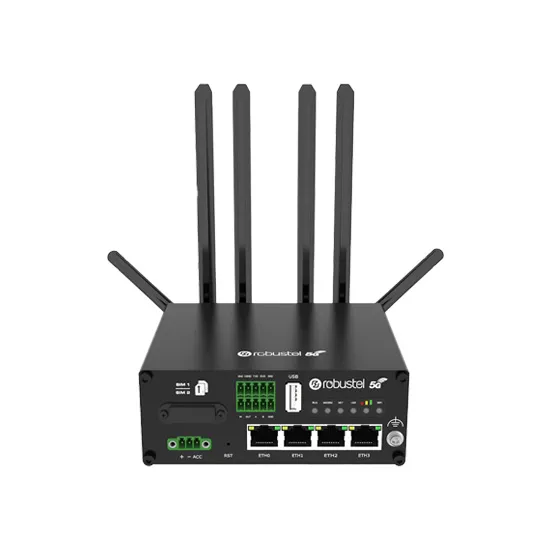

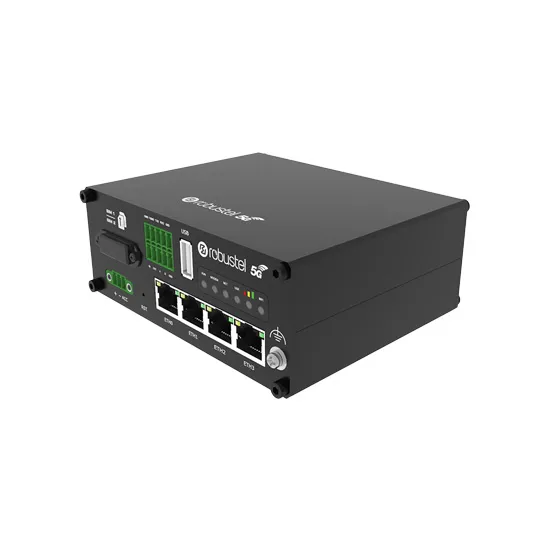

ROBUSTEL R5020-5G-A09GL-A 5G IoT Router
- Model: R5020-5G-A09GL-A
ROBUSTEL R5020-5G-A09GL-A FEATURES
- ACC input voltage
- E-Mark, FCC, CE, IC, RCM, UKCA Certifications
- Global 5G/4G/3G cellular connections
- Supports Ethernet, Wi-Fi, and 4G/5G internet with auto-failover
- Very cost-effective industrial 5G router solution
- Fully programmable Operating System with well-documented SDK
- Multiple VPN options are available including DMVPN & IPSEC
- GNSS, ignition sense & E-mark make R5020 ideal for vehicles
- Free cloud management platform – RCMS
- Robust metal enclosure with small footprint – DIN-rail + wall mount options
ROBUSTEL R5020-5G-A09GL-A INTRODUCTION
The R5020 is Robustel’s first 5G-capable router supporting global 5G, 4G, and 3G bands in a compact industrial form. It enables rapid deployment of high-speed IoT applications in verticals as diverse as Transportation, Enterprise Connectivity, and Digital Signage.
The R5020 leverages the tried-and-tested high-performance CPU platform and RobustOS – a mature and stable Operating System developed in-house by Robustel. R5020 is compatible with 3GPP Release 15 and is designed for use by the following applications:
In-vehicle applications: Whether it is passenger WiFi, CCTV debrief, ticketing, or a similar “onboard” requirement, the R5020 offers a simple and effective solution to increase internet speeds and future-proof current installations. The R5020 has achieved E-Mark certification for in-vehicle use and supports GNSS positioning. A version with vehicle ignition sensing is available to protect vehicle batteries when the engine is off.
As an Authorized Distributor of ROBUSTEL, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy ROBUSTEL R5020-5G-A09GL-A 5G IoT Router online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the R5020-5G-A09GL-B model in the ROBUSTEL R5020 5G IoT Router Series.
ROBUSTEL R5020-5G-A09GL-A CERTIFICATIONS

| 3G Modem : Interface | |
| SIM card slot | 2 Mini SIM (2FF) |
| Ethernet Ports | 4 x 10/100/1000 Mbps, 4 LAN by default, can be configured as 1 WAN + 3 LAN |
| USB | 1 x USB 2.0 Host; 5 V/500 mA |
| Digital Input and Output | 1 x DI + 1 x DO, wet contact |
| Serial port | 1 x RS232 + 1 x RS485 |
| Alert Output | - |
| Cellular Standards | - |
| Band Options | 5G: NR NSA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79, NR SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79 |
| Cellular Antenna Connectors | SMA-K |
| WLAN Standards | 802.11 a/b/g/n/ac, 2 x 2 MIMO, supports AP and Client modes |
| WLAN Antenna Connector | RP-SMA-K |
| GPS Antenna Connector | SMA-K |
| 3G Modem : Radio specifications | |
| Radio Connection type | No |
| Maximum data transfer speed of 2G | - |
| Maximum data transfer speed of 3G | - |
| Maximum data transfer speed of 4G | - |
| WiFi Radio Frequency | No |
| 3G Modem : Software Specifications | |
| VPN | IPsec, OpenVPN, GRE, Wireguard |
| Firewall | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Management | Web, CLI, SMS |
| Routing Redundancy | - |
| Time Management | - |
| 3G Modem : General | |
| LED Indicators | 1 x RUN, 1 x Modem, 1 x USR, 1 x RSSI, 1 x NET, 1 x WiFi |
| 3G Modem : Standards and protocols | |
| Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, HTTPs, ARP, VLAN, SSH2, DDNS, etc. |
| 3G Modem : Features and capabilities | |
| Send and receive SMS | Yes |
| 3G Modem : Security | |
| Security and Encryption | WPA, WPA2, WEP, WPA3, AES, TKIP, WEP64 |
| Authentication | - |
| 3G Modem : Power Requirements | |
| Power Connector | 3-pin 3.5 mm female socket with lock |
| Power Consumption (Output Adapter) | Idle: 5.5 W@12 V, Max: 12.2 W@12 V |
| Input Voltage | POE-PD version: 12/24V DC (9~36V DC in), 42.5~57V (POE-PD@ETH0) ACC version: 12/24V DC (10~30V DC in) |
| POE Support | No |
| Input Current | - |
| Reverse Polarity Protection | - |
| 3G Modem : Buttons | |
| Power button | No |
| Reset | 1 x RST |
| 3G Modem : LED Indicators | |
| MTBF | - |
| Operating mode | Built-in |
| 3G Modem : Physical Characteristics | |
| Dimensions | 125 x 100 x 48 mm |
| Installations | Desktop, wall mounting, and DIN rail mounting |
| Housing | Aluminum |
| Weight | 500 g |
| Operating Temperature | Normal operation: -20 to 55°C, Extended operation: -25 to 70°C |
| Storage Humidity | - |
| Storage Temperature | -40 to 85°C |
| Type of Use | Environmental |
| Standards and Certifications | EMI, EMS, E-Mark, FCC, CE, IC, RCM, UKCA, CB, TDRA, NTC |
