MOXA Durable Rugged Industrial Panel Computers for Extreme Outdoor and Hazardous Environments
Durable Panel PCs for Demanding Outdoor and Hazardous Settings
Operating in harsh indoor and outdoor conditions comes with a range of obstacles, such as extreme temperatures—from intense heat to icy cold—alongside exposure to dust, water, and even explosive atmospheres. To ensure secure and efficient control and monitoring of industrial processes in these challenging environments, Moxa MPC-3000 Series panel PCs provide rugged, versatile solutions tailored for applications in oil and gas, marine, and outdoor settings.

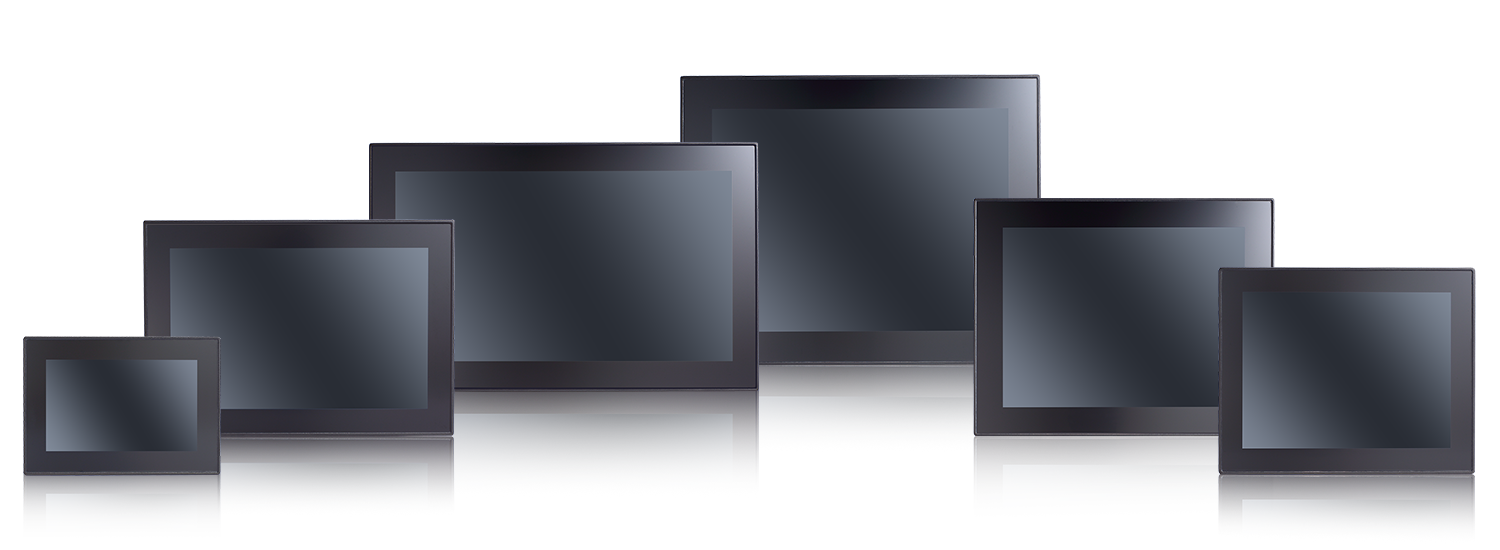

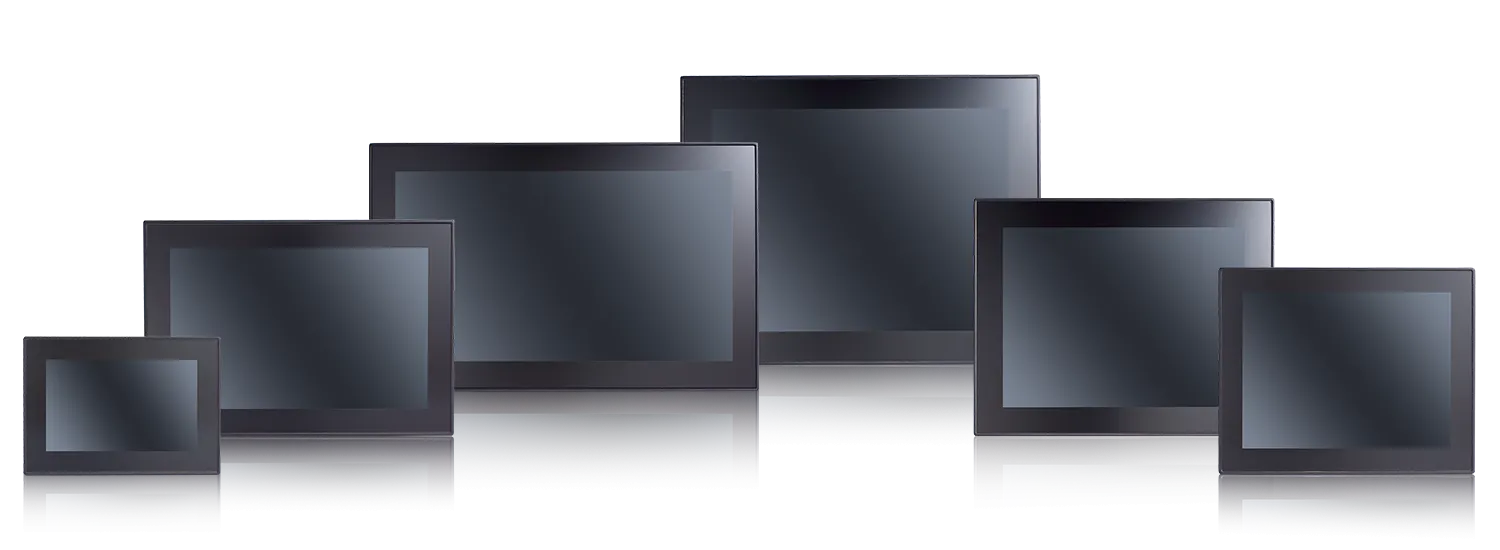

Equipped with the Intel Atom® x6000E processor, the MPC-3000 series includes six distinct models featuring display sizes from 7 to 15.6 inches. These panel computers are specifically designed to perform reliably in tough conditions, boosting efficiency and operational stability. They also hold a comprehensive set of industrial certifications, such as CID2, IECEx Zone 2, ATEX Zone 2, and marine-specific standards like DNV, IEC 60945, and IACS E10.
Why Moxa?
Industrial-Grade Durability for Dependable Performance
The MPC-3000 panel PCs are designed with a fanless design and glove-friendly multi-touch screens. Featuring an IP66-rated metal enclosure and an operating temperature range of -30 to 60°C, these rugged devices are ideal for use in demanding outdoor and hazardous environments.
Certified for Industrial Safety and Reliability
With certifications including CID2, ATEX, IECEx, and DNV, the MPC-3000 panel PCs adhere to strict industry standards, ensuring their suitability for a wide variety of industrial applications.
Effortless Maintenance Through Modular Design
The MPC-3000 panel PCs feature a modular structure that minimizes cabling to offer a streamlined, cable-free design on the front and rear panels. This simplifies maintenance processes, reduces downtime, and improves overall operational efficiency.
Key Features
Built for Extreme Conditions
Discover the robust capabilities of MPC-3000 panel computers, purpose-built for industrial automation and monitoring in the harshest environments. Check out this video to learn about their standout features, including superior screen visibility, advanced touchscreen responsiveness, and a modular design that streamlines maintenance.
Applications
The new MPC-3000 panel computers are specifically designed to excel in the most demanding and challenging environments across various industries. With a glove-friendly advanced touchscreen, a broad operating temperature range, and an IP66-rated enclosure, they provide safe and efficient monitoring and control in explosive atmospheres at drilling rigs, making them ideal for oil and gas applications.
These panel PCs are DNV-certified, ensuring reliable operation of alarm and monitoring systems in marine vessel engine rooms. Additionally, the MPC-3000 panel computers deliver dependable performance for outdoor use, such as remote monitoring and data collection at solar power plants and EV charging stations. Their sunlight-readable displays and ability to operate across a wide temperature range make them perfectly suited for these applications.
Industrial Panel Computers
| MPC-3000 Series |
|---|
| CPU |
| Ethernet Ports |
| Serial Ports |
| USB 3.0 |
| Light Intensity (Brightness) |
| Panel Size |
| Pixels |
| Touch Type |
| Input Voltage |
| IP Rating |
| Operating Temperature |
| Standards and Certifications |
|
E2 models: Intel Atom® x6211E Elkhart Lake (dual-core, 1.30
GHz) E4 models: Intel Atom® x6425E Elkhart Lake (quad-core, 2.0 GHz) |
|||||
| 2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) | |||||
| 2 x RS-232/422/485 ports (software-selectable, DB9 male connector) | |||||
| 2 x USB 3.0 hosts (type-A connector) | |||||
| 400 / 1000 nits | |||||

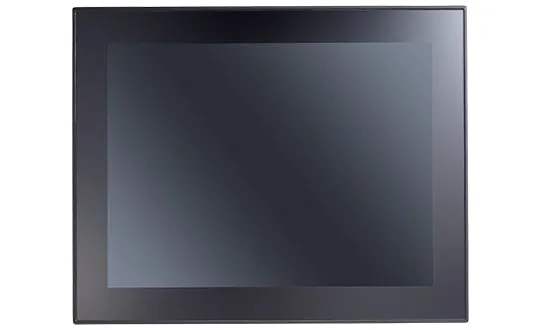

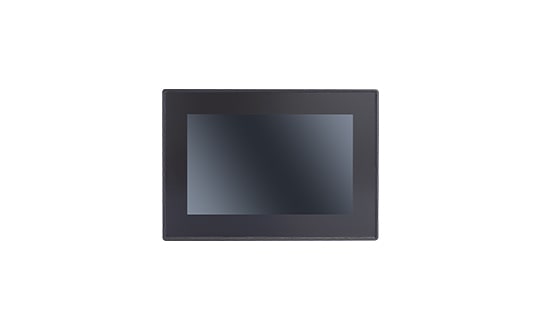

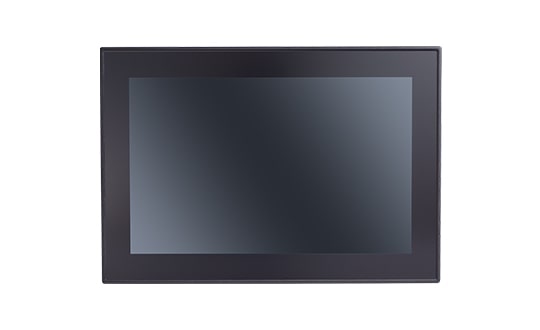

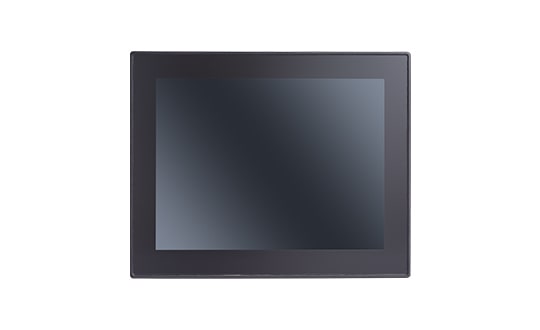

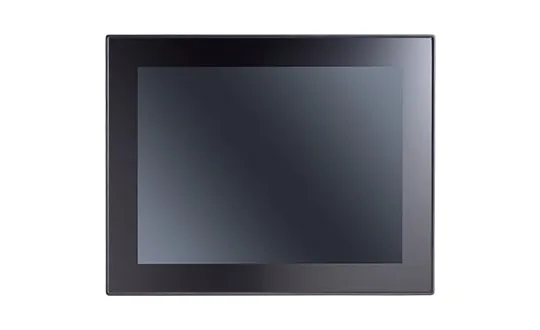

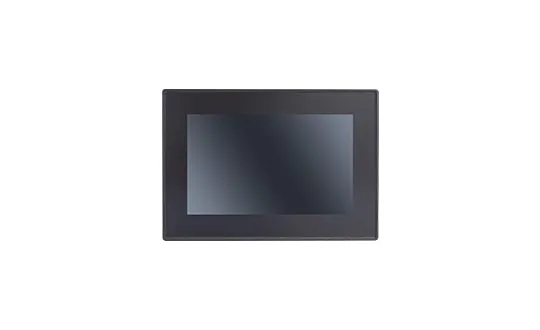

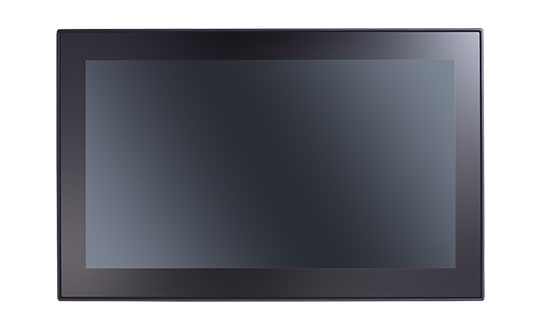

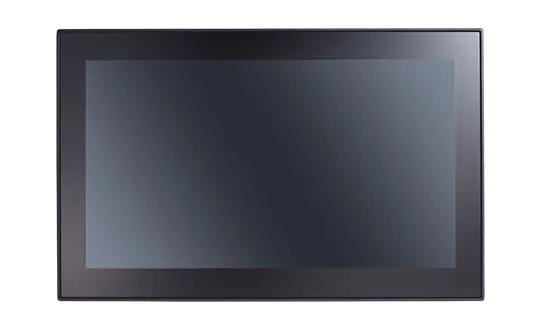

| 7 in (5:3) | 10.4 in (4:3) | 12.1 in (4:3) | 12.1 in (16:10) | 15 in (4:3) | 15.6 in (16:9) |
| 800 x 480 | 1024 x 768 | 1024 x 768 | 1280 x 800 | 1024 x 768 | 1920 x 1080 |
| Projective capacitive (PCAP) touchscreen | |||||
| 12/24 VDC | |||||
| IP66 (front), IP20 (rear) | |||||
| -30 to 60°C (-22 to 140°F) | |||||
|
CID2, ATEX Zone 2, IECEx Zone 2, DNV-CG-0339, IEC 60945, IACS E10,
IEC 62368-1, UL 62368-1, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-61 |
|||||
1 Certification processes are underway.
"For more information, please feel free to contact us at Sales@manuauto.com ."
