Made to Last, Made for You: MOXA New-gen x86 Industrial Computers

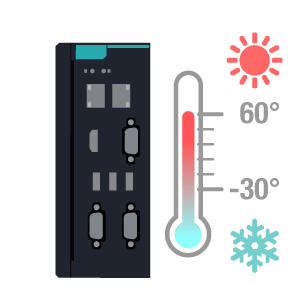

Moxa introduces a new generation of BXP, DRP, and RKP series industrial computers specifically designed to facilitate rapid system development with reliable, adaptable, and cost-effective computing solutions. The industrial computers are based on a pre-formulated configure-to-order architecture, making it easy to meet various system development and integration requirements. Their wide-temperature design and fanless operation ensure stable performance even in harsh environments.

Key Features

Compact Size
Easily fit in space-limited applications
for failure

Reliable Serial Communications
Support higher baudrate
for better connectivity

Multiple OS Options
Supports multiple Windows and Linux
OSes

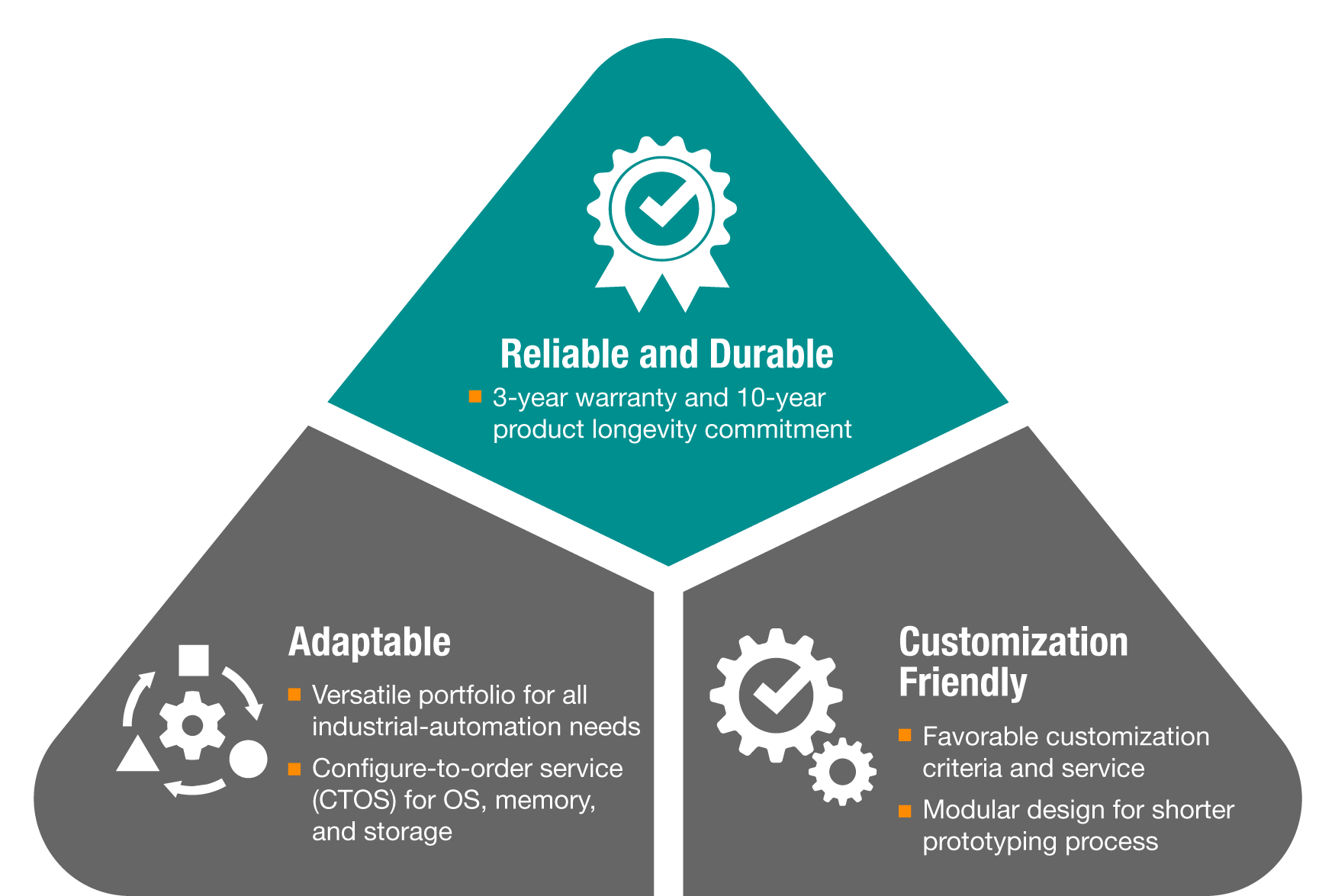

Modular Design
Shorter prototyping and customization process
for faster time to market

Fanless Design
Robust thermal design for efficient
heat dissipation

Simple Steps to Your Best-fit Solution

* Images and drivers for Windows 10 IoT Enterprise LTSC 2021 (64-bit) and Windows 11 Professional 2022 (64-bit)

** Only support drivers for Debian 11 (kernel 5.10), Ubuntu 22.04 LTS (kernel 5.15), and RHEL 9 (kernel 5.14)

Base Model
Base + 8 COM
Base + 2 LAN / 3 COM
Base + 8 LAN

Intel Atom Dual-core
Intel Atom Quad-core
Intel Celeron
Intel Core i5
Intel Core i7

*This is a 3D simulation of a model. Refer to the product page for an actual image of the models or contact our sales team.

Get A Quote

First Name

Last Name

Your Email

Company

Phone Number

Industry

Country

Product Interest

Comments

I have read and agree to the Privacy Policy

Elevate Reliability With Industrial-grade Testing

Lifetime Testing

Burn-in and NCC testing based on stricter criteria for verification of product lifetime

EMC Testing

EN 55032/35 certification for uninterrupted performance

Shock and Vibration Resistance Testing

IEC 60028-2-27 and IEC 60028-2-64 certifications to guaranty resistance to shock and vibration during transport and operations

ISTA Package Testing

ISTA 1A testing to guarantee the shock-absorbing and protection capabilities of the product package

A New Generation of x86 Industrial Computers

Quickly expand your business with our reliable and adaptable x86 Industrial computers, BXP, DRP, and RKP Series that are specifically designed to facilitate rapid system development with reliable, adaptable, and cost-effective computing solutions.

Uncompromised Excellence With Our x86 Industrial Computers

Learn about the exciting new possibilities for your industrial applications. Join us to unbox our latest x86 industrial computers in just a few minutes.

Achieve Reliable Data Connectivity for Diverse Industrial Automation Applications

Factory Automation

Equipping RMS With M2M Gateways for Higher PCB Yields

To eliminate data silos across their manufacturing processes, a PCB manufacturer asked their solution provider to develop a gateway-based solution with a Recipe Management System (RMS) as a centralized data library to improve PCB production through real-time data collection and analysis.

Retail Automation

Reliable POS Systems for Gas Stations

POS systems are critical for gas stations to maintain continuous operations. A state-owned gas station operator wanted to retrofit their POS systems to enable seamless operations and reduce the time required for troubleshooting issues.

Transportation Automation

Automated Fare-collection Systems for Metro Transit Systems

Banking on their long-term partnership with Moxa, a metro rail company in Asia contacted Moxa for computing solutions to retrofit their automated fare collection (AFC) system for improving system flexibility and reliability at busy metro stations.

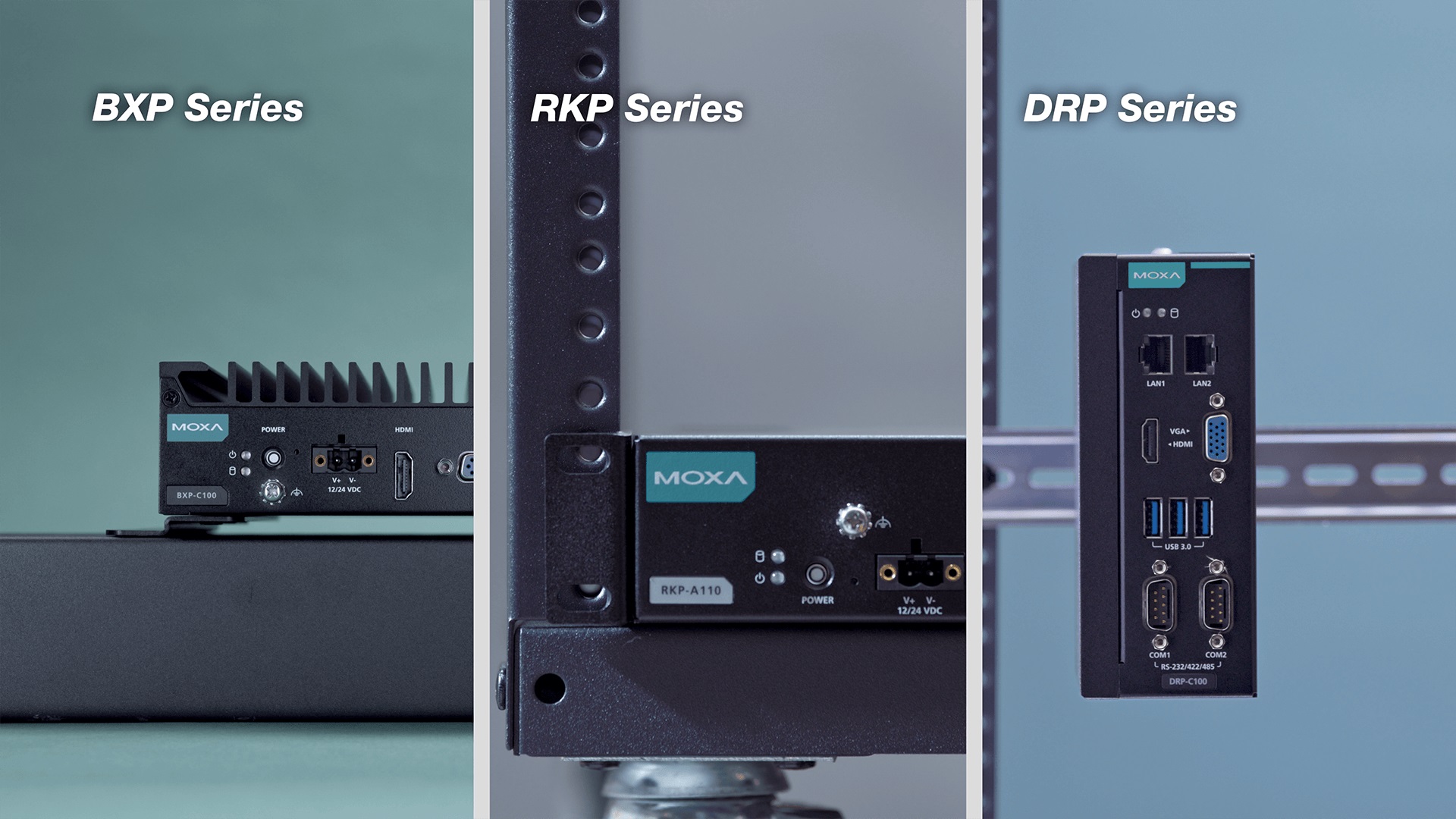

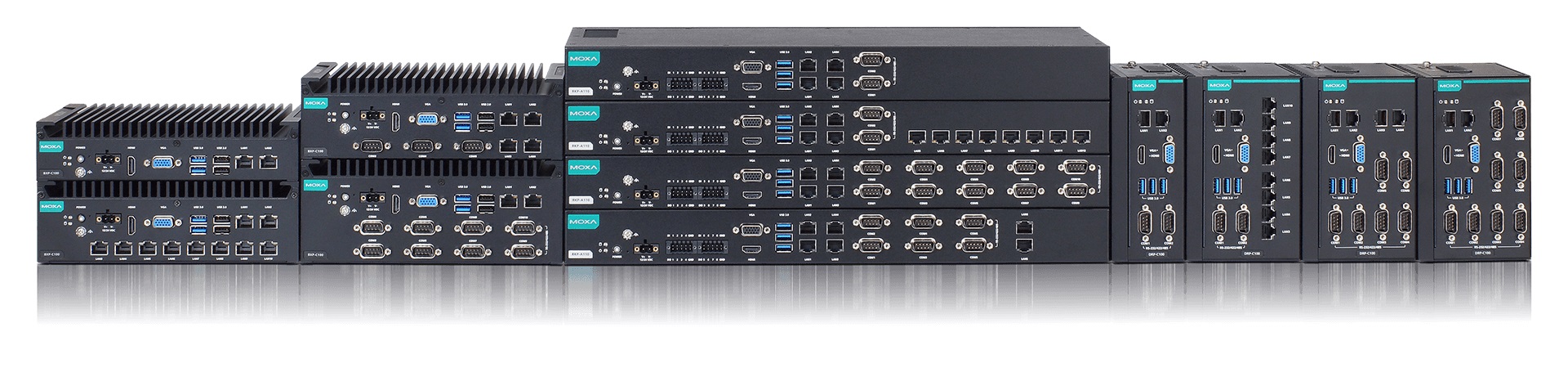

BXP, DRP, and RKP Portfolio of Industrial Computers

Form Factor
Series
CPU
Video Output
LAN Ports
Serial Ports
USB Ports
DI/Os
Memory Options
Storage Options
OS Options

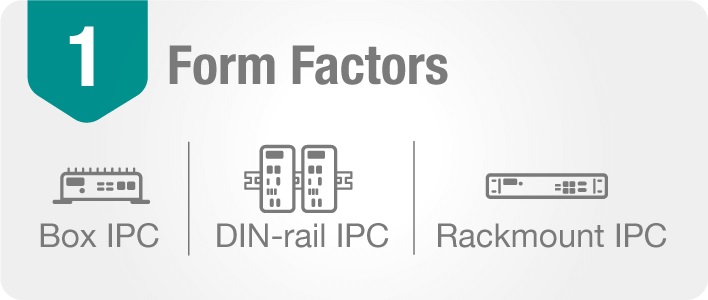

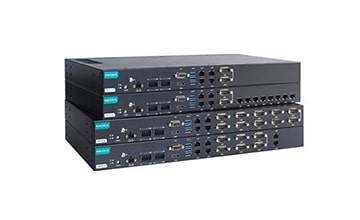

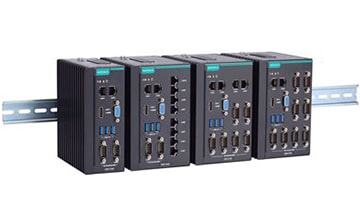

Box Computers		DIN-rail Computers		Rackmount Computers

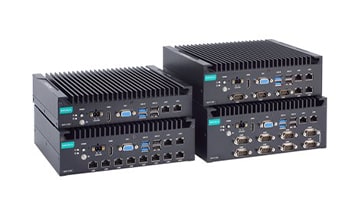

BXP-C100 Series	BXP-A100 Series	DRP-C100 Series	DRP-A100 Series	RKP-C110 Series	RKP-A110 Series
11th Gen Intel® Core™ - i7-1185G7E - i5-1145G7E Intel® Celeron® 6305E	Intel Atom® Quad-core x6425E Dual-core x6211E	11th Gen Intel® Core™ - i7-1185G7E - i5-1145G7E Intel® Celeron® 6305E	Intel Atom® Quad-core x6425E Dual-core x6211E	11th Gen Intel® Core™ - i7-1185G7E - i5-1145G7E Intel® Celeron® 6305E	Intel Atom® Quad-core x6425E Dual-core x6211E
1 HDMI, 1 VGA
Up to 10		Up to 10		Up to 12
Up to 10		Up to 8		Up to 10
6 (2 USB 3.0, 4 USB 2.0)		3 USB 3.0		3 USB 3.0
4 DIs, 4 DOs		-		8 DIs, 8 DOs

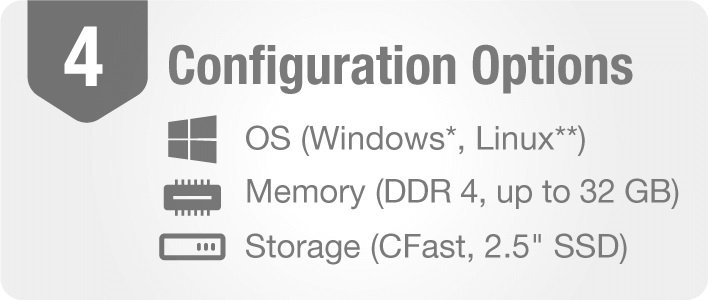

8 GB (pre-installed), 16 GB, up to 32 GB DDR4
CFast: 64 GB, 128 GB, 256 GB, 512 GB, 1 TB				2.5”SSD: 64 GB, 128 GB, 256 GB, 512 GB, 1 TB
Windows 10 IoT Enterprise LTSC 2021 (64-bit) Windows 11 Professional 2022 (64-bit)
