Comparing Moxa BXP-A101 and BXP-C101 Compact Fanless Industrial Computers
The BXP-A101 and BXP-C101 Series are fanless, compact x86 computers offered in wall-mount and DIN-rail versions, designed to run reliably across a -30 to 70°C temperature range. Their ruggedized construction suits demanding industrial environments and a broad set of field applications.
-
Compact Footprint
A small chassis and flexible mounting let the computer fit inside almost any cabinet, while the single-motherboard architecture makes maintenance and expansion straightforward.
-
Engineered for Longevity
The one-piece die-cast IPC chassis is built to survive vibration and shock, and to stay in continuous operation at the edge for years.
-

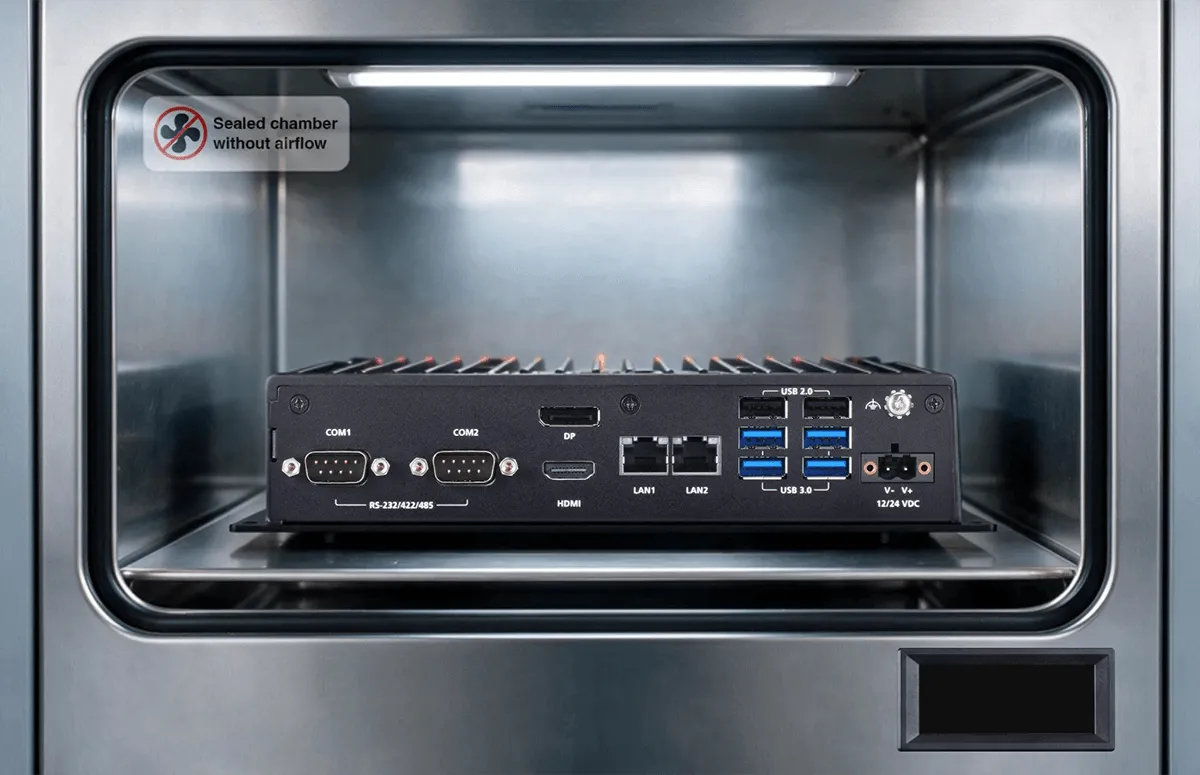

Tested Without Airflow
Every design is validated in a thermal chamber with no airflow, confirming dependable performance throughout the -30 to 70°C range.
Where the BXP Series Delivers at the Edge
Device Cabinet
The wall-mount BXP-C101 Series is a good match for fab environments where installation space is limited.
Mobile Cabinet
BXP-A101 DIN-rail models can be built right into a mobile computer workstation.
Outdoor Cabinet
BXP-A101 DIN-rail models work as a compact control computer inside an EV charging station.

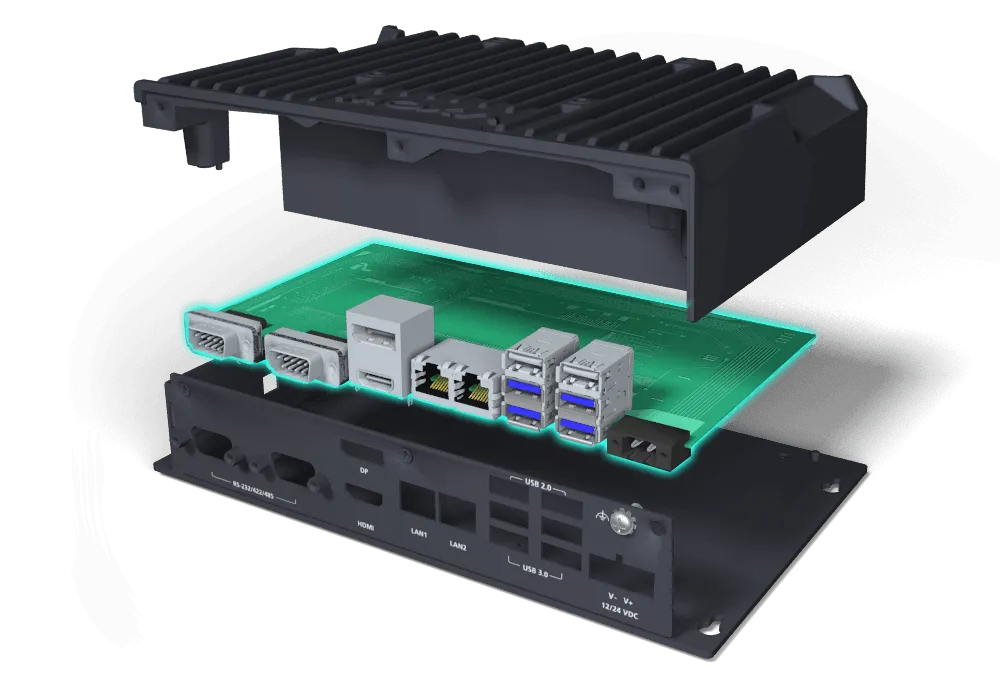

Cableless Single-Board Layout for Heavy Vibration
With no internal cables or connectors, the single-board layout withstands intense vibration, simplifies servicing, and frees up internal space.

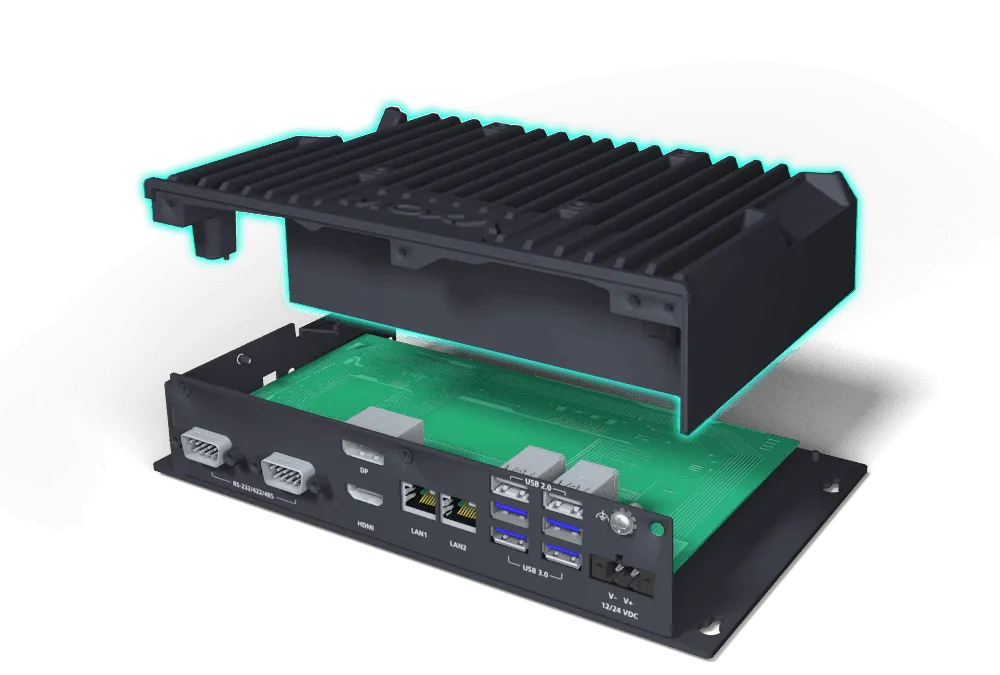

Die-Cast One-Piece IPC Chassis
The die-cast, one-piece IPC chassis offers excellent structural integrity, stable heat dissipation, and a long service life.
Stable Across Temperature Extremes
Consistent performance from -30 to 70°C, validated through thermal testing with zero airflow.
See the BXP Series' Compact, Rugged Build in Action
Featured BXP Series Products
Swipe left or right to compare both series
| Series |

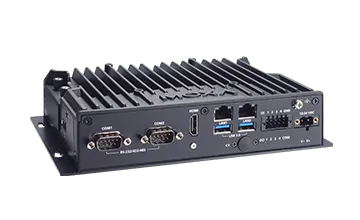

BXP-A101 Series
|

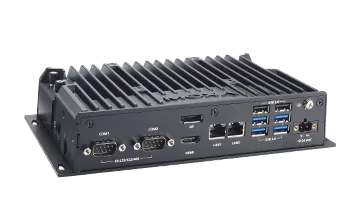

BXP-C101 Series
|
|---|---|---|
| CPU | Intel Atom® Dual-core x6211E Quad-core x6425E |
Intel® Raptor Lake-U Refresh Core™ 3-100U Core™ 5-120U Core™ 7-150U |
| Video Output | 1 HDMI | 1 HDMI 1 DisplayPort |
| LAN Ports | 2 | 2 |
| Serial Ports | 2 | S1 models: 2 |
| USB Ports | 2 USB 3.0 | 4 USB 3.0 2 USB 2.0 |
| DI/DOs | 4 DIs, 4 DOs | S2 models: 5 DIs, 6 DOs |
| Memory Options | 8 GB pre-installed, 1 SODIMM DDR4 slot | |
| Storage Options | 1 CFast slot (SATAIII interface) 1 SD slot, SD 3.0 interface (SDHC/SDXC) 1 M.2 M-key 2242 slot (M.2 models only) |
1 CFast slot (SATAIII interface) 1 M.2 M-key 2242 slot |
| Expansion Slots | 1 mPCIe slot | |
| OS Options | Windows 10 IoT Enterprise LTSC 2021 64-bit Windows 11 IoT Enterprise LTSC 2024 64-bit Windows 11 Professional 64-bit Supported Linux drivers: Debian 12 Ubuntu 22.04 LTS RHEL 9 |
Windows 10 IoT Enterprise LTSC 2021 64-bit Windows 11 IoT Enterprise LTSC 2024 64-bit Windows 11 Professional 64-bit Supported Linux drivers: Debian 13 Ubuntu 24.04 LTS RHEL 9 |
| Certification | CE, FCC, UL, BSMI | CE, FCC, UL |
