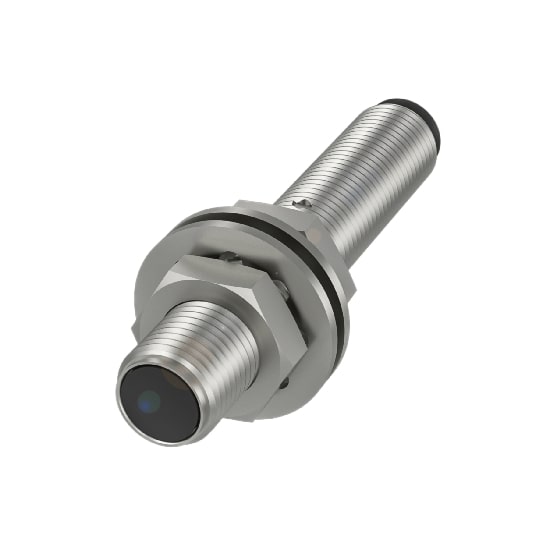

BALLUFF BES012W INDUCTIVE STANDARD SENSOR

BALLUFF BES012W INDUCTIVE STANDARD SENSOR
  • Model: BES012W
$0.00
Ex Tax: $0.00

    BALLUFF BES012W FEATURES

              • Connection: M5x0.5-Male
              • Operating temperature: -25 to 70 °C
              • IP rating: IP67
              • Shielded and unshielded versions
              • Plug or cable connection
              Over 40 Years in Business
              Over 40 Years in Business
              Successful track record across Canada
              Full Engineering Services
              Full Engineering Services
              A powerhouse to provide consultation, training, and support
              Strong Brand Portfolio
              Strong Brand Portfolio
              Top-notch products from superb global and local suppliers
              Advanced Technologies
              Advanced Technologies
              From legacy and mainstream to advanced Industry 4.0

              BALLUFF BES012W INTRODUCTION

              Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

              The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.


              As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES012W INDUCTIVE STANDARD SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

              You can also find the BES00M3 and BES00M5 models in the BALLUFF Inductive Standard Sensors.

              BALLUFF BES012W CERTIFICATIONS



              Inductive Sensors : Interface
              Output Characteristic NPN normally open (NO)
              Inductive Sensors : Electrical Connection
              Connection M5x0.5-Male
              Polarity Reversal Protected Yes
              Inductive Sensors : Electrical Data
              Protection Class -
              Ripple 10 %
              Switching Frequency 3000 Hz
              Operating Voltage Ub 10 to 30 VDC
              Current (Ie) 100 mA
              Inductive Sensors : Range/Distance
              Measuring Range 0.8 mm
              Assured Operating Distance Sa 0.65 mm
              Real Switching Distance sr 0.8 mm
              Inductive Sensors : Physical and Environmental Characteristics
              Dimension Ø 5 x 29 mm
              Weight -
              Installation for flush mounting
              Operating Temperature -25 to 70 °C
              Housing Stainless steel
              IP Rating IP67
              Tightening Torque 1 Nm
              MTTF 585 a
              Standards and Approvals cULus, CE, UKCA, WEEE, IEC 60947-5-2
