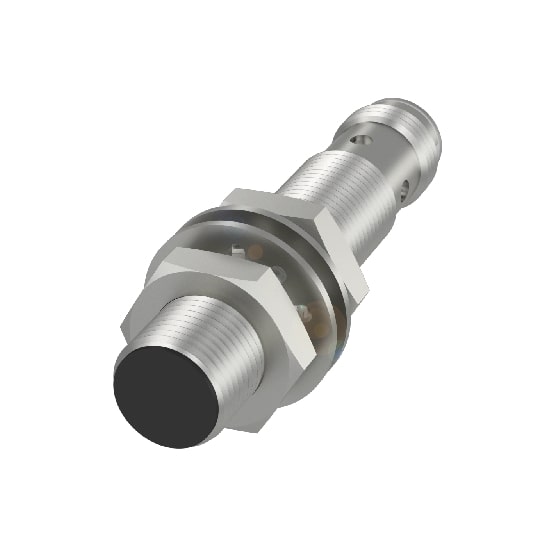

BALLUFF BES02WY INDUCTIVE STANDARD SENSOR

BALLUFF BES02WY INDUCTIVE STANDARD SENSOR
  • Model: BES02WY
$0.00
Ex Tax: $0.00

      BALLUFF BES02WY FEATURES

        • Connection: M12x1-Male, 3-pin, A-coded
        • Operating temperature: -25 to 85°C
        • IP rating: IP68, according to BWN Pr 20
        • Shielded and unshielded versions
        • Plug or cable connection
        Over 40 Years in Business
        Over 40 Years in Business
        Successful track record across Canada
        Full Engineering Services
        Full Engineering Services
        A powerhouse to provide consultation, training, and support
        Strong Brand Portfolio
        Strong Brand Portfolio
        Top-notch products from superb global and local suppliers
        Advanced Technologies
        Advanced Technologies
        From legacy and mainstream to advanced Industry 4.0

        BALLUFF BES02WY INTRODUCTION

        Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

        The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.


        As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES02WY INDUCTIVE STANDARD SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

        You can also find the BES060U and BES060T models in the BALLUFF Inductive Standard Sensors.

        BALLUFF BES02WY CERTIFICATIONS



        Inductive Sensors : Interface
        Output Characteristic PNP normally closed (NC)
        Inductive Sensors : Electrical Connection
        Connection M12x1-Male, 3-pin, A-coded
        Polarity Reversal Protected Yes
        Inductive Sensors : Electrical Data
        Protection Class II
        Ripple 15 %
        Switching Frequency 1000 Hz
        Operating Voltage Ub 10 to 30 VDC
        Current (Ie) 200 mA
        Inductive Sensors : Range/Distance
        Measuring Range 6 mm
        Assured Operating Distance Sa 4.8 mm
        Real Switching Distance sr 6 mm
        Inductive Sensors : Physical and Environmental Characteristics
        Dimension Ø 12 x 60 mm
        Weight -
        Installation quasi-flush
        Operating Temperature -25 to 85 °C
        Housing Brass, Nickel-free coated
        IP Rating IP68, according to BWN Pr 20
        Tightening Torque 10 Nm
        MTTF 625 a
        Standards and Approvals CE, cULus, WEEE, IEC 60947-5-2
