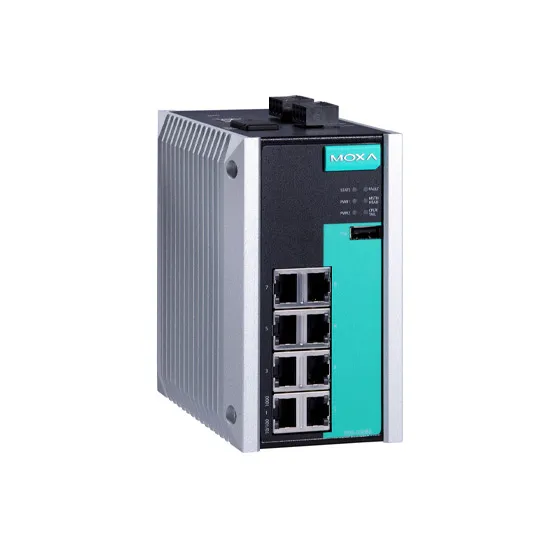

MOXA EDS-G508E Managed Ethernet Switch

MOXA EDS-G508E Managed Ethernet Switch
  • Model: EDS-G508E
$0.00
Ex Tax: $0.00

MOXA EDS-G508E FEATURES

  • 8 x 10/100/1000BaseT(X) Ports (RJ45 connector)
  • 12/24/48/-48 VDC Redundant dual inputs
  • Din-rail and Wall mounting
  • IP30-rated Metal body design
  • -10 to 60°C operating temperature range


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA EDS-G508E INTRODUCTION

The EDS-G508E switches are equipped with 8 Gigabit Ethernet ports, making them ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly. Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the reliability of your system and improve the availability of your network backbone. The EDS-G508E Series is designed especially for demanding communication applications, such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA EDS-G508E Managed Ethernet Switch online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the EDS-G508E-T model in the MOXA EDS-G508E Series.

MOXA EDS-G508E CERTIFICATIONS



Switch and Hub : Interface
Number of ports 8 Ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports Yes : 8 Ports
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 1 x Alarm Contact Channel, 1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA), 1 x USB Port (Type A connector), 1 x Console Port (Type B connector)
Switch and Hub : Features and Capabilities
Backup Yes : ABC-02
Switch and Hub : LED Indicators
LED Per Port Yes
Switch and Hub : Power Requirements
Input Voltage 12/24/48/-48 VDC
Input Current 0.28 A @ 24 VDC
Operating Voltage 9.6 to 60 VDC
Power Input Plugin ( Redundant ) Yes
Power Consumption -
Switch and Hub : General
Fan / Fanless Fanless
MTBF 814,608 hrs
Switch and Hub : Switch Specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation Yes
Switch and Hub : Physical Characteristics
Dimensions 79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -10 to 60°C (14 to 140°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: UL 508; EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Power Substation: IEC 61850-3, IEEE 1613; Railway: EN 50121-4; Traffic Control: NEMA TS2; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall :IEC 60068-2-32; Maritime: DNV, LR, ABS, NK; IP30; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 1440 g (3.18 lb)
Switch and Hub : Standards and Protocols
Protocols and work standards EtherNet/IP, Modbus TCP, PROFINET IO Device, Link Aggregation, MRP, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Protocols and management standards LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SCP, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q VLAN, BPDU Filter, BPDU Guard, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN
Switch and Hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
