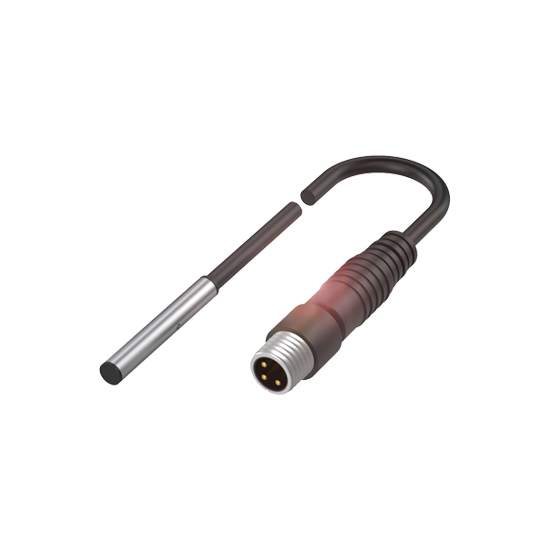

BALLUFF BES00J2 Inductive Proximity Sensor

BALLUFF BES00J2 Inductive Proximity Sensor
  • Model: BES00J2
$0.00
Ex Tax: $0.00

BALLUFF BES00J2 FEATURES

  • Connection: Cable with connector, M8x1-Male, 3-pin, 0.20 m, PUR
  • Switching Output: PNP normally open (NO)
  • Operating Voltage Ub: 10...30 VDC
  • Housing Material: Stainless steel
  • Installation: Flush Mounting
  • Operating Temperature: -25...70 °C


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

BALLUFF BES00J2 INTRODUCTION

Balluff offers a wide range of inductive proximity switches and sensors for various applications and industries. Whether standard inductive proximity sensors, high-pressure sensors, hygienic sensors/washdown compliant, factor 1 sensors, magnetic field resistant by magnetic shielding, weld immune proximity sensors, high temperature sensors, explosion-proof (IECEx, ATEX), or NAMUR sensors, you are guaranteed to find the right product for your individual application in our portfolio, thanks to different housing materials and sealing methods. We offer different designs, housing diameters, and thread sizes for easy integration in a wide range of situations and for optimum solutions even where space is limited.

The technology used worldwide has an optimum price-performance ratio and can be supplied in short delivery times, even for large quantities.

Increase the availability of your systems and reduce maintenance and storage costs at the same time with inductive proximity switches from Balluff.


As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES00J2 Inductive Proximity Sensor online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the BES0450BES05ETand BES05EP models in the BALLUFF Inductive Standard Sensors.

BALLUFF BES00J2 CERTIFICATIONS



Inductive Sensors : Interface
Output Characteristic PNP normally open (NO)
Inductive Sensors : Electrical Connection
Connection Cable with connector, M8x1-Male, 3-pin, 0.20 m, PUR
Polarity Reversal Protected Supported
Inductive Sensors : Electrical Data
Protection Class -
Ripple 10 %
Switching Frequency 5000 Hz
Operating Voltage Ub 10...30 VDC
Current (Ie) 100 mA
Inductive Sensors : Range/Distance
Measuring Range -
Assured Operating Distance Sa 0.65 mm
Real Switching Distance sr 0.8 mm
Inductive Sensors : Physical and Environmental Characteristics
Dimension Ø 4 x 27 mm
Weight -
Installation for flush mounting
Operating Temperature -25...70 °C
IP Rating IP67
Tightening Torque -
MTTF 305 a
Standards and Approvals CE, UKCA, cULus, WEEE, IEC 60947-5-2
