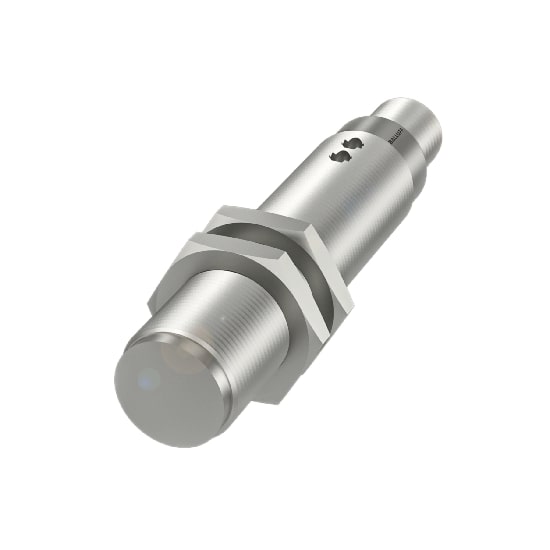

BALLUFF BES02ZC INDUCTIVE FULL-METAL SENSOR
BALLUFF BES02ZC INDUCTIVE FULL-METAL SENSOR
- Model: BES02ZC
$0.00
Ex Tax: $0.00
BALLUFF BES02ZC FEATURES
- Connection: 1/2"-20 UNF-2A-Male, 3-pin
- Operating temperature: -25 to 70 °C
- IP rating: IP67
- Additional features: Selective ferrous
- Extremely robust
- High switching distance
- Various configurations and sizes
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
BALLUFF BES02ZC INTRODUCTION
The resilient stainless steel BES inductive full-metal sensors have been specifically developed for applications in harsh environments. The housing and sensor front are manufactured from stainless steel. The robust active surface is resistant to impacts, mechanical stresses, and abrasive media.
Balluff offer additional variants with PTFE and ceramic coating against welding spatter. The extreme resilience of Balluff sensors can reduce your maintenance costs, thus increasing the availability of your system.
As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES02ZC INDUCTIVE FULL-METAL SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the BES056C and BES0567 models in the BALLUFF Inductive Full-metal Sensors.
BALLUFF BES02ZC CERTIFICATIONS

| Inductive Sensors : Interface | |
| Output Characteristic | normally open (NO) |
| Inductive Sensors : Electrical Connection | |
| Connection | 1/2"-20 UNF-2A-Male, 3-pin |
| Polarity Reversal Protected | Yes |
| Inductive Sensors : Electrical Data | |
| Protection Class | - |
| Ripple | - |
| Switching Frequency | 15 Hz |
| Operating Voltage Ub | 20 to 300 VDC/20 to 250 VAC |
| Current (Ie) | 200 mA |
| Inductive Sensors : Range/Distance | |
| Measuring Range | 5 mm |
| Assured Operating Distance Sa | 4 mm |
| Real Switching Distance sr | 5 mm |
| Inductive Sensors : Physical and Environmental Characteristics | |
| Dimension | Ø 18 x 90 mm |
| Weight | - |
| Installation | for flush mounting |
| Operating Temperature | -25 to 70 °C |
| Housing | Stainless steel |
| IP Rating | IP67 |
| Tightening Torque | 30 Nm |
| MTTF | - |
| Standards and Approvals | CE, cULus, WEEE, IEC 60947-5-2 |
