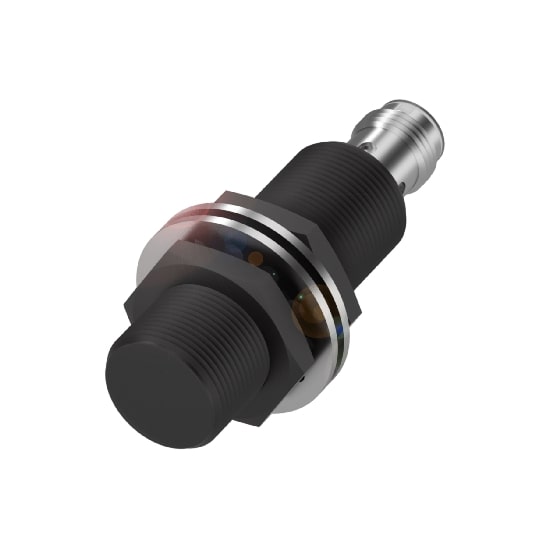

BALLUFF BES056C INDUCTIVE FULL-METAL/ WELD-IMMUNE SENSOR

BALLUFF BES056C INDUCTIVE FULL-METAL/ WELD-IMMUNE SENSOR
  • Model: BES056C
$0.00
Ex Tax: $0.00

BALLUFF BES056C INTRODUCTION

  • Connection: M12x1-Male, 4-pin, A-coded
  • Operating temperature: -25 to 70 °C
  • IP rating: IP67
  • Pressure rating max: 40 bar
  • Extremely robust
  • High switching distance
  • Various configurations and sizes


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

BALLUFF BES056C INTRODUCTION

The resilient stainless steel BES inductive full-metal sensors have been specifically developed for applications in harsh environments. The housing and sensor front are manufactured from stainless steel. The robust active surface is resistant to impacts, mechanical stresses, and abrasive media.

Balluff offer additional variants with PTFE and ceramic coating against welding spatter. The extreme resilience of Balluff sensors can reduce your maintenance costs, thus increasing the availability of your system.


As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES056C INDUCTIVE FULL-METAL/ WELD-IMMUNE SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the BES02Z7 and BES02ZH models in the BALLUFF Inductive Full-metal Sensors.

BALLUFF BES056C CERTIFICATIONS



Inductive Sensors : Interface
Output Characteristic PNP normally open (NO)
Inductive Sensors : Electrical Connection
Connection M12x1-Male, 4-pin, A-coded
Polarity Reversal Protected Yes
Inductive Sensors : Electrical Data
Protection Class -
Ripple 10 %
Switching Frequency 350 Hz
Operating Voltage Ub 10 to 30 VDC
Current (Ie) 200 mA
Inductive Sensors : Range/Distance
Measuring Range 7.2 mm
Assured Operating Distance Sa 4.9 mm
Real Switching Distance sr 7.2 mm
Inductive Sensors : Physical and Environmental Characteristics
Dimension Ø 18 x 65 mm
Weight -
Installation for flush mounting
Operating Temperature -25 to 70 °C
Housing Stainless steel, coated, PTFE
IP Rating IP67
Tightening Torque 25 Nm
MTTF 770 a
Standards and Approvals CE, UKCA, cULus, WEEE, IEC 60947-5-2
