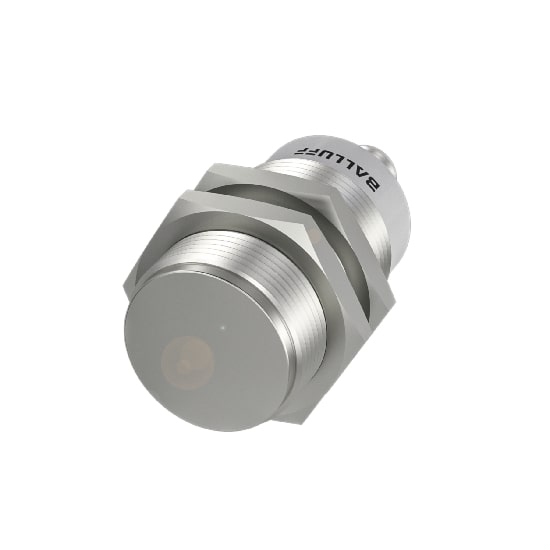

BALLUFF BES02ZH INDUCTIVE FULL-METAL SENSOR

BALLUFF BES02ZH INDUCTIVE FULL-METAL SENSOR
  • Model: BES02ZH
$0.00
Ex Tax: $0.00

    BALLUFF BES02ZH FEATURES

    • Connection: M12x1-Male, 4-pin, A-coded
    • Operating temperature: -40 to 70 °C
    • IP rating: IP67
    • Additional features: Selective non-ferrous
    • Extremely robust
    • High switching distance
    • Various configurations and sizes
    Over 40 Years in Business
    Over 40 Years in Business
    Successful track record across Canada
    Full Engineering Services
    Full Engineering Services
    A powerhouse to provide consultation, training, and support
    Strong Brand Portfolio
    Strong Brand Portfolio
    Top-notch products from superb global and local suppliers
    Advanced Technologies
    Advanced Technologies
    From legacy and mainstream to advanced Industry 4.0

    BALLUFF BES02ZH INTRODUCTION

    The resilient stainless steel BES inductive full-metal sensors have been specifically developed for applications in harsh environments. The housing and sensor front are manufactured from stainless steel. The robust active surface is resistant to impacts, mechanical stresses, and abrasive media.

    Balluff offer additional variants with PTFE and ceramic coating against welding spatter. The extreme resilience of Balluff sensors can reduce your maintenance costs, thus increasing the availability of your system.


    As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES02ZH INDUCTIVE FULL-METAL SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

    You can also find the BES05NC and BES02NK models in the BALLUFF Inductive Full-metal Sensors.

    BALLUFF BES02ZH CERTIFICATIONS



    Inductive Sensors : Interface
    Output Characteristic PNP normally open (NO)
    Inductive Sensors : Electrical Connection
    Connection M12x1-Male, 4-pin, A-coded
    Polarity Reversal Protected Yes
    Inductive Sensors : Electrical Data
    Protection Class -
    Ripple 15 %
    Switching Frequency 10 Hz
    Operating Voltage Ub 10 to 30 VDC
    Current (Ie) 200 mA
    Inductive Sensors : Range/Distance
    Measuring Range 8 mm
    Assured Operating Distance Sa 6.5 mm
    Real Switching Distance sr 8 mm
    Inductive Sensors : Physical and Environmental Characteristics
    Dimension Ø 30 x 65 mm
    Weight -
    Installation for flush mounting
    Operating Temperature -40 to 70 °C
    Housing Stainless steel
    IP Rating IP67
    Tightening Torque 30 Nm
    MTTF 990 a
    Standards and Approvals CE, cULus, WEEE, IEC 60947-5-2
