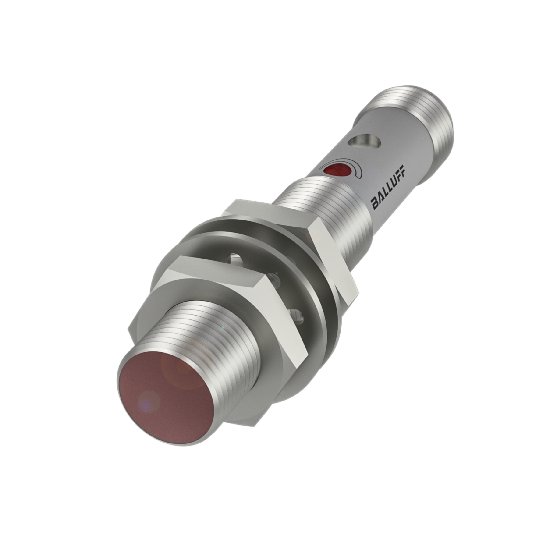

BALLUFF BOS00WF DIFFUSE AND THROUGH-BEAM/ THROUGH-BEAM SENSOR

BALLUFF BOS00WF DIFFUSE AND THROUGH-BEAM/ THROUGH-BEAM SENSOR
  • Model: BOS00WF
$0.00
Ex Tax: $0.00

    BALLUFF BOS00WF FEATURES

    • Connection: Connector, M12x1-Male, 4-pin
    • Operating temperature: -10 to 50 °C
    • IP rating: IP67
    • Series: 12M
    • Principle of optical operation: Through-beam sensor (receiver)
    • Range: 0 to 30 m
    • Part recognition and counting
    • Stack height monitoring
    • Detection through glass
    Over 40 Years in Business
    Over 40 Years in Business
    Successful track record across Canada
    Full Engineering Services
    Full Engineering Services
    A powerhouse to provide consultation, training, and support
    Strong Brand Portfolio
    Strong Brand Portfolio
    Top-notch products from superb global and local suppliers
    Advanced Technologies
    Advanced Technologies
    From legacy and mainstream to advanced Industry 4.0

    BALLUFF BOS00WF INTRODUCTION

    Photoelectric sensors check presence, shape, colour, distance, and thickness - optimised for robotics, automation, assembly, and handling. They are real experts with various strengths: detecting and counting parts, monitoring stack heights, through-glass detection, aligning small parts, detecting marks, fill level detection, and much more!


    As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BOS00WF DIFFUSE AND THROUGH-BEAM/ THROUGH-BEAM SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

    You can also find the BOS00JF and BOS00K7 models in the BALLUFF Diffuse and Through-beam Sensors.

    BALLUFF BOS00WF CERTIFICATION



    Photoelectric Sensors : Interface
    Output Characteristic PNP normally closed (NC), PNP normally open (NO) Pins 4-2
    Photoelectric Sensors : Electrical Connection
    Connection Connector, M12x1-Male, 4-pin
    Polarity Reversal Protected Yes
    Protection against device mix-ups Yes
    Short-circuit protection Yes
    Photoelectric Sensors : Electrical Data
    Protection Class -
    Ripple 10 %
    Switching Frequency 1000 Hz
    Operating Voltage Ub 10 to 30 VDC
    Current (Ie) 200 mA
    No-load current Io max. at Ue 15 mA
    Load capacitance max. at Ue 0.1 µF
    Rated insulation voltage Ui 75 V DC
    Rated operating voltage Ue DC 24 V
    Utilization category DC -13
    Photoelectric Sensors : Range/Distance
    Measuring Range 0 to 30 m
    Hysteresis H max. (% of Sr) -
    Rated operating distance Sn 3 m Adjustable, depends on emitter
    Repeat accuracy max. (% of Sr) -
    Temperature drift max. (% of Sr) compensated
    Photoelectric Sensors : Display/Operation
    Function indicator -
    Power indicator -
    Adjuster Potentiometer 270°
    Setting Sensitivity (Sn)
    Photoelectric Sensors : Physical Characteristics
    Dimension Ø 12 x 70 mm
    Weight -
    Installation -
    Operating Temperature -10 to 50 °C
    Housing Brass, nickel-plated
    IP Rating IP67
    Tightening Torque 15 Nm
    MTTF 251 a
    Standards and Approvals CE, UKCA, cULus, WEEE, IEC 60947-5-2
