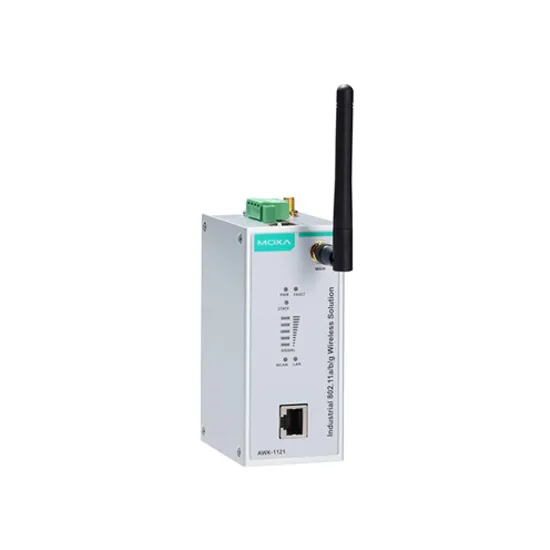

MOXA AWK-1121-US Wireless Client




MOXA AWK-1121-US Wireless Client
- Model: AWK-1121-US
$0.00
Ex Tax: $0.00
MOXA AWK-1121-US FEATURES
- Supports US Frequency Bands
- 1 x 10/100BaseT(X) port (RJ45 connector)
- IEEE 802.11a/b/g compliant
- IP30-rated Metal body design
- 12 to 48 VDC Redundant dual power inputs
- DIN-rail and Wall mounting
- 0 to 60°C operating temperature

Over 40 Years in Business
Successful track record across Canada

Full Engineering Services
A powerhouse to provide consultation, training, and support

Strong Brand Portfolio
Top-notch products from superb global and local suppliers

Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
MOXA AWK-1121-US INTRODUCTION
The AWK-1121/1127 WLAN client is ideal for industrial hard-to-wire applications, controlling wireless costs, and integrating with existing mobile equipment. The AWK-1121 enables WLAN connection to Ethernet devices, while the AWK-1127 offers an additional serial port for serial device connectivity. The AWK-1121/1127 is rated to operate at temperatures ranging from 0 to 60°C for standard models and -40 to 75°C for wide-temperature models and is rugged enough for any harsh industrial environment. Installation is easy, with either DIN rail or wall mounting capability, wide operating temperature ranges, and IP30 housing with LED indicators making the AWK-1121/1127 a convenient yet reliable solution for any industrial wireless application.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA AWK-1121-US Wireless Client online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
End of Life Product - Replacement Available
Please note that the AWK-1121 Series has been phased out and replaced by the MOXA AWK-1137C Series.
MOXA AWK-1121-US CERTIFICATIONS



Access Point : Interfaces | |
Frequency Band | 2.412 to 2.462 GHz (11 channels), 5.18 to 5.24 GHz (4 channels) |
Modulation Type | DSSS with DBPSK, DQPSK, CCK, OFDM with BPSK, QPSK, 16QAM, 64QAM, 802.11b: CCK @ 11/5.5 Mbps, DQPSK @ 2 Mbps, DBPSK @ 11 Mbps, 802.11a/g: 64QAM @ 54/48 Mbps, 16QAM @ 36/24 Mbps, QPSK @ 18/12 Mbps, BPSK @ 9/6 Mbps |
10/100/1000BaseT(X) Ports | No |
PoE Ports | No |
Wireless Security | Firewall for MAC/IP/Protocol/Port-based filtering, 64-bit and 128-bit WEP encryption, WPA /WPA2-Personal and Enterprise (IEEE 802.1X/RADIUS, TKIP, and AES) |
100BaseFX Ports | No |
WLAN Antenna Connector | Default Antenna: 1 x RP-SMA (male), Connector for External Antenna: 1 x RP-SMA (female) |
WLAN Operation Mode | Wireless Client |
Security | HTTP, HTTPS, RADIUS |
WLAN Standards | IEEE 802.11a/b/g for Wireless LAN, IEEE 802.11i for Wireless Security, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseTX, IEEE 802.3af for Power-over-Ethernet, IEEE 802.1D for Spanning Tree Protocol, IEEE 802.1w for Rapid STP |
Transmission Rates | 802.11b: 1, 2, 5.5, 11 Mbps, 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
1000BaseSFP Slots | No |
Serial Ports | No |
10/100BaseT(X) Ports | 1 x auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
Digital Inputs | No |
Console Port | RS-232 (RJ45-type) |
M12 Connector | No |
Access Point : Power Requirement | |
Input Current | - |
Input Voltage | 12 to 48 VDC, redundant dual DC power inputs, or 48 VDC Power-over-Ethernet (IEEE 802.3af compliant) |
Connector | 4-pin removable terminal block |
Power Consumption | 12 to 48 VDC, 0.16 to 0.55 A |
Reverse Polarity Protection | Supported |
Access Point : Physical Characteristics | |
Humidity | 5% to 95% (non-condensing) |
Dimensions Packaged | 50 x 115 x 70 mm (1.98 x 4.53 x 2.76 in) |
Weight (PACKAGED) | 400 g |
Standards and Certifications | Safety: UL 60950-1, EN 60950-1; EMC: EN 301 489-1/17, FCC Part 15 Subpart B Class B, EN 55022/55024; Radio: EN 300 328, EN 301 893, TELEC, FCC ID SLE-WAPN003; IP30 |
Housing | Metal, providing IP30 protection |
Installation | DIN-Rail mounting, wall mounting (with optional kit |
Operating Temperature | 0 to 60°C (32 to 140°F) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Access Point : General | |
Management | Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, DHCP |
Time Management | - |
MTBF | 392,209 hrs |
LED Indicators | PWR, FAULT, STATE, SIGNAL, WLAN, LAN |
