MOXA AWK-1131A-EU-T Wireless AP/Client

MOXA AWK-1131A-EU-T Wireless AP/Client
  • Model: AWK-1131A-EU-T
$0.00
Ex Tax: $0.00

MOXA AWK-1131A-EU-T FEATURES

  • Supports EU Frequency Bands
  • 1 x 10/100/1000BaseT(X) port (RJ45 connector)
  • IEEE 802.11a/b/g/n AP/client support
  • IP30-rated Metal body design
  • 12 to 48 VDC Redundant dual power inputs
  • DIN-rail and Wall mounting
  • -40 to 75°C operating temperature


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA AWK-1131A-EU-T INTRODUCTION

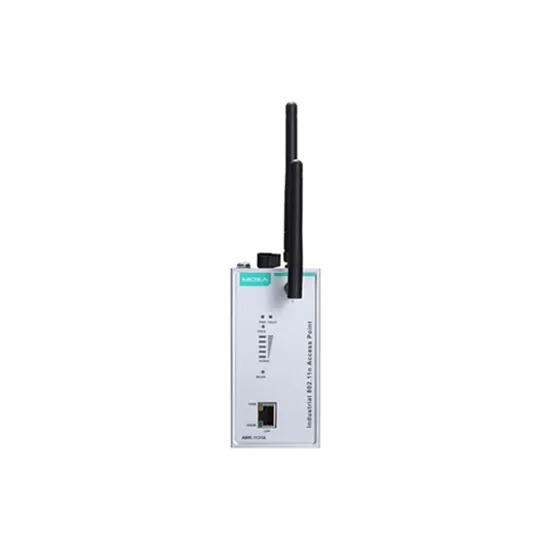

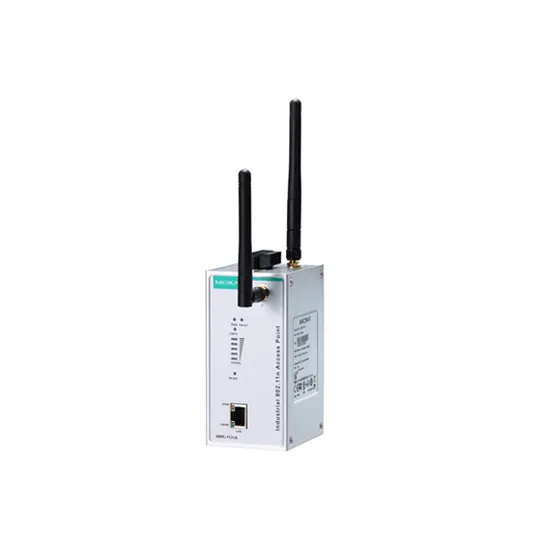

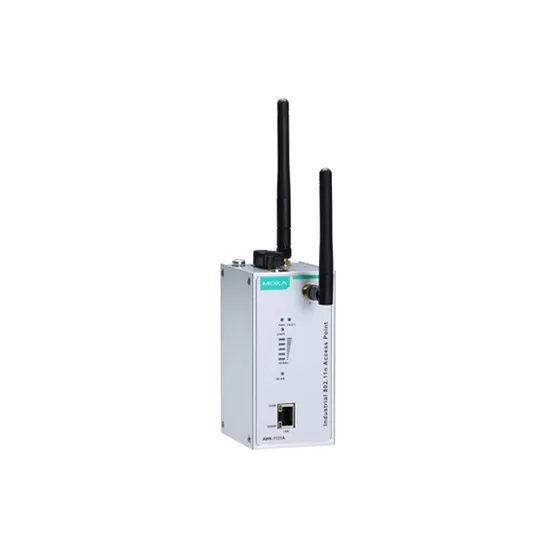

The AWK-1131A industrial wireless AP/client meets the growing need for faster data transmission speeds by supporting IEEE 802.11n technology with a net data rate of up to 300 Mbps. The AWK-1131A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply. The AWK-1131A can operate on either the 2.4 or 5 GHz bands and is backward-compatible with existing 802.11a/b/g deployments to future-proof your wireless investments.


As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA AWK-1131A-EU-T Wireless AP/Client online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find AWK-1131A-EU and AWK-1131A-JP-T in the MOXA AWK-1131A Series.

MOXA AWK-1131A-EU-T CERTIFICATIONS


Access Point : Interfaces
Frequency Band 2.412 to 2.472 GHz (13 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.500 to 5.700 GHz (11 channels)
Modulation Type DSSS, MIMO-OFDM, OFDM
10/100/1000BaseT(X) Ports 1 x RJ45
PoE Ports No
Wireless Security WEP encryption (64-bit and 128-bit), WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2-Personal
100BaseFX Ports No
WLAN Antenna Connector 2 x RP-SMA female
WLAN Operation Mode Access point, Client, Sniffer
Security HTTPS/SSL, RADIUS, SSH
WLAN Standards 802.11a/b/g/n, 802.11i Wireless Security
Transmission Rates 802.11b: 1 to 11 Mbps, 802.11a/g: 6 to 54 Mbps, 802.11n: 6.5 to 300 Mbps
1000BaseSFP Slots No
Serial Ports No
10/100BaseT(X) Ports No
Digital Inputs No
Console Port 1 x RS-232, 8-pin RJ45
M12 Connector No
Access Point : Power Requirement
Input Current 0.56 A @ 12 VDC, 0.14 A @ 48 VDC
Input Voltage 12 to 48 VDC
Connector 1 removable 4-contact terminal block(s)
Power Consumption 6.96 W (max.)
Reverse Polarity Protection Supported
Access Point : Physical Characteristics
Humidity 5 to 95% (non-condensing)
Dimensions Packaged 58 x 115 x 70 mm (2.29 x 4.53 x 2.76 in)
Weight (PACKAGED) 0.307kg (0.68 lb)
Standards and Certifications EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Radio: EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-WAPN008, MIC, NCC, RCM, SRRC, WPC, KC, RCM, ANATEL; Safety: EN 60950-1, UL 60950-1; Vibration: IEC 60068-2-6; IP30; Telcordia SR332
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -40 to 75°C (-40 to 185°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Access Point : General
Management DHCP Server/Client, DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, Wireless Search Utility, VLAN, MXview, MXconfig
Time Management SNTP Client
MTBF 749,476 hrs
LED Indicators PWR, FAULT, STATE, SIGNAL, WLAN, LAN
