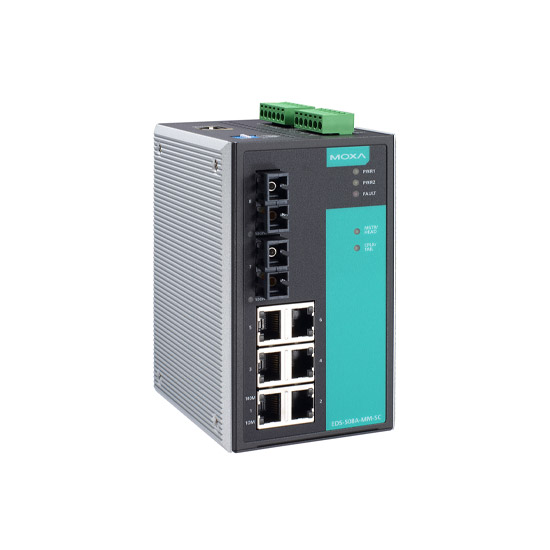

MOXA EDS-508A-SS-SC Managed Ethernet Switch
MOXA EDS-508A-SS-SC INTRODUCTION
Moxa EDS-508A-SS-SC managed Ethernet switch is an excellent top-tier network solution for
industrial applications such as oil and gas and factory automation. With
exceptional features like industrial-grade reliability, network redundancy, and
security, the Moxa Layer 2 managed switch has proven itself a suitable choice
for demanding environments. In addition, the Moxa EDS-508A-SS-SC supports an
operating temperature range of -10 to 60°C (14 to 140°F) to facilitate
consistent performance even in challenging conditions. The Moxa industrial network infrastructure strives to improve your networks with superior data
transmissions and robust connectivity.
Reliable Ethernet Interfaces via Port Configuration
With the Moxa Ethernet switch, you can choose from a variety of interfaces to meet your networking
needs. This device features six 10/100BaseT(X) ports (RJ45 connectors) with
auto-negotiation speeds, full/half duplex modes, and auto MDI/MDI-X connectivity.
It also comes with two 100BaseFX Ports (single-mode SC connector). Because of
this flexibility, the EDS 508A-SS-SC is a reliable choice for a wide range of
industrial applications that require high-speed data transfer. The Moxa-managed switches can be easily configured to meet varying network requirements.
Unparalleled Power Features with Redundant Dual Inputs Power
A key feature of the Moxa EDS-508A-SS-SC Ethernet switch is its power reliability. There are two
removable 6-contact terminal blocks for connection, supporting input voltages
of 12/24/48 VDC and operating voltages between 9.6 and 60 VDC. The switch provides
redundant dual inputs, protecting against power interruptions. Additionally,
the Moxa industrial Ethernet switch has overload current protection and reverse
polarity protection, making it ideal for critical applications. The
EDS-508A-SS-SC is known for its reliable power management in industrial
settings.
Advanced Redundancy Protocols for Network Stability
With its comprehensive
redundancy protocol, the Moxa EDS-508A-SS-SC Ethernet switch ensures network
stability and minimizes downtime. In order to bring forth availability and
reliability in demanding networks, this Moxa switch features STP, MSTP, RSTP, LACP,
link aggregation, Turbo Chain, and Turbo Ring v1/v2. The Moxa managed Ethernet switch provides superior performance and security that is required for
industrial applications. For more detailed information, refer to the Moxa EDS-508A-SS-SC datasheet.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA EDS-508A-SS-SC Managed Ethernet Switch online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the EDS-508A-SS-SC-T, EDS-508A, EDS-508A-MM-ST, and EDS-508A-MM-SC models in the MOXA EDS-508A Series.
MOXA EDS-508A-SS-SC CERTIFICATIONS
The Moxa EDS-508A-SS-SC managed Ethernet switch is certified to meet various industry standards to
ensure safety and reliability in diverse environments. It complies with safety,
EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1, UL 512, as well as EMC, EMI,
EMS, Shock, Vibration, Freefall, and hazardous locations certification ATEX,
Class I Division 6. Among these, the hazardous locations certification (ATEX,
Class I Division 6) is particularly crucial because it discloses the ability of
the Moxa EDS-508A series to operate safely in explosive atmospheres, which
means it is a trusted choice for challenging industrial settings.
