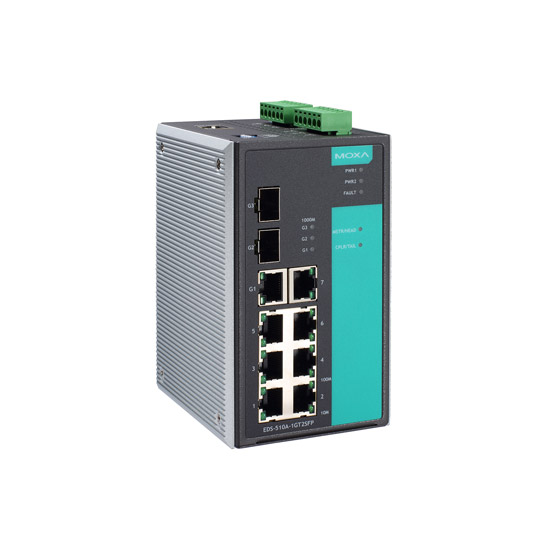

MOXA EDS-510A-1GT2SFP Managed Ethernet Switch
MOXA EDS-510A-1GT2SFP Managed Ethernet Switch
- Model: EDS-510A-1GT2SFP
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
MOXA EDS-510A-1GT2SFP INTRODUCTION
The EDS-510A Gigabit managed redundant Ethernet switches are equipped with up to 3 Gigabit Ethernet ports, making them ideal for building a Gigabit Turbo Ring, but leaving a spare Gigabit port for uplink use. The Ethernet redundancy technologies, Turbo Ring and Turbo Chain (recovery time < 20 ms), RSTP/STP, and MSTP, can increase system reliability and the availability of your network backbone. The EDS-510A Series is designed especially for communication-demanding applications such as process control, shipbuilding, ITS, and DCS systems, which can benefit from a scalable backbone construction.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA EDS-510A-1GT2SFP Managed Ethernet Switch online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the EDS-510A-1GT2SFP-T, EDS-510A-3GT, and EDS-510A-3SFP models in the MOXA EDS-510A Series.
MOXA EDS-510A-1GT2SFP CERTIFICATIONS

| Switch and Hub : Interface | |
| Number of ports | 10 Ports |
| 10/100Mb RJ45 (Megabit) Ports | Yes : 7 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | Yes : 1 Port |
| 100Mb Fiber optic multi mode (Megabit) Ports | No |
| 100Mb Fiber optic single mode (Megabit) Ports | No |
| 100Mb SFP Fiber optic (Megabit) Ports | No |
| 1000Mb SFP Fiber optic (Gigabit) Ports | Yes : 2 Ports |
| 10/100Mb (Megabit) POE Ports | No |
| 10/100/1000Mb (Gigabit) POE Ports | No |
| Other ports | Yes : 2 x Alarm Contact Channels, 2 x Digital Input Channels (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA), 1 x RS-232 Console Port (10-pin RJ45 connector) |
| Switch and Hub : Features and Capabilities | |
| Backup | Yes : ABC-01 |
| Switch and Hub : LED Indicators | |
| LED Per Port | Yes |
| Switch and Hub : Power Requirements | |
| Input Voltage | 24 VDC |
| Input Current | 0.38 A @ 24 VDC |
| Operating Voltage | 12 to 45 VDC |
| Power Input Plugin ( Redundant ) | Yes |
| Power Consumption | - |
| Switch and Hub : General | |
| Fan / Fanless | Fanless |
| MTBF | 831,649 hrs |
| Switch and Hub : Switch Specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | Yes |
| Switch and Hub : Physical Characteristics | |
| Dimensions | 80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in) |
| Housing | Metal |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: EN 62368-1 (LVD), UL 60950-1, UL 508; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX Class I Division 2; Railway: EN 50121-4; Traffic Control NEMA: TS2; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-31; Maritime: DNV; Telcordia (Bellcore), GB; IP30 |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 1170 g (2.58 lb) |
| Switch and Hub : Standards and Protocols | |
| Protocols and work standards | EtherNet/IP, Modbus TCP, STP, MSTP, RSTP, LACP, Link Aggregation, Turbo Chain, Turbo Ring v1/v2 |
| Protocols and management standards | IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, TFTP, 802.1Q VLAN, Port-based VLAN, IGMP v1/v2, GVRP, GMRP |
| Switch and Hub : Package Checklist | |
| Hardware installation guide | Yes |
| Power adapter | No |
| Power cable | No |
