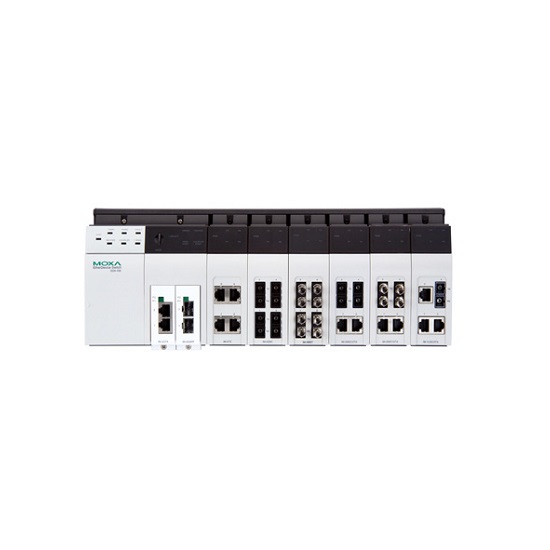

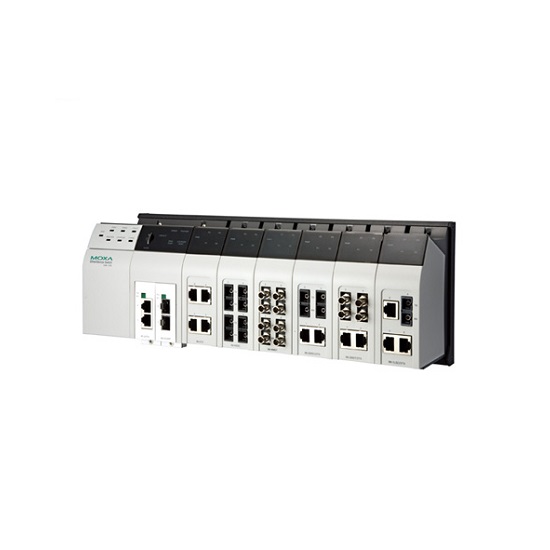

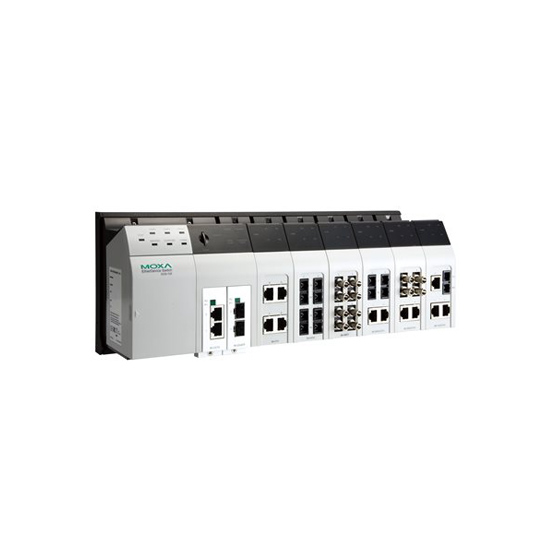

MOXA EDS-72810G Managed Ethernet Switch

Tags: Industrial Network Infrastructure , Industrial Ethernet Switches , Industrial Ethernet and Cybersecurity , Ethernet Switches , Managed Ethernet Switches , Layer 2 Managed Switches , Managed Switches , Layer 2 Switches , Switches , MOXA EDS-728 Series

MOXA EDS-72810G Managed Ethernet Switch

Model: EDS-72810G

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA EDS-72810G FEATURES

Modular Managed Ethernet Switch
2 x 2-Port slots for combination with IM Series GE modules
6 x 4-Port slots for combination with IM Series FE modules
DIN-rail and Wall mounting
24 VDC Redundant dual power inputs
0 to 60°C operating temperature range

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA EDS-72810G INTRODUCTION

The EDS-728 Series features a versatile modular design that allows different combinations of fiber and copper modules, creating a wide array of connection options ideal for any automation network. The modular design lets you install up to 4 Gigabit ports and 24 Fast Ethernet ports. The EDS-728 Series is specially designed for redundant Gigabit network backbones and uses a modular configuration to provide a high degree of flexibility for network expansion. Top network performance, security, and reliability are assured through the EDS-728 Series' advanced management and security features. The EDS728 Series also features industrial-grade construction, a console port for automatic configuration backup, and an angled LED troubleshooting panel that can be conveniently viewed from both horizontal and vertical orientations.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA EDS-72810G Managed Ethernet Switch online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

End of Life Product - Replacement Available

Please note that the EDS-728 Series has been phased out and replaced by the MOXA MDS-G4028 Series.

MOXA EDS-72810G CERTIFICATIONS

Switch and Hub : Interface
Number of ports	28 Ports
10/100Mb RJ45 (Megabit) Ports	Up to 24 Ports
10/100/1000Mb RJ45 (Gigabit) Ports	Up to 4 Ports
100Mb Fiber optic multi mode (Megabit) Ports	Up to 24 Ports
100Mb Fiber optic single mode (Megabit) Ports	Up to 24 Ports
100Mb SFP Fiber optic (Megabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	Up to 4 Ports
10/100Mb (Megabit) POE Ports	No
10/100/1000Mb (Gigabit) POE Ports	No
Other ports	Yes : 2 x Alarm Contact Channels, 2 x Digital Input Channels (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA), 1 x RS-232 Console Port (10-pin RJ45 connecor)
Switch and Hub : Features and Capabilities
Backup	Yes : ABC-01
Switch and Hub : LED Indicators
LED Per Port	No
Switch and Hub : Power Requirements
Input Current	0.82 A @ 24 V
Power Input Plugin ( Redundant )	Yes
Input Voltage	24 VDC
Operating Voltage	12 to 45 VDC
Power Consumption	-
Switch and Hub : General
Fan / Fanless	Fanless
MTBF	191,203 hrs
Switch and Hub : Switch Specifications
Most forwarding speed	-
Network working layers	Layer 2
Switch type	Managed
Port Aggregation	Yes
Switch and Hub : Physical Characteristics
Dimensions	362.4 x 142.5 x 128 mm (14.27 x 5.61 x 5.04 in)
Housing	-
Installation	DIN-rail mounting, wall mounting (with optional kit)
Operating Temperature	0 to 60°C (32 to 140°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	Freefall: IEC 60068-2-32; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Maritime: ABS, DNV-GL, LR, NK; Safety: EN 60950-1, UL 508, UL 60950-1, CSA C22.2 No. 60950-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia SR332
Storage Temperature	-40 to 85°C (-40 to 185°F)
Weight	1950 g (4.30 lb)
Switch and Hub : Standards and Protocols
Protocols and work standards	IEEE 1588 PTPv2, EtherNet/IP, Modbus TCP, PROFINET, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Protocols and management standards	Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, GMRP, GVRP, IGMP v1/v2, QinQ VLAN, 802.1Q VLAN, VLAN unaware
Switch and Hub : Package Checklist
Hardware installation guide	Yes
Power adapter	No
Power cable	No
