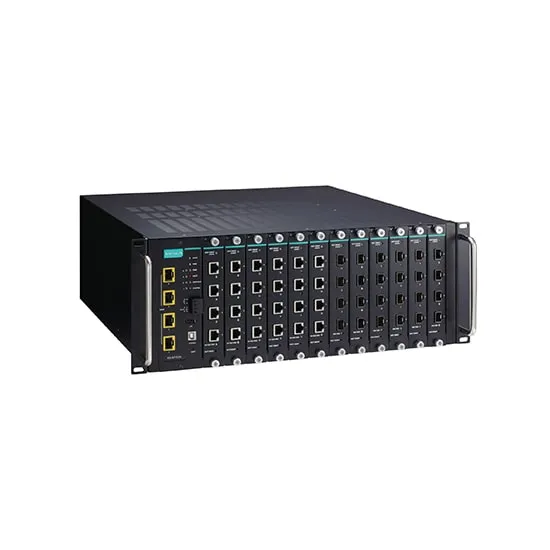

MOXA ICS-G7752A-4XG-HV-HV Rackmount Ethernet Switch

Tags: Industrial Network Infrastructure , Ethernet Switches , Layer 2 Managed Switches , Layer 2 Switches , Rackmount Switches , Rackmount Ethernet Switches , PoE Switches , Industrial Ethernet Switches , Industrial Ethernet and Cybersecurity , Switches , MOXA ICS-G7752A Series

Model: ICS-G7752A-4XG-HV-HV

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA ICS-G7752A-4XG-HV-HV FEATURES

Modular Managed Ethernet Switch
4 x 10GbE SFP+ Slots
12 x Slots for 4-port GE interface modules
110 to 220 VAC Redundant dual inputs
Rackmount installation
-10 to 60°C operating temperature range

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA ICS-G7752A-4XG-HV-HV INTRODUCTION

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The MOXA ICS-G7752A Series full Gigabit backbone switches’ modular design makes network planning easy, and allows greater flexibility by letting you install up to 48 Gigabit Ethernet ports plus 4 10 Gigabit Ethernet ports.

The ICS-G7752A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA ICS-G7752A-4XG-HV-HV Rackmount Ethernet Switch online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to supp

You can also find the ICS-G7748A-HV-HV and ICS-G7750A-2XG-HV-HV in the MOXA Rackmount Ethernet Switches.

MOXA ICS-G7752A-4XG-HV-HV CERTIFICATIONS

Switch and Hub : Interface
Number of ports	52 Ports
10/100Mb RJ45 (Megabit) Ports	No
10/100/1000Mb RJ45 (Gigabit) Ports	Up to 48 Ports
100Mb Fiber optic multi mode (Megabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	No
100Mb SFP Fiber optic (Megabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	Up to 48 Slots
10/100Mb (Megabit) POE Ports	No
10/100/1000Mb (Gigabit) POE Ports	Up to 48 Ports (with IM-G7000A-4PoE module)
Other ports	Yes : 4 x 10GbE SFP+ Slots, 12 x Slots for 4-port GE interface modules, 1 x Alarm Contact Channel, 1 x Digital Input (+13 to +30 V for state 1, -30 to +1 V for state 0, Max. input current: 8 mA), 1 x USB Port (Type A connector), 1 x Console Port (Type B connector)
Switch and Hub : Features and Capabilities
Backup	Yes : ABC-02
Switch and Hub : LED Indicators
LED Per Port	No
Switch and Hub : Power Requirements
Input Current	1.31/0.83 A @ 110/220 VAC, Note: These are the input current ratings for the device with the maximum number of modules installed.
Power Input Plugin ( Redundant )	Yes
Input Voltage	110/220 VAC
Operating Voltage	85 to 264 VAC
Power Consumption	120.38/138.34 W @ 110/220 VAC, Note: These are the power consumption ratings for the device with the maximum number of modules installed.
Switch and Hub : General
Fan / Fanless	Fanless
MTBF	274,488 hrs
Switch and Hub : Switch Specifications
Most forwarding speed	-
Network working layers	Layer 2
Switch type	Managed
Port Aggregation	Yes
Switch and Hub : Physical Characteristics
Dimensions	440 x 176 x 523.8 mm (17.32 x 6.93 x 20.62 in)
Housing	-
Installation	Rack Mounting
Operating Temperature	-10 to 60°C (14 to 140°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	Safety: EN 61010-2-201, UL 61010-2-201; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature	-40 to 85°C (-40 to 185°F)
Weight	12,900 g (28.5 lb)
Switch and Hub : Standards and Protocols
Protocols and work standards	Link Aggregation, MRP, MSTP, RSTP, Turbo Chain, Turbo Ring v1/v2, V-ON, EtherNet/IP, Modbus TCP
Protocols and management standards	ARP, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SCP, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q, BPDU Filter, BPDU Guard, GMRP, GVRP, IGMP v1/v2/v3
Switch and Hub : Package Checklist
Hardware installation guide	Yes
Power adapter	No
Power cable	No
