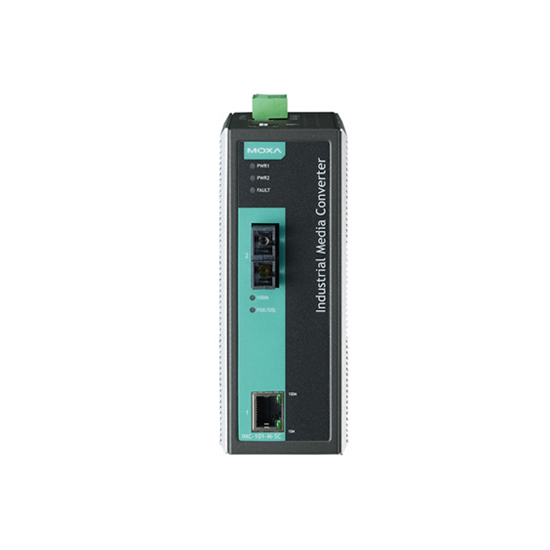

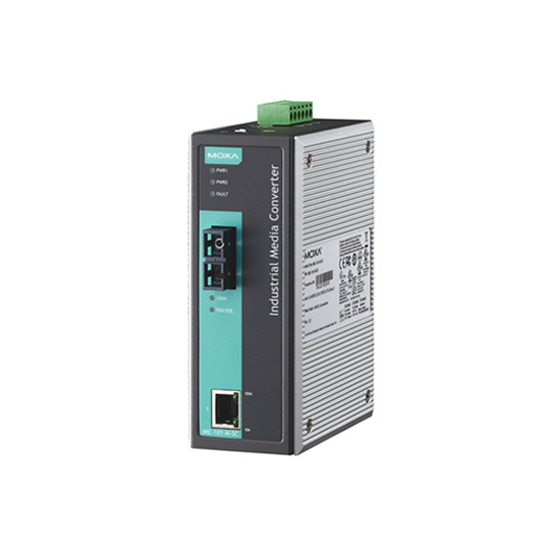

MOXA IMC-101-S-SC-80 Ethernet to Fiber Converter

Tags: Industrial Network Infrastructure , Industrial Ethernet and Cybersecurity , Ethernet Media Converters , Ethernet to Fiber Converters , Media Converters , Converters , MOXA IMC-101 Series

MOXA IMC-101-S-SC-80 Ethernet to Fiber Converter

Model: IMC-101-S-SC-80

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA IMC-101-S-SC-80 FEATURES

1 x 10/100BaseT(X) Port (RJ45 connector)
1 x 100BaseFX Port (single-mode SC connector)
80 KM Typical data transmission distance on fiber
12 to 45 VDC input power range
IP30-rated Metal body design
DIN-rail mounting
0 to 60°C operating temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA IMC-101-S-SC-80 INTRODUCTION

For industries that require reliable and efficient media conversion, the Moxa IMC-101-S-SC-80 Ethernet to fiber converter can be a suitable choice. This converter can be used in diverse industries, including factory automation and IP surveillance. With a 200 mA input current and voltage range of 12 to 45 VDC, the IMC-101-S-SC-80 converter offers exceptional power management. It also guarantees reliable operation via the use of features such as overload current protection and a terminal block power connector. First introduced as the Moxa industrial network infrastructure, the Moxa IMC-101-S-SC-80 Ethernet media converter is now a versatile and dependable solution for industrial applications.

Rugged Design for Harsh Industrial Environments

The Moxa IMC-101-S-SC-80 converter is capable of handling harsh industrial environments. Its metal housing is IP30-rated, offering protection against dust and other external elements. The DIN-rail mounting option of the Moxa IMC-101-S-SC-80 media converter facilitates easy and secure installation in industrial settings, and the operating temperature range of 0 to 60°C (32 to 140°F) maintains performance in demanding environments. In addition, the Moxa Ethernet media converter can withstand environments with high humidity because it supports a wide ambient relative humidity of 5 to 95%.

Long-Distance Fiber Connectivity

The Moxa IMC-101-S-SC-80 converter has a 10/100BaseT(X) port and 100BaseFX single-mode SC connector conversion capabilities that enable long-distance network communication. The single-mode transmission distances of up to 80 km allow extensive network coverage without compromising performance, a valuable feature for industries like factory automation and IP surveillance. The IMC 101 S SC 80 provides reliable and secure data transmission, regardless of the existing industrial and environmental challenges. You can see more details and specifications in the Moxa IMC-101-S-SC-80 datasheet.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA IMC-101-S-SC-80 Ethernet to Fiber Converter online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the IMC-101-M-ST, IMC-101-S-SC-T, and IMC-101-M-SC models in the MOXA IMC-101 Series.

MOXA IMC-101-S-SC-80 CERTIFICATIONS

Being certified for EMC, EMI, and EMS, as well as shock and vibration resistance, the Moxa IMC-101-S-SC-80 Ethernet to fiber converter has proven itself to be a valuable member of the Moxa IMC-101 series. This converter is built to perform efficiently in challenging industrial conditions and provide top-notch connectivity. Choose the Moxa IMC-101-S-SC-80 Ethernet converter for maximum quality and uninterrupted connectivity across long distances.

Ethernet to Fiber : Interface
10/100Mb RJ45 (Megabit) Ports	Yes : 1 Port
10/100/1000Mb RJ45 (Gigabit) Ports	No
10/100Mb (Megabit) POE Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	Yes : 1 SC Port
1000Mb Fiber optic single mode (Gigabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	No
M12 port	No
Alert Output	Yes
Magnetic Isolation Protection	1.5 kV (built-in)
Ethernet to Fiber : Standards and protocols
Protocols and work standards	-
Ethernet to Fiber : General
Maximum cable length for data transfer	80Km on the fiber
MTBF	401,000 hour
Ethernet to Fiber : Power Requirements
Input Voltage	12 to 45 VDC
Input Current	200 mA @ 12 to 45 VDC
Type of power input	Terminal block
Overload Current Protection	Supported
Power Consumption	200 mA @ 12 to 45 VDC
Ethernet to Fiber : Physical Characteristics
Standards and Certifications	EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: EN 60950-1, UL 60950-1; Vibration: IEC 60068-2-6; Hazardous Locations: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2; Maritime: DNV; IP30; MIL-HDBK-217F
Housing	Metal
Dimensions	53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight	630 g (1.39 lb)
Operating Temperature	0 to 60°C (32 to 140°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operation Humidity	5 to 95% (non-condensing)
Installation	DIN-rail mounting
