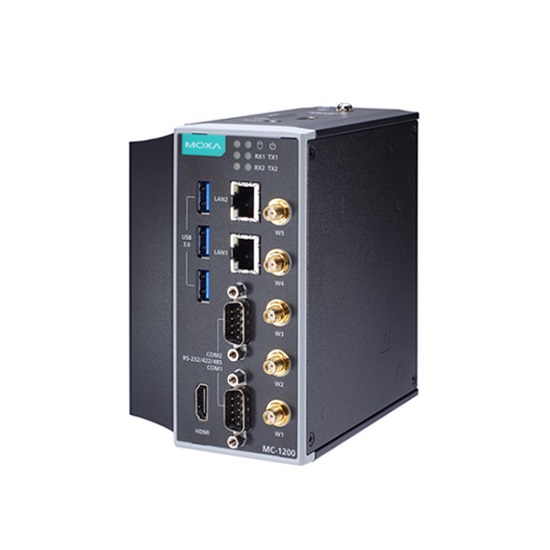

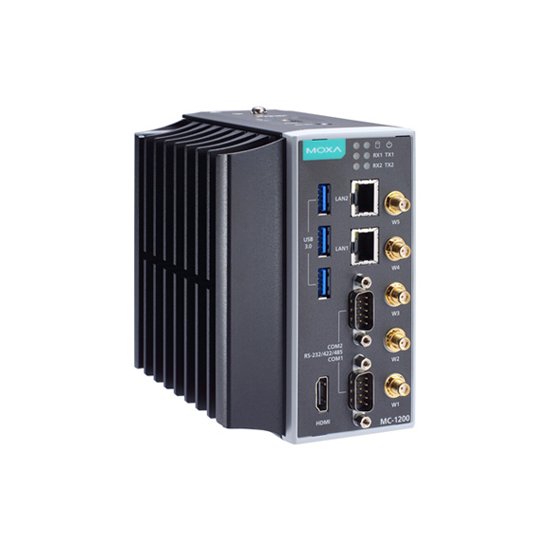

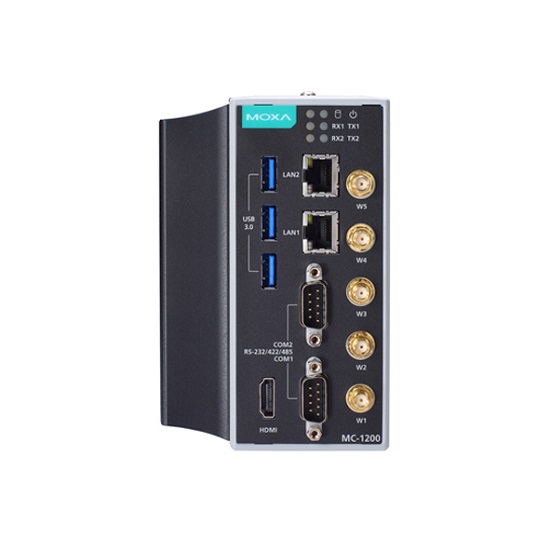

MOXA MC-1220-KL1-T-S Wide Temperature Computer
- Model: MC-1220-KL1-T-S
MOXA MC-1220-KL1-T-S INTRODUCTION
The MC-1200 Series computers are built around a 7th-generation Intel® Celeron® or Intel® Core™ i3, i5, or i7 processor and come with 1 HDMI display port, 3 USB 3.0 ports, 2 gigabit LAN ports, and 2 3-in-1 RS-232/422/485 serial ports. They are also equipped with a 2.5” HDD/SSD slot and a built-in TPM 2.0 module.
A modular design with three independent slots for flexible system integration and expansion provides additional value and convenience. Users can add various communications modules, including Wi-Fi, 3G, LTE, GPS, and mSATA expansion modules.
With UL Class 1 Division 2 compliance, the MC-1200 is sure
to deliver stable and reliable system operation for oil and gas applications.
Class 1 Division 2 (C1D2) is a certification issued to products that allow them
to be used in potentially hazardous environments. Examples of dangerous work
settings include locations where flammable or explosive gasses, certain
chemicals, airborne fibers, or vapors could be excessive under abnormal
circumstances.
The MC-1200 is designed to operate reliably in extreme conditions, such as continuous exposure to low or high temperatures, humidity, high vibration, and power surges. It is perfect for heavy industry, the solar grid, water/wastewater, oil and gas, and transportation applications.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA MC-1220-KL1-T-S Wide Temperature Computer online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the MC-1220-KL5-T-S, MC-1220-KL7-T-S, and MC-1220-KL5-T models in the MOXA MC-1200 Series.
MOXA MC-1220-KL1-T-S CERTIFICATIONS

| Industrial Computer : Computer | |
| CPU | Intel® Celeron® Processor 3965U (2M Cache, 2.20 GHz) |
| Supported OS | Linux Debian 9, 64-bit, kernel 4.9 (optional via CTOS), Windows 10 Enterprise LTSC 1809 64-bit (optional via CTOS) |
| OS (pre-installed) | - |
| System Memory | SODIMM DDR4 slot x 2, up to 32 GB max |
| Graphics Controller | Intel® HD Graphics 610 |
| Storage Slot | mSATA slots x 1, SATA 3.0, internal mini-PCIe socket |
| Industrial Computer : Interface | |
| LAN | 2 x 10/100/1000BaseT(X) Ports (RJ45 connector) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Digital Input/Output Channels | - |
| Serial Ports | 2 x RS-232/422/485 (software selectable), DB9 male connector |
| USB | 3 x USB 3.0 hosts, type-A connectors |
| Expansion Slot | 3 x mPCIe |
| Industrial Computer : Serial Communication Parameters | |
| Data Bits | - |
| Stop Bits | - |
| Parity | - |
| Flow Control | RTS/CTS, XON/XOFF |
| Baudrate | 50 bps to 115.2 kbps |
| Industrial Computer : Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Industrial Computer : LED Indicators | |
| System | Power x 1 |
| LAN | - |
| Serial | 2 per port (Tx, Rx) |
| Industrial Computer : Power Requirements | |
| Input Voltage | 9 to 36 VDC |
| Input Current | 8 A @ 9 VDC, 2 A @ 36 VDC |
| Power Consumption | 72 W |
| Industrial Computer : General | |
| Alert Tools | Built-in RTC (real-time clock) with lithium battery backup |
| Automatic Reboot Trigger | - |
| MTBF | 510,913 hrs |
| Industrial Computer : Physical Characteristics | |
| Dimensions | 134 x 60.4 x 120 mm (5.28 x 2.38 x 4.72 in) |
| Housing | Metal |
| Operating temperature | -40 to 70°C (-40 to 158°F |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL 60950-1, UL 62368-1, EN 60950-1, EN 62368-1; EMC: EN 55032/35, CISPR 32, FCC Part 15B Class A; Hazardous Locations: ATEX Zone 2, IECEx Zone 2, Class I Division 2; Shock: IEC 60068-2-27 Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB |
| Weight | 1.40 kg (0.63 lb) |
| Mounting | Wall mounting (with optional kit), DIN-rail mounting |
