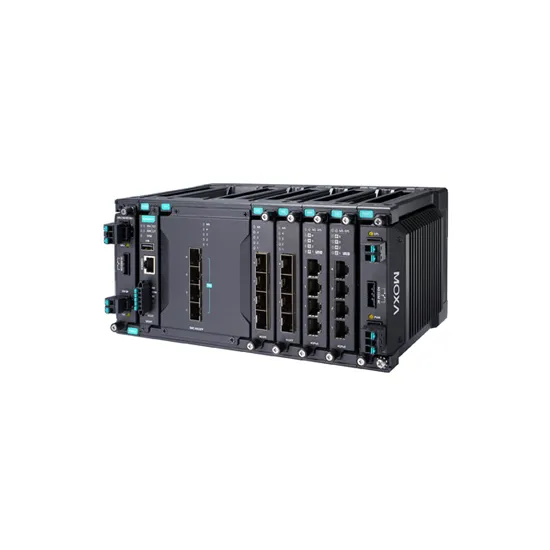

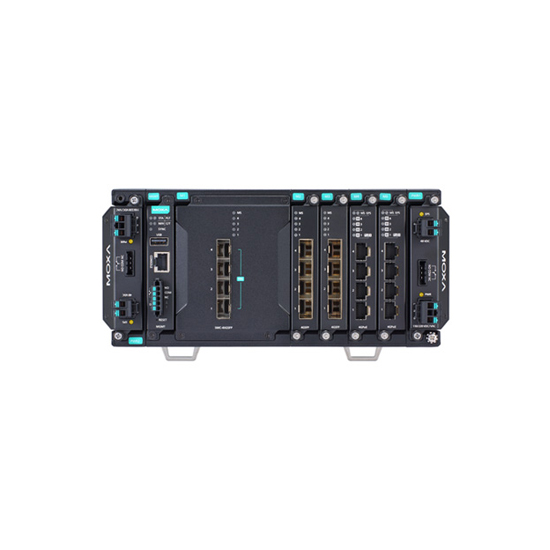

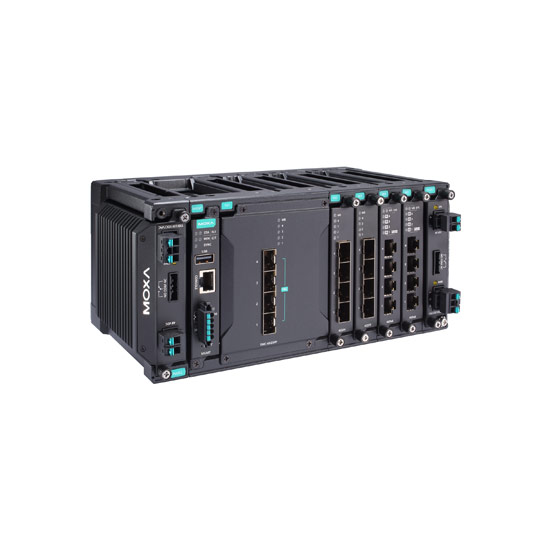

MOXA MDS-G4020-L3-4XGS-T Rackmount Ethernet Switch

Tags: Industrial Network Infrastructure , Ethernet Switches , Managed Ethernet Switches , Managed Switches , Layer 3 Managed Switches , Layer 3 Switches , PoE Switches , Industrial Ethernet and Cybersecurity , Industrial Ethernet Switches , Switches , MOXA MDS-G4020-L3-4XGS Series

MOXA MDS-G4020-L3-4XGS-T Rackmount Ethernet Switch

Model: MDS-G4020-L3-4XGS-T

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA MDS-G4020-L3-4XGS-T FEATURES

Modular Managed Ethernet Switch
Layer 3 routing functionality
Pre-installed Modules: 4 x Embedded 10 Gigabit ports
4 x Slots for optional 4-port FE/GE modules
24 to 48 VDC or 110 to 220 VDC/VAC Input power ranges
IP40-rated Rugged die-cast design
DIN-rail, Wall, and Rack mounting
-40 to 75°C operating temperature range

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA MDS-G4020-L3-4XGS-T INTRODUCTION

The MDS-G4020-L3-4XGS Series modular switches support 4 10GbE + 16 Gigabit ports, including 4 embedded ports, 4 interface module expansion slots, and 2 power module slots to ensure sufficient flexibility for a variety of applications. The highly compact MDS-G4020-L3-4XGS Series is designed to meet evolving network requirements, ensuring effortless installation and maintenance, and features a hot-swappable module design that enables you to easily change or add modules without shutting down the switch or interrupting network operations.

The multiple Ethernet modules (RJ45 and SFP) and power units (24/48 VDC and 110/220 VAC/VDC) provide even greater flexibility as well as suitability for different operating conditions, delivering an adaptive full Gigabit platform that provides the versatility and bandwidth necessary to serve as an Ethernet aggregation/edge switch. Featuring a compact design that fits in confined spaces, multiple mounting methods, and convenient tool-free module installation, the MDS-G4020-L3-4XGS Series switches enable versatile and effortless deployment without the need for highly skilled engineers. With multiple industry certifications and highly durable housing, the MDS-G4020-L3-4XGS Series can reliably operate in tough and hazardous environments such as power substations, mining sites, ITS, and oil and gas applications. Support for dual LV or HV power modules provides redundancy for high reliability and availability, and also offers flexibility to accommodate the power requirements of different applications.

Support for Layer 3 routing functionality enables these switches to facilitate the deployment of applications across different networks, making them ideal for large-scale industrial networks. In addition, the MDS-G4020-L3-4XGS Series features an HTML5–based, user-friendly web interface providing a responsive, smooth user experience across different platforms and browsers.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA MDS-G4020-L3-4XGS-T Rackmount Ethernet Switch online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the MDS-G4028-L3-4XGS-T model in the MOXA MDS-G4028-L3-4XGS Series.

MOXA MDS-G4020-L3-4XGS-T CERTIFICATIONS

Switch and Hub : Interface
Number of ports	20 Ports
10/100Mb RJ45 (Megabit) Ports	Up to 16 ports
10/100/1000Mb RJ45 (Gigabit) Ports	Up to 16 ports
100Mb Fiber optic multi mode (Megabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	No
100Mb SFP Fiber optic (Megabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	Up to 16 ports
10/100Mb (Megabit) POE Ports	No
10/100/1000Mb (Gigabit) POE Ports	No
Other ports	Yes : 4 x 10G SFP+ Slots, 4 x Slots for optional 4-port FE/GE modules, 1 x Console Port, 1 x USB Port (Type A connector), 1 x Digital Input Channel (On MGMT Module), 3 x Alarm Contact Channel (On MGMT, PWR1, PWR2 Module)
Switch and Hub : Features and Capabilities
Backup	No
Switch and Hub : LED Indicators
LED Per Port	Yes
Switch and Hub : Power Requirements
Input Voltage	With PWR-HV-P48–A installed: 110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz, PoE: 48 VDC; With PWR-LV-P48–A installed: 24/48 VDC, PoE: 48 VDC; With PWR-HV-NP installed: 110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz; With PWR-LV-NP installed: 24/48 VDC
Input Current	With PWR-HV-P48-A/PWR-HV-NP installed: Max. 0.38 A @ 110 VDC, Max. 0.20 A @ 220 VDC, Max. 0.75 A @ 110 VAC, Max. 0.48 A @ 220 VAC; With PWR-LV-P48-A/PWR-LV-NP installed: Max. 1.90 A @ 24 VDC, Max. 0.95 A @ 48 VDC; EPS (PoE models only): Max. 8.2 A @ 48 VDC
Operating Voltage	With PWR-HV-P48–A installed: 88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz, PoE: 46 to 57 VDC; With PWR-LV-P48–A installed: 18 to 72 VDC, PoE: 46 to 57 VDC; With PWR-HV-NP installed: 88 to 300 VDC, 90 to 264 VAC, 47 to 63 H: With PWR-LV-NP installed: 18 to 72 VDC
Power Input Plugin ( Redundant )	No
Power Consumption	With PWR-HV-P48-A/PWR-HV-NP: Max. 41.8 W @ 110 VDC, Max. 44.2 W @ 220 VDC, Max. 46.6 W @ 110 VAC, Max. 46.5 W @ 220 VAC, With; PWR-LV-P48-A/PWR-LV-NP: Max. 45.8 W @ 24 VDC, Max. 45.8 W @ 48 VDC
Switch and Hub : General
Fan / Fanless	Fanless
MTBF	794,302 hrs
Switch and Hub : Switch Specifications
Most forwarding speed	-
Network working layers	Layer 3
Switch type	Managed
Port Aggregation	Yes
Switch and Hub : Physical Characteristics
Dimensions	239 x 115 x 163.25 mm (9.41 x 4.53 x 6.43 in); 254 x 115 x 163.25 mm (10 x 4.53 x 6.43 in) with dual PWR-HV-P48-A/PWR-LV-P48-A power modules installed
Housing	Rugged die-cast
Installation	DIN-rail mounting, Wall mounting (with optional kit), Rack mounting (with optional kit)
Operating Temperature	-40 to 75°C (-40 to 167°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35, EN 61000-6 2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11; Safety: EN 62368-1, IEC 62368-1, UL 62368-1, IEC 60950-1, UL 61010-2-201, EN 61010-2-201; Railway: EN 50121-4; Traffic Control: NEMA TS2; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-31; Vibration: IEC 60068-2-6; Power Substation: IEC 61850-3, IEEE 1613; IP40; Telcordia SR332
Storage Temperature	-40 to 85°C (-40 to 185°F)
Weight	3,400 g (7.50 lb)
Switch and Hub : Standards and Protocols
Protocols and work standards	STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, MRP, MSTP, Network Loop Protection, IPv4, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, EtherNet/IP, 802.1X, QoS, HTTPS, HTTP, Modbus TCP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog
Protocols and management standards	IPv4, ARP, Flow control, Back Pressure Flow Control, DHCP Relay Agent (Option 82), Fiber check, RARP, LLDP, Linkup Delay, Port Mirroring (SPAN, RSPAN), SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier
Switch and Hub : Package Checklist
Hardware installation guide	Yes
Power adapter	No
Power cable	No
