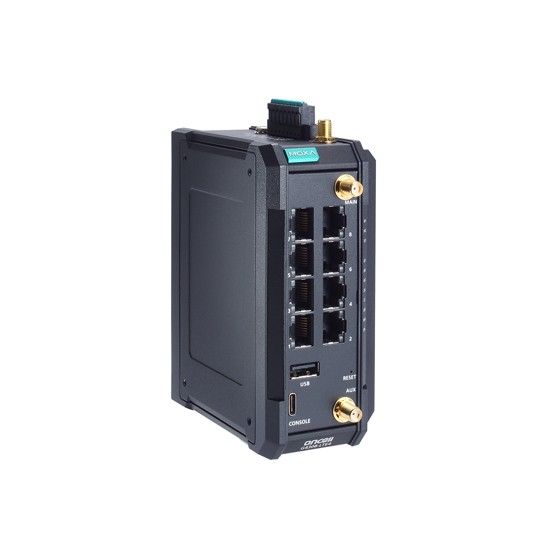

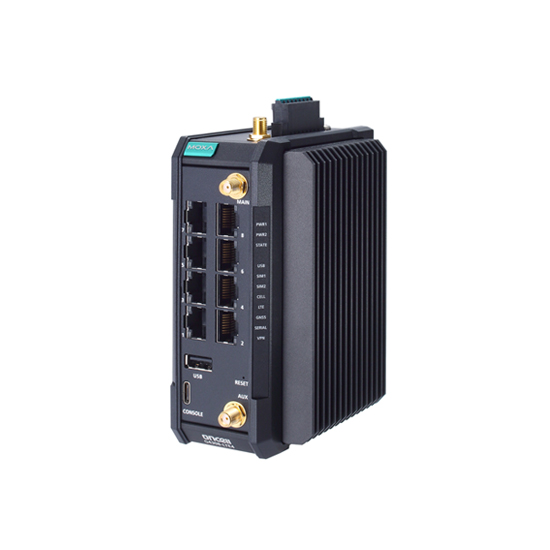

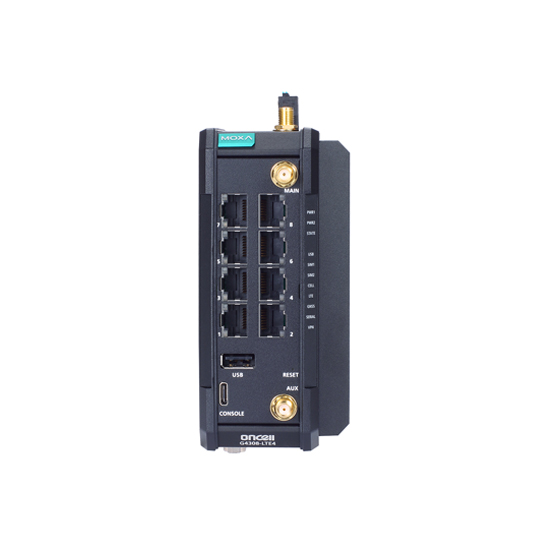

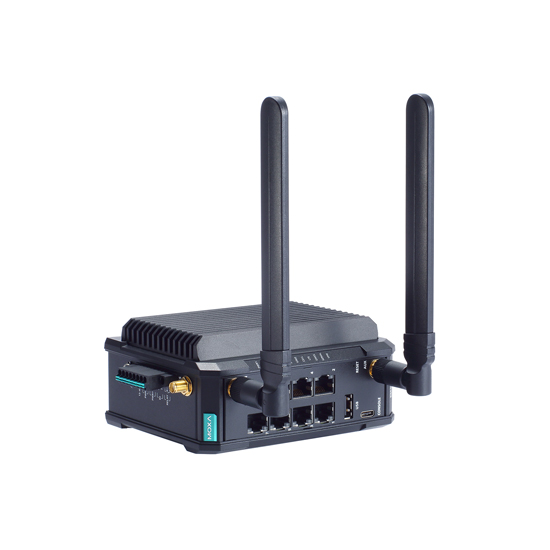

MOXA OnCell G4308-LTE4-GL-T Industrial Cellular Router

MOXA OnCell G4308-LTE4-GL-T Industrial Cellular Router
  • Model: OnCell G4308-LTE4-GL-T
$0.00
Ex Tax: $0.00

MOXA OnCell G4308-LTE4-GL-T FEATURES

  • Supports Global Frequency Bands
  • Supports LTE CAT 4, HSPA, UMTS Standards
  • 8 x 10/100/1000BaseT(X) Ports (RJ45 connector)
  • 1 x RS-232/422/485 Serial Port (DB9-M connector)
  • 12 to 48 VDC Dual power inputs
  • DIN-rail and Wall mounting
  • IP40-rated metal body design
  • -30 to 70°C Operating Temperature
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA OnCell G4308-LTE4-GL-T INTRODUCTION

The OnCell G4308-LTE4 Series is a reliable and powerful secure cellular router with global LTE coverage. This router provides reliable data transfers from serial and Ethernet to a cellular interface that can be easily integrated into legacy and modern applications. WAN redundancy between the cellular and Ethernet interfaces guarantees minimal downtime, while also providing extra flexibility. To enhance cellular connection reliability and availability, the OnCell G4308-LTE4 Series features GuaranLink with dual SIM cards. Moreover, the OnCell G4308-LTE4 Series features dual power inputs, high-level EMS, and a wide operating temperature for deployment in demanding environments. Through the power management function, administrators can set up schedules to fully control the OnCell G4308-LTE4 Series’ power usage and minimize power consumption when idle to save cost.

Designed for robust security, the OnCell G4308-LTE4 Series supports Secure Boot to ensure system integrity, multi-layer firewall policies for managing network access and traffic filtering, and VPN for secure remote communications.

  • Highly Integrated Industrial Cellular Routers
  • Integrated LTE Cat. 4 module with global band
  • 8 Gigabit ports with managed Layer 2 switch functions
  • Supports serial devices with the 3-in-1 RS232/422/485 port
  • Supports MRC Quick Link Ultra for remote access and is easy to configure

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA OnCell G4308-LTE4-GL-T Industrial Cellular Router online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the OnCell G4308-LTE4-GL model in the MOXA OnCell G4308 Series.

MOXA OnCell G4308-LTE4-GL-T CERTIFICATIONS



3G Modem : Interface
SIM card slot Yes : 2 x Nano slots (Push-eject tray type)
Ethernet Ports Yes : 8 x 10/100/1000BaseT(X) Ports (RJ45 connector)
WAN Yes
USB Yes : 1 x USB 2.0 Type A
Digital Input and Output Yes : 1 x Digital Output Channel (Relay output with current carrying capacity of 1 A @ 24 VDC), 1 x Digital Input Channel (-30 to +3 V for state 0, +13 to +30 V for state 1)
Serial port Yes : 1 x RS-232/422/485 port (DB9 male connector)
Alert Output No
Cellular Standards LTE CAT 4, HSPA, UMTS
Band Options LTE B1: (2100 MHz) / B2 (1900 MHz) / B3 (1800 MHz) / B4 (1700/2100 MHz (AWS)) / B5 (850 MHz) / B7 (2600 MHz) / B8 (900 MHz) / B12 (700 MHz) / B13 (700 MHz) / B14 (700 MHz) / B20 (800 MHz) / B25 (1900 MHz) / B26 (850 MHz) / B28 (700 MHz); UMTS/HSPA: B1 (2100 MHz) / B2 (1900 MHz) / B4 (1700 MHz(AWS)) / B5 (850 MHz) / B6 (800MHz) / B8 (900 MHz) / B19 (800 MHz)
Cellular Antenna Connectors 2 x SMA female
WLAN Standards No
WLAN Antenna Connector No
GPS Antenna Connector 1 x SMA female
3G Modem : Radio specifications
Radio Connection type GuaranLink
Maximum data transfer speed of 2G -
Maximum data transfer speed of 3G -
Maximum data transfer speed of 4G 20 MHz bandwidth: 150 Mbps DL, 50 Mbps UL
WiFi Radio Frequency No
3G Modem : Software Specifications
VPN NAT, IPsec VPN, OpenVPN
Firewall Filter: DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports, DPI
Routing Redundancy VRRP
Management Back Pressure Flow Control, GuaranLink, LLDP, Moxa Remote Connect (MRC), MXconfig, MXsecurity3, MXview One, Power Management, Remote SMS Control, Syslog
Time Management NTP Server/Client, SNTP
3G Modem : General
LED Indicators PWR1, PWR2, STATE, USB, SIM1, SIM2, CELL, LTE, GNSS, SERIAL, VPN
Operating mode LTE Router
MTBF 1,533,742 hrs
3G Modem : Standards and protocols
Protocols DPI, DDNS, DHCP Server/Client, SMTP, SNMPv1/v2c/v3, ARP, Telnet, TCP/IP, UDP, IPsec
3G Modem : Features and capabilities
Send and receive SMS Yes
3G Modem : Security
Security and Encryption Hardware-based Security: Secure Boot; IPsec VPN Encryption: DES, 3DES, AES-128, AES-192, AES-256; OpenVPN Encryption: AES-128/192/256 CBC, AES-128/192/256 GCM, CHACHA20-POLY1305
Authentication Security: Authentication Local database, RADIUS, Access Control List; IPsec VPN Authentication: MD5 and SHA (SHA-256), RSA (key size: 1024-bit, 2048-bit), Pre-shared Key or X.509 v3 certificate
3G Modem : Power Requirements
Power Connector Screw-locked terminal block
Power Consumption (Output Adapter) 47 mW at 12 V (idle), 11.05 W at 12 V (typ.), 14.28 W at 48 V (max.)
Input Voltage 12 to 48 VDC
POE Support No
Input Current 1.16 A (max.)
Reverse Polarity Protection Supported
3G Modem : Buttons
Power button No
Reset Yes
3G Modem : Physical Characteristics
Dimensions 125 x 58.2 x 100 mm (4.92 x 2.29 x 3.94 in)
Installations DIN-rail mounting, Wall mounting (with optional kit)
Housing Metal
Weight 707 g (1.56 lb)
Operating Temperature -30 to 70°C (-22 to 158°F)
Storage Humidity 5 to 95% (non-condensing)
Storage Temperature -40 to 85°C (-40 to 185°F)
Type of Use Harsh environment
Standards and Certifications EMC: EN 55032/35, EN 61000-6-2/-6-4, CISPR 32/35; EMI: ICES-003, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV (level 4)5, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (level 3); 1.8, 2.6, 3.5, 5GHz: 3V/m (level 2), IEC 61000-4-4 EFT: Power: 2 kV; IO: 1 kV (level 3)5, IEC 61000-4-5 Surge: Power: Power: 2 kV, Signal: 2 kV (level 3)5, IEC 61000-4-6 CS: 0.15 MHz to 80 MHz; Signal: 10 V (level 3), IEC 61000-4-8: 30 A/m (level 4); Freefall: IEC 60068-2-32; Radio Frequency: FCC ID, RI7LE910CXWWX, EN 303 413; Radio: RCM, IC: 5131A, LE910CXWWX, UKCA; Cellular Standards: EN 301 489-1/-19 (GPS), EN 301 489-1/-52 (WCDMA/LTE), EN 301 511, EN 301908-1/-2/-13; Cybersecurity: EN 18031-1; Safety: UL 62368-1, EN 62368-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP40; Telcordia Standard SR-332
