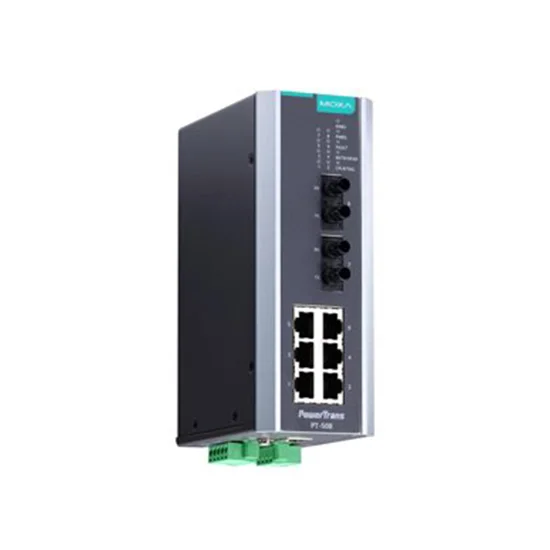

MOXA PT-508-MM-ST-HV Managed Ethernet Switch

MOXA PT-508-MM-ST-HV Managed Ethernet Switch
MOXA PT-508-MM-ST-HV Managed Ethernet Switch
MOXA PT-508-MM-ST-HV Managed Ethernet Switch
MOXA PT-508-MM-ST-HV Managed Ethernet Switch
Tags: Industrial Network Infrastructure , Industrial Ethernet Switches , Industrial Ethernet and Cybersecurity , Ethernet Switches , Layer 2 Managed Switches , Managed Ethernet Switches , Managed Switches , Layer 2 Switches , Switches , MOXA PT-508 Series
MOXA PT-508-MM-ST-HV Managed Ethernet Switch
  • Model: PT-508-MM-ST-HV
Moxa Moxa
Based on 0 reviews. - Write a review
$0.00
Ex Tax: $0.00
Add to Cart
Buy Now Enquire Now
Add to Wish List Compare this Product

MOXA PT-508-MM-ST-HV FEATURES

  • 6 x 10/100BaseT(X) Ports (RJ45 connector)
  • 2 x 100BaseFX Ports (multi-mode ST connector)
  • 5 KM Typical data transmission distance on fiber
  • DIN-rail mounting
  • 110/220 VAC/VDC input power range
  • IP40-rated Aluminum body design
  • -40 to 85°C operating temperature range


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA PT-508-MM-ST-HV INTRODUCTION

The PowerTrans PT-508 Series is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-508’s optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (24 VDC or 48 VDC), and isolated power inputs (24 VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-rail and wall mounting design of the PT-508 switches simplify network planning and allow greater flexibility by letting you install up to 8 Fast Ethernet ports for power distribution applications.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA PT-508-MM-ST-HV Managed Ethernet Switch online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the PT-508-MM-SC-48, PT-508-MM-LC-HV, and PT-508-MM-LC-24 models in the MOXA PT-508 Series.

MOXA PT-508-MM-ST-HV CERTIFICATION



Switch and Hub : Interface
Number of ports 8 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 6 Ports
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports Yes : 2 ST Ports
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 1 x RS-232 Consoles Port (RJ45 connector), 1 x Alarm Contact Channel
Switch and Hub : Features and Capabilities
Backup Yes : ABC-01
Switch and Hub : LED Indicators
LED Per Port Yes
Switch and Hub : Power Requirements
Input Voltage 110/220 VAC/VDC (88 to 300 VAC, 85 to 264 VDC)
Input Current 0.18/0.11 A @ 110/220 VAC, 0.084/0.043 A @ 110/220 VDC
Operating Voltage -
Power Input Plugin ( Redundant ) Yes
Power Consumption -
Switch and Hub : General
Fan / Fanless Fanless
MTBF 394,238 hrs
Switch and Hub : Switch Specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation Yes
Switch and Hub : Physical Characteristics
Dimensions 60 x 160 x 110 mm (2.36 x 6.30 x 4.33 in)
Housing Aluminum
Installation DIN-rail mounting, DIN-rail mounting (with optional kit)
Operating Temperature -40 to 85°C (-40 to 185°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications EMI: EN 55032 Class A, CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs; Power Substation: IEC 61850-3, IEEE 1613; Safety: UL 508; IP40; Telcordia SR332
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 995 g (2.21 lb)
Switch and Hub : Standards and Protocols
Protocols and work standards EtherNet/IP, Modbus TCP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Protocols and management standards Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q, GMRP, GVRP, IGMP v1/v2c, Port-based VLAN, VLAN unaware
Switch and Hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
