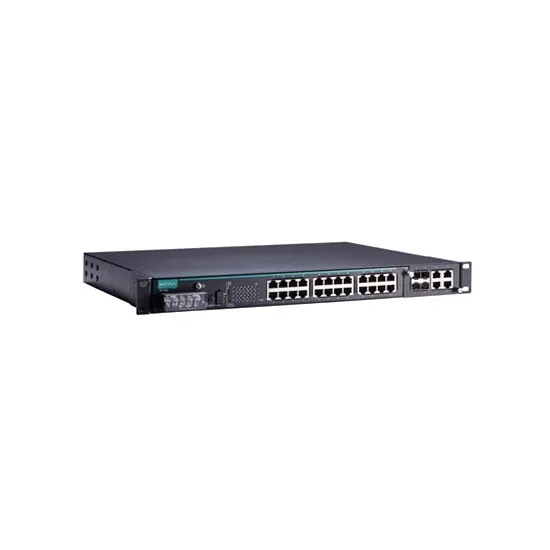

MOXA PT-7528-24TX-WV Managed Rackmount Ethernet Switch

MOXA PT-7528-24TX-WV Managed Rackmount Ethernet Switch
MOXA PT-7528-24TX-WV Managed Rackmount Ethernet Switch
MOXA PT-7528-24TX-WV Managed Rackmount Ethernet Switch
MOXA PT-7528-24TX-WV Managed Rackmount Ethernet Switch
Tags: Industrial Network Infrastructure , Industrial Ethernet Switches , Industrial Ethernet and Cybersecurity , Ethernet Switches , Layer 2 Managed Switches , Managed Ethernet Switches , Managed Switches , Layer 2 Switches , Rackmount Switches , Rackmount Ethernet Switches , Switches , MOXA PT-7528 Series
MOXA PT-7528-24TX-WV Managed Rackmount Ethernet Switch
  • Model: PT-7528-24TX-WV
Moxa Moxa
Based on 0 reviews. - Write a review
$0.00
Ex Tax: $0.00
Add to Cart
Buy Now Enquire Now
Add to Wish List Compare this Product

MOXA PT-7528-24TX-WV FEATURES

  • 24 x 10/100BaseT(X) Ports (RJ45 connector)
  • 24/48 VDC input power range
  • IP40-rated Aluminum body design
  • Rackmount installation design
  • -40 to 85°C operating temperature


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA PT-7528-24TX-WV INTRODUCTION

The PT-7528 Series is designed for power substation automation applications that operate in extremely harsh environments. The PT-7528 Series supports Moxa’s Noise Guard technology, is compliant with IEC 61850-3, and its EMC immunity exceeds IEEE 1613 Class 2 standards to ensure zero packet loss while transmitting at wire speed. The PT-7528 Series also features critical packet prioritization (GOOSE and SMVs), a built-in MMS server, and a configuration wizard designed specifically for substation automation.
With Gigabit Ethernet, redundant ring, and 110/220 VDC/VAC isolated redundant power supplies, the PT-7528 Series further increases the reliability of your communications and saves cabling/wiring costs. The wide range of PT-7528 models available support multiple types of port configuration, with up to 28 copper or 24 fiber ports, and up to 4 Gigabit ports. Taken together, these features allow greater flexibility, making the PT-7528 Series suitable for a variety of industrial applications.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA PT-7528-24TX-WV Managed Rackmount Ethernet Switch online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the PT-7528-24TX-WV-HV, PT-7528-24TX-HV, and PT-7528-24TX-WV-WV models in the MOXA PT-7528 Series.

MOXA PT-7528-24TX-WV CERTIFICATION



Switch and Hub : Interface
Number of ports 24 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 24 Ports
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 1 x USB Port (Type A connector), 1 x Console Port (Type B connector), 1 x Alarm Contact Channel
Switch and Hub : Features and Capabilities
Backup Yes : ABC-02
Switch and Hub : LED Indicators
LED Per Port Yes
Switch and Hub : Power Requirements
Input Voltage 24/48 VDC (18 to 72 VDC)
Input Current 0.741 A @ 24 VDC, 0.364 A @ 48 VDC
Operating Voltage -
Power Input Plugin ( Redundant ) No
Power Consumption -
Switch and Hub : General
Fan / Fanless Fanless
MTBF 771,320 hrs
Switch and Hub : Switch Specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation Yes
Switch and Hub : Physical Characteristics
Dimensions 440 x 44 x 325 mm (17.32 x 1.73 x 12.80 in)
Housing Aluminum
Installation 19-inch rack mounting
Operating Temperature -40 to 85°C (-40 to 185°F), Cold start requires minimum of 100 VAC @ -40°C
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications EMI: EN 55032 Class A, CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11; Safety: UL 508; Power Substation: IEC 61850-3, IEEE 1613 Class 2; Railway: EN 50121-4; Traffic Control: NEMA TS2; IP40; Telcordia SR332
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 4900 g (10.89 lb)
Switch and Hub : Standards and Protocols
Protocols and work standards EtherNet/IP, Modbus TCP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Protocols and management standards Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Fiber check, 802.1Q, GMRP, GVRP, IGMP v1/v2c, Port-based VLAN, VLAN unaware
Switch and Hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
