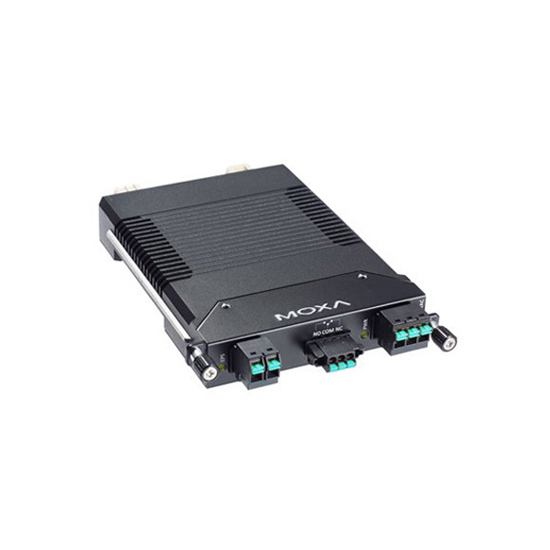

MOXA PWR-HV-P48 Power Module

MOXA PWR-HV-P48 Power Module
  • Model: PWR-HV-P48
$0.00
Ex Tax: $0.00

MOXA PWR-HV-P48 FEATURES

  • Hot-swappable Power Module for MOXA Switches
  • IEC 61850-3 and IEEE 1613 compliant
  • 110/220 VDC/VAC Input voltage range (48 VDC for PoE)
  • 88/300 VDC, 90/264 VAC Operating voltage range (46 to 57 VDC for PoE)
  • -40 to 85°C operating temperature range


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA PWR-HV-P48 INTRODUCTION

The PWR Power Module Series hot-swappable power modules are designed for the PT-G7828 Layer 3 and PT-G7728 Layer 2 IEC 61850-3 Ethernet switches. The power modules allow the switches to use 24/48 VDC or 110/220 VAC/VDC.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA PWR-HV-P48 Power Module online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the PWR-LV-NP, PWR-HV-NP, and PWR-LV-P48 models in the MOXA PWR Power Module Series.

MOXA PWR-HV-P48 CERTIFICATIONS



Power Supply : Power Requirements
Input 110/220 VDC/VAC for the switch system, 48 VDC for PoE systems (53 to 57 VDC is recommended for PoE+ devices)
Operating Voltage 88 to 300 VDC, 90 to 264 VAC for the switch system, 46 to 57 VDC for PoE systems
Output -
Over-voltage Protection -
Overload Protection -
Reverse Polarity Protection Supported
Power Supply : Physical Characteristics
Dimensions -
Housing -
Weight 340 g (0.75 lb)
Ambient Relative Humidity -
Operating Temperature -40 to 85°C (-40 to 185°F)
Storage Temperature -
Installation -
Standards and Certifications Telcordia (Bellcore), GB
MTBF 1,530,831 hrs
Power Supply : Supported Series
Supported Series PT-G7728 Series, PT-G7828 Series, MDS-G4012 Series, MDS-G4020 Series, MDS-G4028 Series, MDS-G4012-L3 Series, MDS-G4020-L3 Series, MDS-G4028-L3 Series
