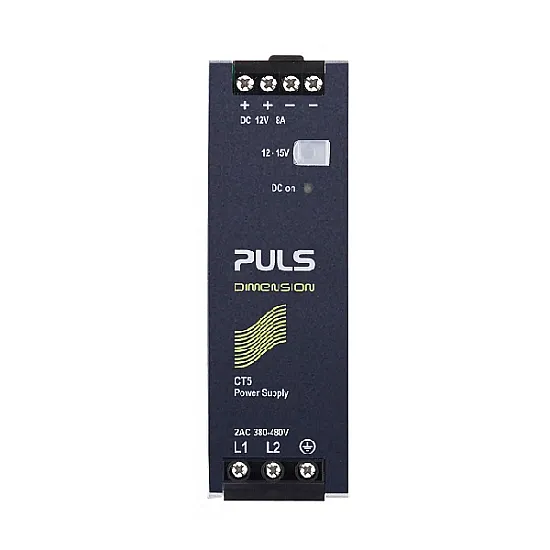

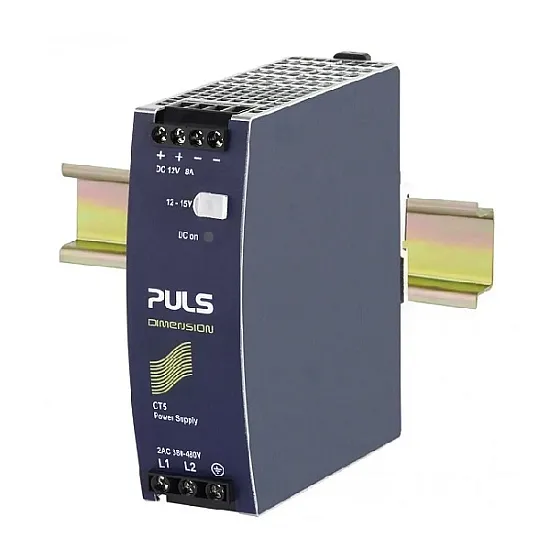

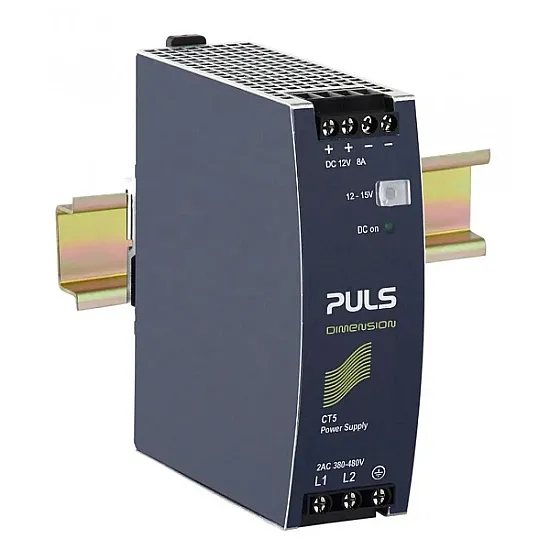

PULS CT5.241 DIN-rail Power Supply
PULS CT5.241 FEATURES
- AC 380 - 480V Wide-range Input
- Input Fuses Already Included
- Requires only Two Legs of a 3-phase System
- Width only 40mm
- Efficiency up to 90.4%
- 20% Output Power Reserves
- Input -Transient Blanking Circuit Included
- Minimal Inrush Current Surge
- Full Power Between -25°C and +60°C
PULS CT5.241 INTRODUCTION
The Dimension C-Series are cost optimized power supplies without compromising quality, reliability and performance. The C-Series is part of the DIMENSION power supply family.
The most outstanding features of CT5.241 are the high efficiency, electronic inrush current limitation, active input transient filter and wide operational temperature range, the small size and other technological design concepts.
The C-Series includes all the essential basic functions. The devices have a power reserve of 20% included, which may even be used continuously at temperatures up to +45°C.
The CT5.241 utilizes only 2 legs of a 3 3-phase system, which saves wiring and installation costs. Furthermore, this allows a smaller unit without compromising the size of the terminals. Due to the low power consumption, an unbalancing of the individual phases is not expected.
As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS CT5.241 DIN-rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the CT5.121 and CT10.241 models in the PULS DIN-Rail Power Supplies for 3-phase Systems Series.
PULS CT5.241 CERTIFICATIONS
