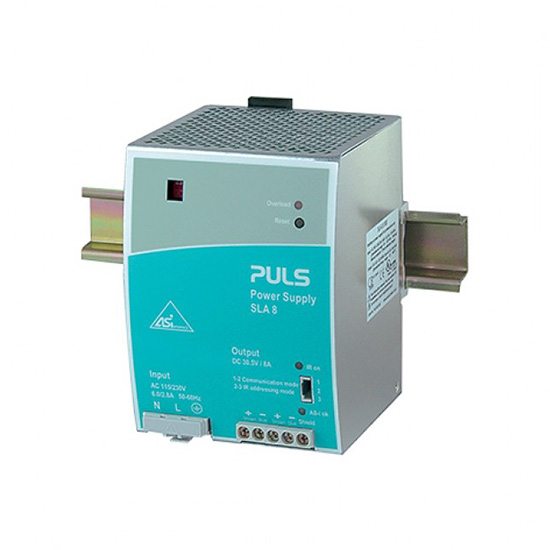

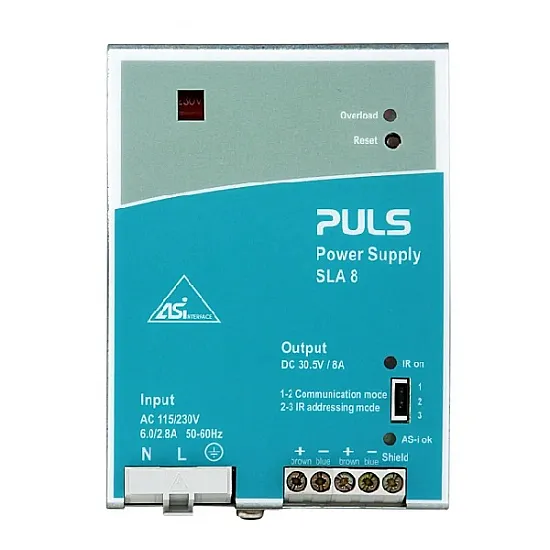

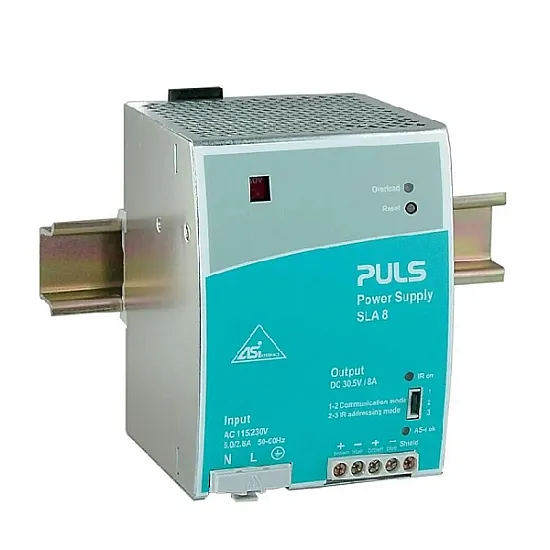

PULS SLA8.100 AS-Interface® Power Supply
PULS SLA8.100 INTRODUCTION
The primary switched-mode DIN rail power supply SLA8.100 specifically
supplies AS Interface® systems with energy. The AS-Interface bus technology allows connecting up to 62 participants to a control and supplying
them with energy with a single two-conductor cable. When connecting
slaves, the yellow AS-Interface cable offers a high degree of protection, IP67, in conjunction with the insulation displacement. The communication signals of the individual network participants are modulated onto
the supply voltage. For this purpose, specific power supply units with integrated data decoupling are required for AS-Interface systems.
Fast addressing of slaves:
The "IR addressing mode" selectable via jumper interrupts the data communication on the yellow AS-Interface cable. Participants with an infrared interface can then quickly be assigned a new ID address using an infrared programming unit without the need to disconnect them from the AS-Interface cable. Afterward, the "Communication Mode" can be selected again to restart the data communication.
Safe operation by FUSE Mode:
The device features a FUSE Mode, which permanently switches off the output in the event of failure and the unit at overload, short-circuit, or overtemperature, and thus protects the relatively thin AS-Interface line and the attached components. Triggering of the FUSE Mode is indicated by a flashing LED. System restart requires the intentional activation of a reset button on the front side of the unit. Thus, an accidental restart is prevented, and the slaves are protected against damage.
Fit for the world market:
The input voltage range of the unit can be selected on the front panel.
Thus, it can be operated worldwide on all usual single-phase line voltages. International (IEC 60950) and various national (CB scheme) approvals
allow for worldwide application.
As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS SLA8.100 AS-Interface® Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the SLA4.100 and SLA8.300 models in the PULS AS-Interface® Power Supply Series.
