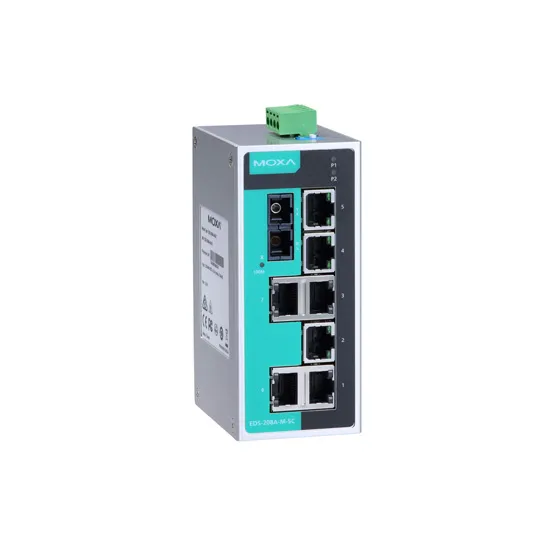

MOXA EDS-208A-SS-SC Unmanaged Ethernet Switch

The Moxa EDS-208A-SS-SC unmanaged Ethernet switch is an industrial-grade solution, designed to enhance network connectivity in industries such as oil and gas, factory automation, marine, road transportation, railway transportation, and other demanding applications. Enhancing industrial network infrastructure is vital for these industries and the Moxa EDS-208A-SS-SC switch is more than capable of handling the job. This Moxa Ethernet switch comes with a compact design and rugged housing that ensures the durability of the device. The EDS-208A-SS-SC switch supports redundant dual inputs of 12/24/48 VDC and an operating voltage of 9.6 to 60 VDC. With a plug-and-play setup, the Moxa EDS-208A-SS-SC Ethernet Switch minimizes configuration issues. All the models in the Moxa EDS-208A series have 8 Fast Ethernet ports to deliver stable and fast data transmission and increase overall network performance by connecting multiple devices.

High-Performance 8-Port Unmanaged Ethernet Switch

The Moxa EDS-208-SS-SC is an 8-port unmanaged Ethernet switch designed to provide seamless network connectivity in industrial environments. Equipped with six 10/100BaseT(X) RJ45 ports, it supports auto-negotiation speed for full and half-duplex modes to ensure optimal data transmission. The auto MDI/MDI-X connection feature eliminates the need for crossover cables, simplifying installation. It also offers two 100BaseFX Ports (single-mode SC connector) for more flexibility. With a 2K MAC table size and a 768 kbits packet buffer, the EDS-208-SS-SC facilitates efficient data handling and smooth network performance. Its store-and-forward processing mechanism enhances data integrity by filtering out erroneous packets before transmission, which makes this Moxa unmanaged Ethernet switch a reliable choice for factory automation, transportation, and industrial networking applications.

Durable Design for Industrial Environments

Built for rugged applications, the Moxa EDS-208-SS-SC switch features robust aluminum housing with an IP30 rating, which protects against dust and mechanical impacts. The compact design, measuring 50 x 114 x 70 mm (1.96 x 4.49 x 2.76 in) and weighing 275 g (0.61 lb), ensures easy installation in space-constrained environments. The EDS 208A SS SC supports DIN-rail mounting for seamless integration into control cabinets and wall mounting (with an optional kit) for flexible deployment. Engineered for industrial use, the EDS 208A SS SC switch operates reliably within a wide temperature range of -10 to 60°C (14 to 140°F) to bring forth stable performance even in challenging conditions.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA EDS-208A-SS-SC Unmanaged Ethernet Switch online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the EDS-208A-SS-SC-T, EDS-208A-S-SC, EDS-208A-MM-SC, and EDS-208A models in the MOXA EDS-208A Series.
