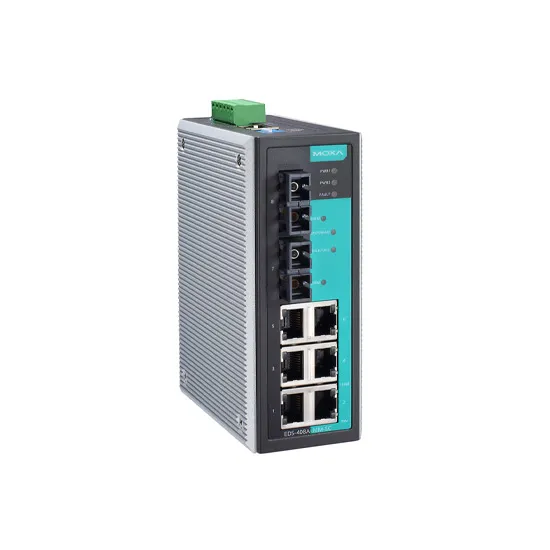

MOXA EDS-408A-SS-SC-T Managed Ethernet Switch
MOXA EDS-408A-SS-SC-T FEATURES
- 6 x 10/100BaseT(X) Ports (RJ45 connector)
- 2 x 100BaseFX Ports (single-mode SC connector)
- 40 KM Typical data transmission distance on fiber
- 12/24/48 VDC Redundant dual power inputs
- Din-rail and Wall mounting
- IP30-rated Metal body design
- -40 to 75°C operating temperature range
MOXA EDS-408A-SS-SC-T INTRODUCTION
The Moxa EDS-408A-SS-SC-T managed Ethernet switch is an industrial-grade solution specifically designed
to meet the demanding needs of various industries, including marine, oil and
gas, railway transportation, water and wastewater, factory automation, and road
transportation. The Moxa EDS-408A series features superior reliability,
redundancy, and security features based on IEC 62443 standards to ensure the
highest level of network security and resilience. The Moxa layer 2 managed Ethernet switch supports RSTP, STP, Turbo Chain, and Turbo Ring v1/v2 to
facilitate flawless network redundancy and continuous operations in
mission-critical applications. Also, the web-based management of the Turbo Ring
or DIP switch control simplifies the deployment of the EDS-408A-SS-SC-T.
Implement the Moxa EDS-408A-SS-SC-T for reliable and secure data transmission
and easy maintenance.
Reliable Managed Ethernet Switch with Enhanced Connectivity
The EDS 408A SS SC T
features six Ethernet 10/100BaseT(X) ports (RJ45 connector) with
auto-negotiation speed, full and half-duplex modes, and auto MDI/MDI-X
connection. It also comes with two 100BaseFX Ports (single-mode SC connector).
The Moxa EDS 408A SS SC T is easy to install and manage. Among the main reasons
why the Moxa EDS 408A-SS-SC-T switch is considered a valuable Moxa switch for
demanding environments is its industrial-grade durability and connectivity.
Rugged Design with a Wide Temperature Range
The Moxa EDS-408A-SS-SC-T managed switch comes in a durable metal housing built to withstand diverse
weather conditions. With DIN-rail mounting and wall-mounting installation
options, this industrial switch offers straightforward deployment. This IP30-rated
Moxa EDS-408A-SS-SC-T switch supports an operating temperature range of -40 to
75°C (-40 to 167°F) and a weight of 650 grams (1.44 lbs). The Moxa-managed Ethernet switch provides durable and reliable connectivity to operate well in
diverse and challenging operational environments.
Reliable Input Voltage with Redundant Dual Inputs
The Moxa EDS-408A-SS-SC-T Ethernet switch features redundant dual inputs connected through a removable
6-contact terminal block to deliver flexible power configurations. With a
redundant dual Input voltage range of 12/24/48 VDC, the EDS 408A SS SC T switch
facilitates reliable connectivity even during voltage fluctuations. This Moxa Ethernet switch also supports overload current protection and reverse polarity
protection to reinforce reliability under varying power conditions. Refer to
the Moxa EDS-408A-SS-SC-T datasheet for more information.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA EDS-408A-SS-SC-T Managed Ethernet Switch online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the EDS-408A-SS-SC, EDS-408A-T, EDS-408A-MM-SC-T, EDS-408A-MM-ST-T, and EDS-408A-3M-SC-T models in the MOXA EDS-408A Series.
MOXA EDS-408A-SS-SC-T CERTIFICATIONS
The Moxa EDS-408A-SS-SC-T managed Ethernet switch complies with industrial standards, including safety,
free-fall, and shock certifications. Additionally, the switch also provides FCC
and vibration certifications to verify the device's safety in challenging
environments, especially where substantial interference and physical stress are
present. The EN 50121-4 certification proves that the device is safe to use for
railway and transportation applications. NEMA TS2 certification ensures
reliable operation under severe temperatures, and maritime and Hazardous
Locations certification guarantees that the device is safe for offshore and
onshore applications that demand strict safety standards. The Moxa industrial network infrastructure strives to bring maximum efficiency in high-risk
environments.
