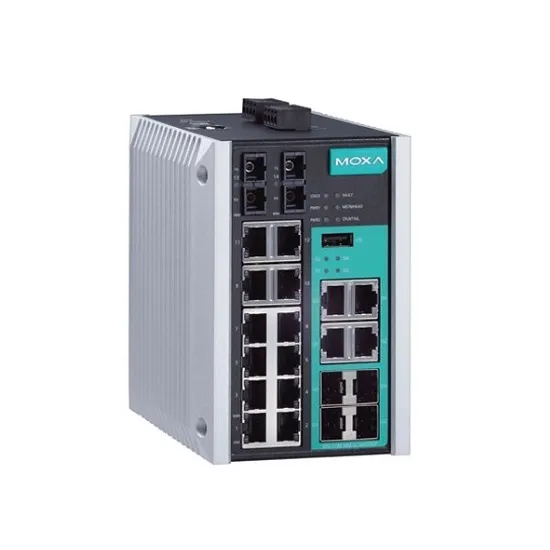

MOXA EDS-518E-SS-SC-4GTXSFP-T Managed Ethernet Switch
- Model: EDS-518E-SS-SC-4GTXSFP-T
MOXA EDS-518E-SS-SC-4GTXSFP-T FEATURES
- 12 x 10/100BaseT(X) Ports (RJ45 connector)
- 2 x 100BaseFX Ports (single-mode SC connector)
- 4 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
- 40 KM Typical data transmission distance on fiber
- 12 to 24 VDC Redundant dual power inputs
- Din-rail and Wall mounting
- IP30-rated Metal body design
- -40 to 75°C operating temperature range
MOXA EDS-518E-SS-SC-4GTXSFP-T INTRODUCTION
The Moxa EDS-518E series has developed brilliant solutions
to enhance industrial network infrastructure in various industries, including
power utility, railway transportation, marine, oil and gas, factory automation,
and road transportation. The Moxa EDS-518E-SS-SC-4GTXSFP-T managed Ethernet switch is a versatile and robust solution with a compact design and 18 ports to
provide flexible fiber-optic communication options. This Moxa EDS-518E-SS-SC-4GTXSFP-T switch is perfect for complex network applications where
reliable and secure network connectivity is essential. It also supports a
redundant dual input voltage of 12/24/48/-48 VDC that ensures continuous
operation and reliability even in the event of a power source failure. With
their advanced redundancy technologies, managed Ethernet switches of the Moxa industrial network infrastructure lineup enhance network reliability and
availability and provide advanced management and security features.
Comprehensive Connectivity Features
The Moxa EDS-518E-SS-SC-4GTXSFP-T managed switch comes with
a USB serial console port (Type B connector) for easy configuration and a USB
storage port (Type A connector) for convenient data storage. This Moxa Ethernet switch features twelve 10/100BaseT(X) Ports (RJ45 connector) with
auto-negotiation speed, full/half duplex mode, and auto MDI/MDI-X connection.
It also offers four combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) and
two 100BaseFX Ports (single-mode SC connector).
Rugged Design and Reliable Operating Temperature for Industrial Environments.
With an IP30-rated metal housing, the Moxa EDS 518E SS SC4GTXSFP T switch has been built with precision to withstand harsh environments.
This Moxa layer 2 Ethernet switch comes with the dimensions of 94 x 135 x 137
mm (3.7 x 5.31 x 5.39 in) and a weight of 1630 g (3.59 lb). Its DIN-rail
mounting and wall mounting options also provide installation options that
streamline the deployment process. In addition, the Moxa EDS-518E-SS-SC-4GTXSFP-T Ethernet switch supports a wide operating temperature
range of -40 to 75°C (-40 to 167°F) and can be stored in a temperature range of
-40 to 85°C (-40 to 185°F). Refer to the Moxa EDS-518E-SS-SC-4GTXSFP-T datasheet for more detailed specifications.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA EDS-518E-SS-SC-4GTXSFP-T Managed Ethernet Switch online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the EDS-518E-4GTXSFP-T, EDS-518E-MM-SC-4GTXSFP, EDS-518E-MM-SC-4GTXSFP-T, and EDS-518E-MM-ST-4GTXSFP-T models in the MOXA EDS-518E Series.
MOXA EDS-518E-SS-SC-4GTXSFP-T CERTIFICATIONS
Designed to meet rigorous industry standards, the Moxa EDS-518E-SS-SC-4GTXSFP-T managed Ethernet switch keeps your data safe and
secure in demanding environments. It complies with UL 508 and EN 60950-1 (LVD)
for safety, along with EMC, EMI, and EMS certifications. The switch is also
certified by DNV-GL, LR, ABS, and NK for maritime applications and meets IEC
61850-3, IEEE 1613, and EN 50121-4 standards for industrial automation.
Moreover, compliance with NEMA TS2 and ATEX, Class I Division 2 for hazardous locations, ensures reliable operation in challenging conditions.
