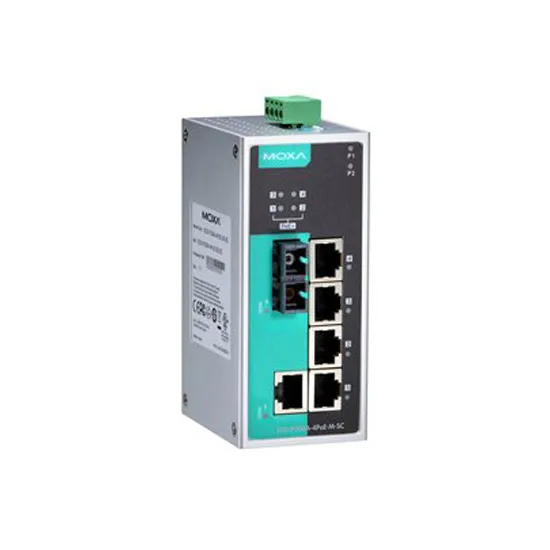

MOXA EDS-P206A-4PoE-S-SC Unmanaged Ethernet Switch

Tags: Industrial Network Infrastructure , Industrial Ethernet Switches , Industrial Ethernet and Cybersecurity , Ethernet Switches , Unmanaged Switches , Unmanaged Ethernet Switches , PoE Switches , Switches , MOXA EDS-P206A Series

Model: EDS-P206A-4PoE-S-SC

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA EDS-P206A-4PoE-S-SC FEATURES

4 x 10/100Mbps PoE ports (RJ45 connector)
1 x 10/100Mbps ports (RJ45 connector)
1 x 100BaseFX (single-mode SC connector)
40 KM Data transmission typical distance on fiber
DIN-rail and Wall mounting
IP30-rated metal housing
12/24/48 VDC Redundant dual power inputs
-10 to 60°C operating temperature range

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA EDS-P206A-4PoE-S-SC INTRODUCTION

The EDS-P206A-4PoE switches are smart, 6-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-P206A-4PoE switches enable centralization of the power supply and provide up to 30 watts of power per port. The switches can be used to power IEEE 802.3af/at-compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA EDS-P206A-4PoE-S-SC Unmanaged Ethernet Switch online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the EDS-P206A-4PoE-SS-SC, EDS-P206A-4PoE-T, and EDS-P206A-4PoE-M-ST models in the MOXA EDS-P206A Series.

MOXA EDS-P206A-4PoE-S-SC CERTIFICATIONS

Switch and Hub : Interface
Number of ports	6 Ports
10/100Mb RJ45 (Megabit) Ports	Yes : 1 Port
10/100/1000Mb RJ45 (Gigabit) Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	Yes : 1 Port (SC connector)
100Mb SFP Fiber optic (Megabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	No
10/100Mb (Megabit) POE Ports	Yes : 4 Ports (RJ45 connector)
10/100/1000Mb (Gigabit) POE Ports	No
Other ports	No
Switch and Hub : Features and Capabilities
Backup	No
Switch and Hub : LED Indicators
LED Per Port	Yes
Switch and Hub : Power Requirements
Input Voltage	12/24/48 VDC
Input Current	5.55 A @ 24 VDC
Operating Voltage	12 to 57 VDC
Power Input Plugin ( Redundant )	Yes
Power Consumption	Max. 13.2 W full loading without PDs’ consumption
Switch and Hub : General
Fan / Fanless	Fanless
MTBF	1,289,258 hrs
Switch and Hub : Switch Specifications
Most forwarding speed	-
Network working layers	Layer 1
Switch type	UnManaged
Port Aggregation	No
Switch and Hub : Physical Characteristics
Dimensions	50.3 x 114 x 70 mm (1.98 x 4.53 x 2.76 in)
Housing	Metal
Installation	Din-rail Wall mounting (with optional kit)
Operating Temperature	-10 to 60°C (14 to 140°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMI: CISPR 32, FCC Part 15B Class A; EMC: EN 55032/24; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: UL 508; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-31; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature	-40 to 85°C (-40 to 185°F)
Weight	375 g (0.83 lb)
Switch and Hub : Standards and Protocols
Protocols and work standards	-
Protocols and management standards	-
Switch and Hub : Package Checklist
Hardware installation guide	Yes
Power adapter	No
Power cable	No
