As a leading authority in industrial Power over Ethernet (PoE), Moxa offers a broad and growing range of PoE switches and accessories to ensure reliable power sourcing and continuous connectivity. With the rapid spread of AI, IIoT, and data-driven technologies, the demand for PoE-powered, robust edge connectivity is constantly rising. To speed up system commissioning, it's become increasingly important to simplify the deployment and management of these PoEs. Moxa's latest PoE product series enhances flexibility, efficiency, and streamlines deployment, guaranteeing performance for mission-critical applications.

PoE Product Selection Guide

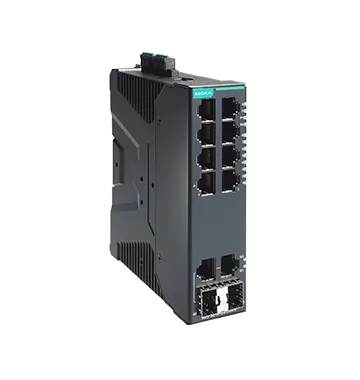

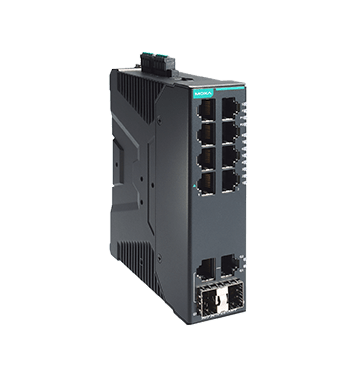

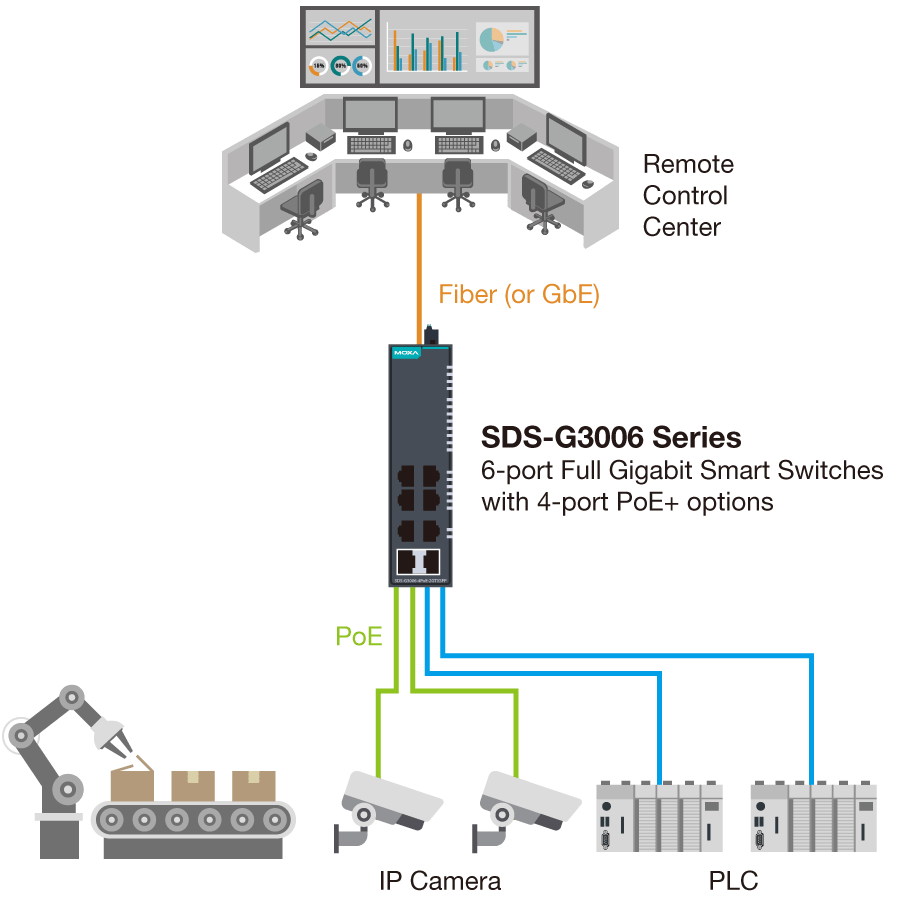

SDS-3006/ G3006/ 3010/
G3010 Series
Full Gigabit Smart Ethernet Switches
with PoE+ Option
  • 6/10-port FE/GbE with 4/8 PoE+ options
  • 36-watt output per PoE+ port in high-power mode
  • Moxa Smart PoE: PD failure detection & auto-reboot for consistent uptime

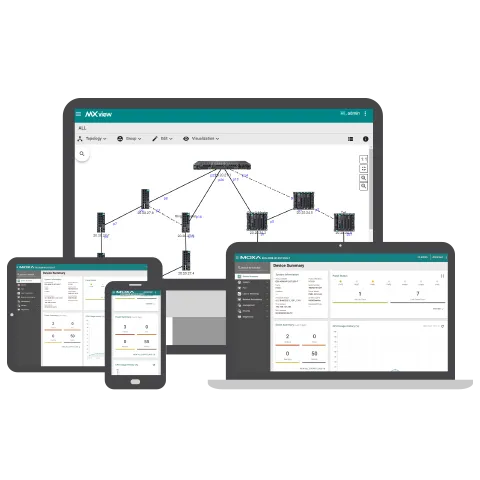

  • Remote monitoring of PoE powering status via SNMP & MXview One
  • Redundant dual DC power inputs

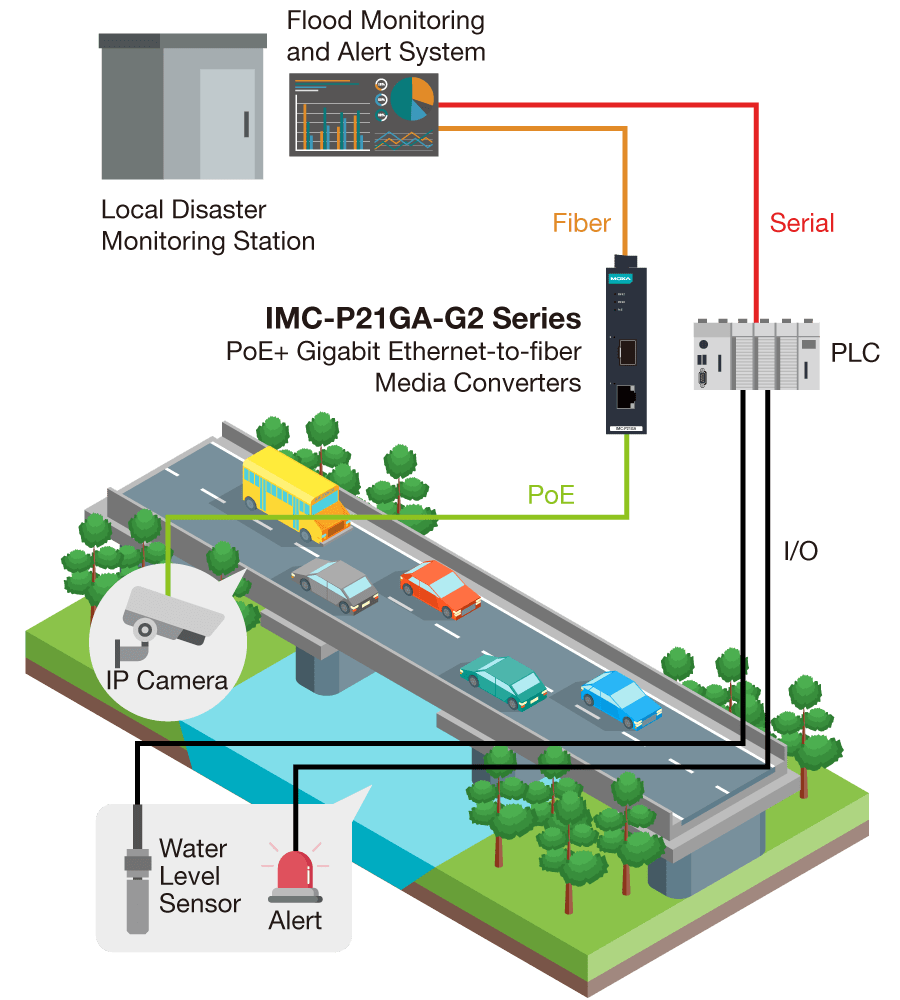

IMC-P21A-G2/P21GA-G2
Series
PoE+ Fast/Gigabit Ethernet-to-Fiber
Media Converter
  • 36-watt output per PoE+ port in high-power mode
  • Ethernet-to-fiber conversion with high-EMI immunity up to 80 km
  • Redundant dual DC power inputs
  • Supports store-and-forward and pass-through modes


Moxa PoE Switch Product Portfolio

PoE/PoE+/PoE++

PoE/PoE+/PoE++

All PoE standards are supported.
Moreover, PoE solutions with 36W (PoE/PoE+/PoE++) and 60W high-power output, Moxa's proprietary solutions, satisfy custom needs.

Complete Lineup

One-stop shop for a Complete Lineup

Our comprehensive PoE solutions with a lineup of more than 100 models offer one-stop-shop flexibility. We cater to all power budgets, HV/LV redundant power inputs, Ethernet interfaces, form factors, installation requirements, and more.

Industrial Reliability

Industrial Reliability

Rugged hardware is designed for critical communication in harsh environments. Moxa’s many innovations ensure switches are built to last and deliver uninterrupted network automation systems.



Rackmount Managed Switches

Layer
Layer 2/3
Layer 2/3
Layer 3
Layer 2
Layer 2
Moxa Solutions

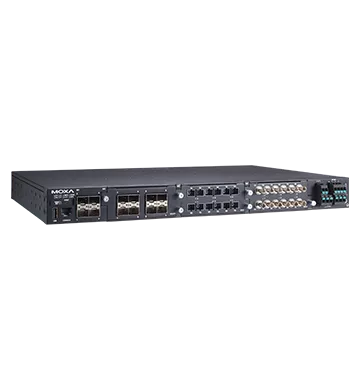

RKS-G4028 Series

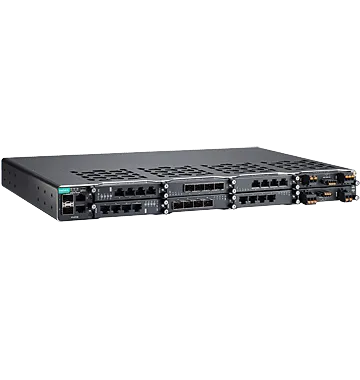

PT-G7828/G7728 Series

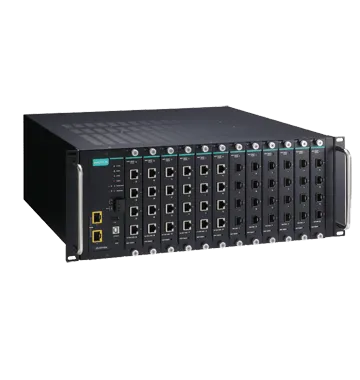

ICS-G7848A/G7850A/G7852A Series


ICS-G7748A/G7750A/ G7752A Series

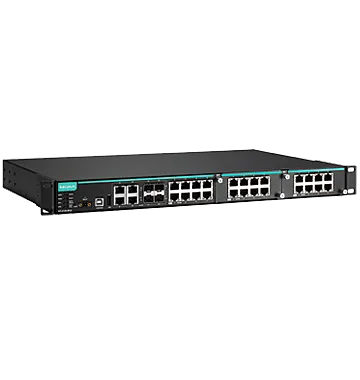

IKS-6728A Series

PoE Port
Up to 24 x PoE++
24 x PoE+
48 x PoE+
48 x PoE+
8/16/ 24 x PoE+
Ethernet Port
Up to 28 x GE
28 x GE
0/2/4 x 10GE + 48 x GE
0/2/4 x 10GE + 48 x GE
4 x GE + 24 x FE
PoE Output
(Per Port)
90 W
36 W
36 W
36 W
36 W
Dual Power Inputs

LV models: 24/48 VDC

HV models: 110/220
 VAC&VDC
External PoE power
models: 48 VDC

48 VDC for PoE+ ports and system power
110/220 VAC for system power
Operating Temp. Range
-40 to 75°C
-40 to 85°C
-10 to 60°C
-10 to 60°C
-40 to 75°C
Certification
IEC-61850-3, IEEE 1613, EN 50121-4
IEC-61850-3, EN-50121-4
EN-50121-4
EN-50121-4
EN-50121-4

NOTE: Refer to the individual product datasheets on our website for the most updated specifications and features. Or click here to learn more about Moxa PoE switches.

Modular Managed Switches

Layer
Layer 2
Layer 3
10GE Layer 2
10GE Layer 3
Moxa Solutions

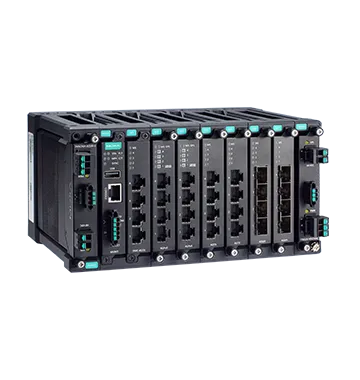

MDS-G4012G4020/G4028 Series


MDS-G4012-L3/G4020-L3/G4028-L3 Series

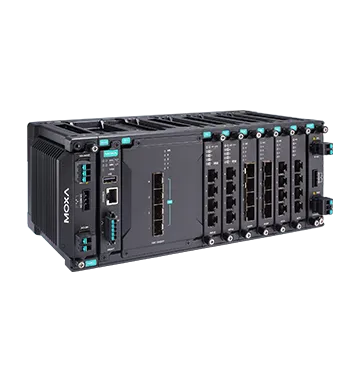

MDS-G4012-4XGS/G4020-4XGS/G4028-4XGS Series



MDS-G4012-L3-4XGS/G4020-L3-4XGS-G4028-L3-4XGS Series


PoE Port
8/16/24 PoE+/GPoE+
Ethernet Port
Up to 28 x GE
4 x 10GE + up to 24 x FE/GE ports
modules or SFP slots
PoE Output
(Per Port)
30 W
Dual Power Inputs
LV models: 24/48 VDC
HV models: 110/220 VAC&VDC
External PoE power models: 48 VDC
Operating Temp. Range
Standard temp. models: -10 to 60°C
Wide temp. models: -40 to 75°C
Certification
IEC-61850-3, IEEE 1613, EN 50121-4, Class I Division 2, ATEX, NEMA
IEC-61850-3, IEEE 1613, EN 50121-4, NEMA

NOTE: Refer to the individual product datasheets on our website for the most updated specifications and features. Or click here to learn more about Moxa PoE switches.

Managed Switches

Layer
Layer 2/3
Layer 2/3
Layer 3
 Layer 2
Layer 2
Layer 2
Layer 2
Layer 2
Layer 2
Layer 2
Moxa Solutions


EDS-4008 Series

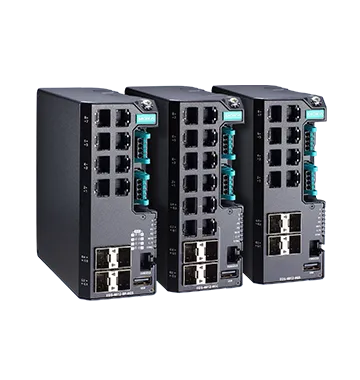

EDS-4012 Series

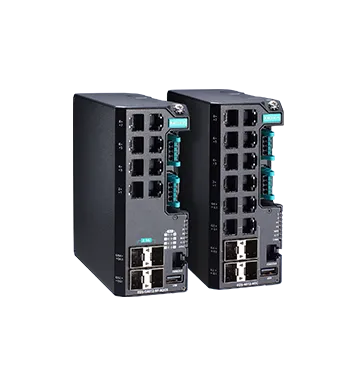

EDS-G4012 Series

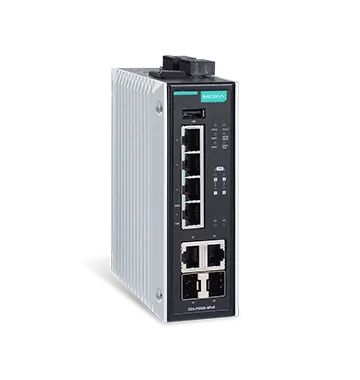

EDS-P506E Series

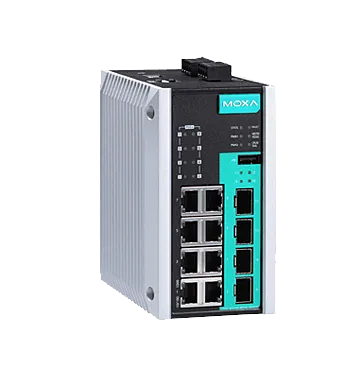

EDS-G512E Series


EDS-P510A Series

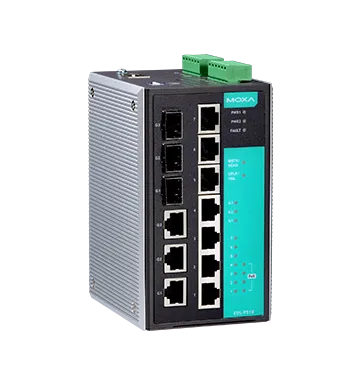

EDS-P510 Series

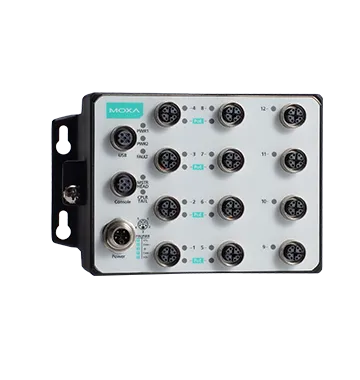

TN-G6500 Series

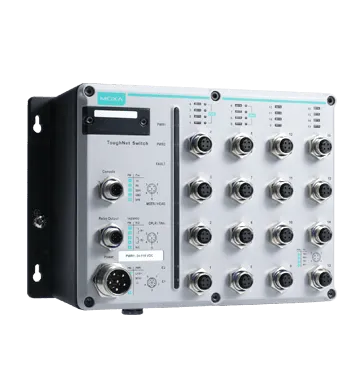

TN-5500A Series

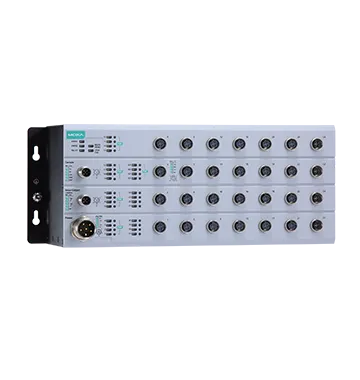

TN-4500A Series


PoE Port
4 x PoE++
8 x PoE++
8 x PoE++
8 x PoE++
4 x PoE+
 8 x PoE+
4 x PoE
4 x PoE
4 x PoE
4 x PoE
Ethernet Port
8 x FE + up to 4 x GE
uplink pots or 2 x SFP ports
4 x GE + 8 x FE
12 x GE + up to 4 x GE or
2.5 GE fiber-optic ports
12 x GE + up to 4 x GE or
2.5 GE fiber-optic ports
12 x GE + up to 4 x GE or
2.5 GE fiber-optic ports
 2 x GE + 8 x FE
3 x GE + 7 x FE
3 x GE + 7 x FE
3 x GE + 7 x FE
3 x GE + 7 x FE
PoE Output
(Per Port)
90 W
90 W
90 W
90 W
90 W
 36 W
15.4 W
30 W
30 W
30 W
Dual Power Inputs

LV(A) models: 48 VDC
LV(B) models: 12/24/48 VDC

12/24/48 VDC
12/24/48 VDC

48 VDC

48 VDC

24/36/48/72/96/110 VDC
24/36/48/72/96/110 VDC
24/36/48/72/96/110 VDC
Operating Temp. Range
-40 to 75°C
-40 to 75°C
-10 to 60°C
-10 to 60°C
-10 to 60°C
 Standard temp. models: -10 to 60°C
Wide temp. models: -40 to 75°C
-40 to 70°C
-40 to 75°C
-40 to 70°C
Certification
IEC-61850-3, IEEE 1613, EN 50121-4
IEC-61850-3, EN-50121-4
EN-50121-4
EN-50121-4
EN-50121-4
 EN-50121-4, Class I Division 2, NEMA TS2
ABS, DNV-GL, LR, NK
EN 50121-4, EN 50155
EN 50121-4, EN 50155
EN 50121-4, EN 50155

* Only EDS-G512E-4GSFP model

NOTE: Refer to the individual product datasheets on our website for the most updated specifications and features. Or click here to learn more about Moxa PoE switches.

Smart Switches

Layer
Layer 2
Moxa Solutions

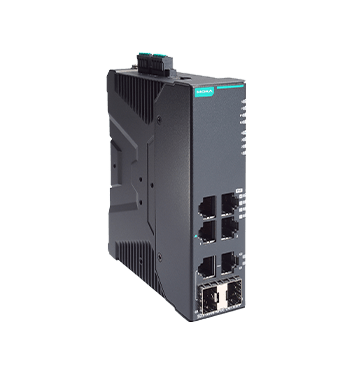

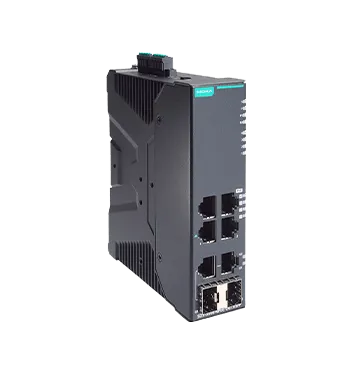

SDS-3006 Series


SDS-G3006 Series


SDS-3010 Series

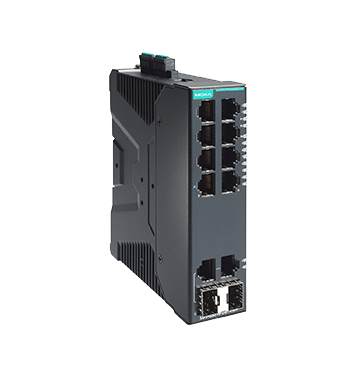

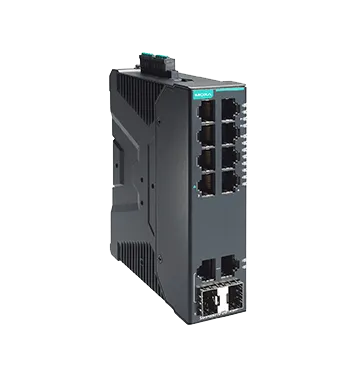

SDS-G3010 Series

PoE Port
4 x PoE+
4 x GPoE+
8 x PoE+
8 x GPoE+
Ethernet Port
4 x FE+ 2 x GE or SFP
4 x GE + 2 x GE or SFP
8 x FE + 2 x GE or SFP
8 x GE + 2 x GE or SFP
PoE Output
(Per Port)
36 W
Dual Power Inputs
12/24/48 VDC 12/24/48 VDC 48 VDC 48 VDC
Operating Temp. Range
Standard temp. models: -10 to 60°C
Wide temp. models: -40 to 75°C
Certification




NOTE: Refer to the individual product datasheets on our website for the most updated specifications and features. Or click here to learn more about Moxa PoE switches.

Unmanaged Switches

Layer
-
-
-
Moxa Solutions

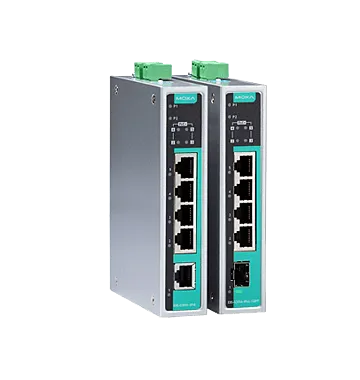

EDS-G205A Series

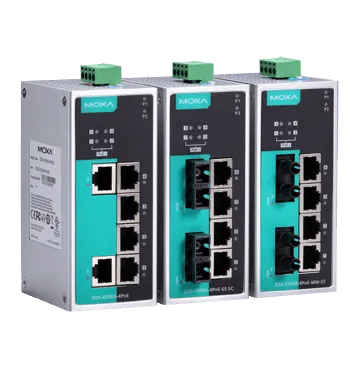

EDS-P206A Series

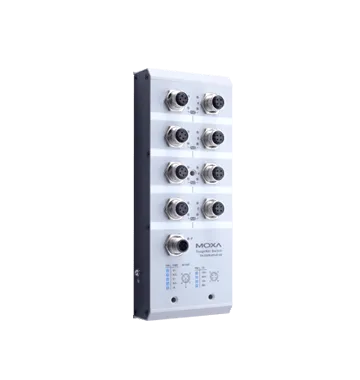

TN-5300A-Series


PoE Port
4 x PoE+
4 x PoE+
4/8 x PoE
Ethernet Port
5 x GE
6 x FE
8 x FE
PoE Output
(Per Port)
30 W
30 W
30 W
Dual Power Inputs
12/24/48 VDC
12/24/48 VDC
48 VDC (Single input)
Operating Temp. Range
Standard temp. models: 0 to 60°C
Wide temp. models:-40 to 75°C
Standard temp. models: 0 to 60°C
Wide temp. models:-40 to 75°C
Standard temp. models: -25 to 60°C
Wide temp. models:-40 to 75°C
Certification
Standard temp. models: -25 to 60°C
Wide temp. models:-40 to 75°C
-EN 50155

NOTE: Refer to the individual product datasheets on our website for the most updated specifications and features. Or click here to learn more about Moxa PoE switches.

Plug-in Modules

Type
PoE+ Injectors
PoE+ Injectors
PoE Splitters
PoE Splitters
Moxa Solutions

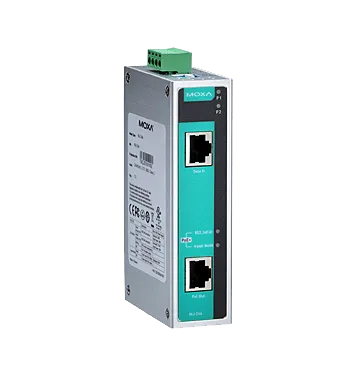

INJ-24A Series

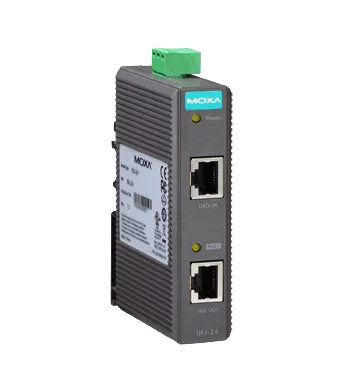

INJ-24 Series



SPL-24 Series

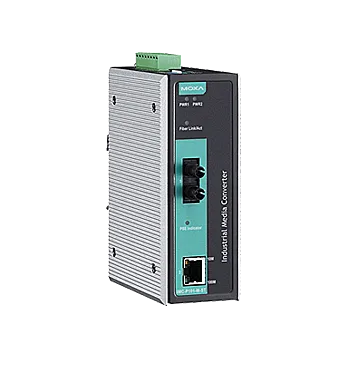

IMC-P101 Series



PoE Port
1 x PoE+
1 x PoE+
1 x PoE
1 x PoE+
Ethernet Port
1 x GE
1 x FE
1 x FE
1 x FE
PoE Output
(Per Port)
60 W
30 W
12.95 W
30 W
Dual Power Inputs
24/48 VDC(Single input)
24/48 VDC(Single input)
-48 VDC
Operating Temp. Range
Standard Temp: 0 to 60°C
Wide Temp: -40 to 75°C
Certification
--DNV-GL, ABS, LR, NK
-

NOTE: Refer to the individual product datasheets on our website for the most updated specifications and features. Or click here to learn more about Moxa PoE switches.



Smarter PoE for Evolving Industrial Networks

As a leading authority in industrial PoE, Moxa provides an extensive and expanding selection of PoE switches and accessories, guaranteeing dependable power sourcing and unbroken connectivity. Given the swift proliferation of AI, IIoT, and data-driven technologies, the need for PoE-powered, durable edge connectivity continues to escalate. To facilitate prompt system commissioning, simplifying the deployment and management of these PoEs has gained increased importance. Moxa's newest PoE product series delivers augmented flexibility, efficiency, and streamlined deployment, enabling mission-critical applications with assured performance.

TECH NOTE

Smarter Industrial PoE Deployment:
Overcoming Voltage, Visibility, and Power Constraints
Smart Powering

Smart Powering ensures all devices receive proper power, including non-standard ones.

Smart Power Management automates power output cutoff, scheduling, and PoE alerts for system reliability and optimized load.

Smart Power Diagnostics detects PD failures, enables auto-reboot, and recommends optimal PoE port configurations for seamless setup and troubleshooting.

Smart Powering
ensures all devices receive proper power, including non-standard ones.
Smart Power Management
automates power output cutoff, scheduling, and PoE alerts for system reliability and optimized load.
Smart Power Diagnostics
detects PD failures, enables auto-reboot, and recommends optimal PoE port configurations for seamless setup and troubleshooting.


Industrial Applications Deployed with Moxa PoE Switches

PoE Communication Networks

PoE Communication Networks for Intelligent Transportation Systems


  • Highway Traffic Monitoring
  • ETC Systems
  • Intersection Monitoring
  • IP Surveillance in Public Transport Interchange
  • Runway De-icing Systems
×

Intelligent Transportation

Rugged PoE Networks for Highway Traffic Monitoring


PoE Traffic Monitoring Diagram

Requirements:

  • Network infrastructure with rapid recovery capability to ensure fast data transfer for real-time intersection monitoring
  • High bandwidth for IP surveillance
  • Reduced size and cable to fit the compact roadside cabinet space
  • Easy to mass configure, manage and monitor for efficient troubleshooting across all network devices
  • Survive the extreme outdoor environment

Why Moxa:

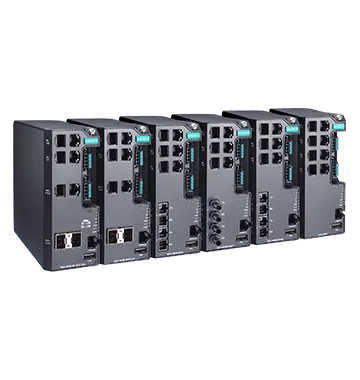

  • EDS-4008 Series supports full GbE uplinks for high-bandwidth networks (2.5G SFP modules available) and less than 50 ms redundancy (under the Gigabit fiber link) to avoid communication loss.
  • Compact designed EDS-4008 Series can support 802.3bt PoE for up to 90 W output per port for supplying sufficient power to PDs, like, IP cameras, wireless APs, sensors, IP phone... etc.
  • Moxa Smart PoE technology provides PD outage detection and auto-reboot for uninterrupted system availability
  • Centralized network devices configuration and management through MXview One Series
  • Wide range of products from the Serial Device Servers to L3 10GbE switches, to fulfill all communication infrastructural needs
  • IEC 62443-4-2 SL2 certification for secure network devices
  • NPort IA5000A Series provides high density serial connectivity and 2 kV isolation for serial signals.
×

Intelligent Transportation

Ensure ETC Precision with Reliable PoE Communication Networks


PoE Traffic Monitoring Diagram

Requirements:

  • Minimize cabling and equipment on outdoor toll gantries
  • Ensure high-speed, high-bandwidth for data and image transmission
  • Maintain durability for continuous operations
  • Achieve fast I/O scanning rate for accurate sensor signal capture
  • Simple maintenance and monitoring to enable cost-effective remote troubleshooting

Why Moxa:

  • The EDS-4008 Series compact PoE++ switches offer with up to 90 W output per port to ensure sufficient power for IP cameras.
  • Support full GbE uplinks for high-capacity networks, with 2.5G SFP options available.
  • Feature Smart PoE for IP camera outage detection and auto-reboot, facilitating remote management.
  • The ioLogik E2212 Smart I/O delivers rapid I/O scanning rates below 4 ms, enhancing data accuracy.
  • Operate reliably in extreme temperatures from -40 to 75°C for uninterrupted service.
  • NEMA TS2 certification
  • IEC 62443-4-2 SL2 certification for secure network devices
×

Intelligent Transportation

Smart City Traffic Improvement with Intelligent Transportation System


PoE Traffic Monitoring Diagram

Requirements:

  • Effective traffic management solution for communication between vehicles, operators, and onsite control stations
  • Remote monitoring as part of onsite failure detection
  • Real-time data collection from various roadside sensors
  • Robust design that withstands the harsh outdoor environment

Why Moxa:

  • Comprehensive solution for real-time response
  • Moxa’s V2403C Series is a cutting-edge computing platform that acts as a roadside unit (RSU) for collecting data from sensors and surveillance videos from cameras. Via Moxa’s EDS-4012 Series managed switches, it also serves as a bridge between edge computing devices and the ITS server for real-time communication
  • Moxa’s EDS-4012 Series managed PoE switches supply adequate power to IP cameras for surveillance and to Wi-Fi APs for municipal free internet service
  • Moxa’s Turbo Ring technology ensures a network recovery time of less than 20 ms and STP/ RSTP/MSTP offers network redundancy, thereby helping maintain stable networks for real-time communication
  • Industry certified for secure and stable operation under harsh conditions
×

Intelligent Transportation

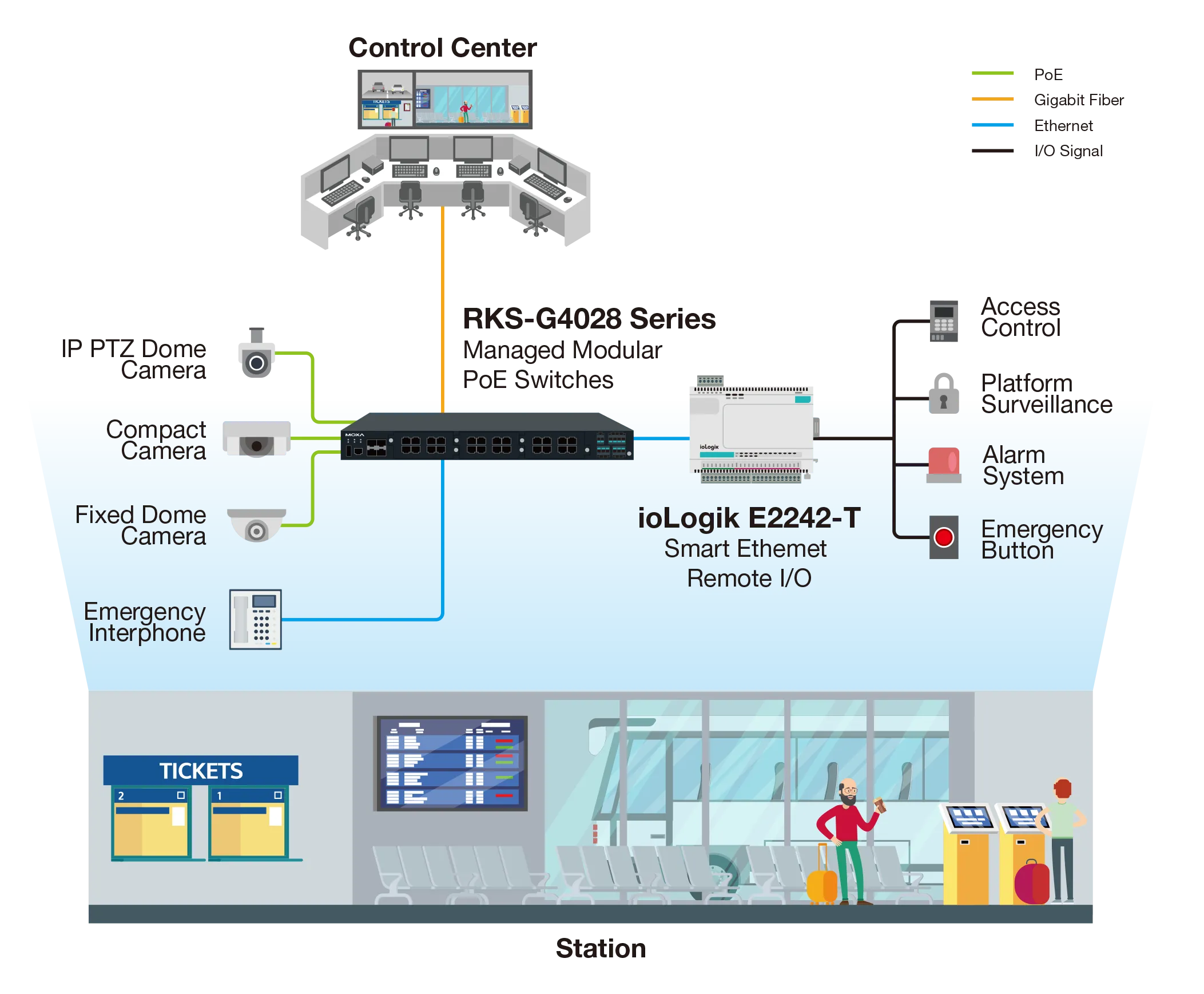

High-Density PoE Connections for Continuous Operations in Public Transport Interchange


PoE Traffic Monitoring Diagram

Requirements:

  • A switch hub capable of flexible expansion and can cater to various combinations to accommodate a variety of surveillance devices
  • High PoE output to support numerous IP cameras
  • Durable for continuous operations around the clock
  • Simplified configuration, maintenance, and backup processes for efficient operation
  • Compliance with IEC cybersecurity standards

Why Moxa:

  • The RKS-G4028 Series boasts modular interfaces and high-density PoE connections, accommodating diverse connectors from Fast Ethernet to Gigabit networks, with support for up to 28 Gigabit ports, making this series ideal for comprehensive surveillance setups, including cameras, ticketing systems, security alarms, and emergency call-out systems.
  • Moxa's Smart PoE functionality enhances operational reliability through PD outage detection and automatic reboot capabilities, facilitating rapid PD operational status assessments.
  • Devices are certified under IEC 62443-4-2 SL2, guaranteeing a high level of security for network devices
×

Enable Uninterrupted Runway De-icing System Communications with Robust PoE


PoE Traffic Monitoring Diagram

Requirements:

  • Operation under extreme low-temperature outdoor environments.
  • Reliable, high-power output for PTZ cameras.
  • Flexible installation for continuous monitoring around a large runway area.
  • Highly secure and redundant design to ensure continuous operation.

Why Moxa:

  • EDS-P510A-8PoE Series provides 30 W per PoE port, allowing PTZ cameras to operate continuously in harsh outdoor environments.
  • Redundant dual power inputs ensure uninterrupted power delivery even in the event of power supply failure.
  • Wide temperature range support of -40 to 75°C, designed for extreme cold environments like runways.
  • Rugged design with corrosion-resistant coating and IP40-rated housing, making them ideal for outdoor use.


card__image

Real-time Video Streaming and Monitoring Network for Autonomous Haulage System in Surface Mining

card__image

Communication Network for Tramway Ticketing System

card__image

Smart City Traffic Improvement with Intelligent Transportation Systems

card__image

Remote Pipeline Monitoring

card__image

Security Monitoring Network for Power Substation Access Control

card__image

Reliable PoE Networks for Crane OCR Systems







Features and Benefits

Complete Lineup

Withstand Extreme Temperatures

  • -10 to 60°C
  • Wide-temperature models: -40 to 75°C/85°C
    •
    Complete Lineup

    HV/LV Power Options

  • Support 12/24/48 VDC input
  • Dual isolated redundant power supplies with HV/LV options
    •
    Industrial Reliability

    PoE Surge Protection

    • 3 kV LAN surge protection to protect equipment from electric Power surges and spikes
    Industrial Reliability

    Robust Reliability

    • High MTBF – no fan or heater needed
    • High EMI resistance
    • Hot-swappable design for modular PoE switches
    Industrial Reliability

    Support All PoE Standards

    • Support 802.3bt PoE++ with up to 90 W per port
    • Support standard PoE/PoE+ and Moxa's proprietary high power PoE 36 W and 60 W
    Industrial Reliability

    IACS-level Device Security

    • Built-in device security-based on the IEC 62443-4-2 standards (EDS-4000/G4000 Series and RKS-G4000 Series are IEC 62443-4-2 certified)
    Industrial Reliability

    Flexible Design

    • 10GbE/2.5GbE/GbE/FE port speed options
    • RJ45, SFP, and PoE interface module options
    • DIN-rail, rackmount, and wall mount installations
    Industrial Reliability

    Visualized Network Management: MXview One

    • Automatic topology visualization is available on a real-time dashboard with comprehensive network reporting
    • Security View for checking the security level of network devices
    Industrial Reliability

    Network Redundancy and Scalability

    • Supports Turbo Ring and Turbo Chain for Gigabit redundancy under 50 ms (FE redundancy under 20 ms)
    • Turbo Chain can interoperate with other Ethernet ring protocols
