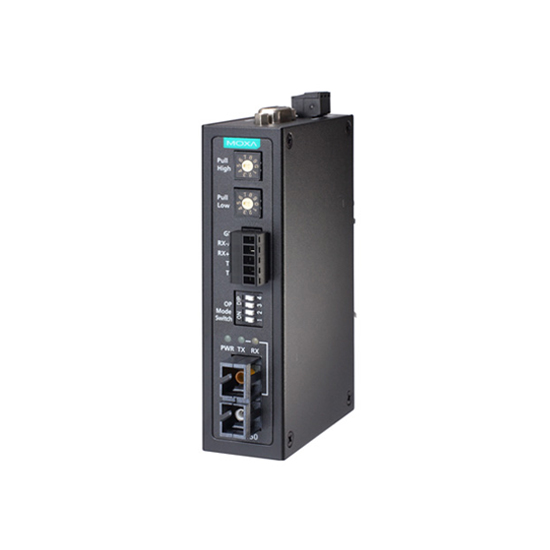

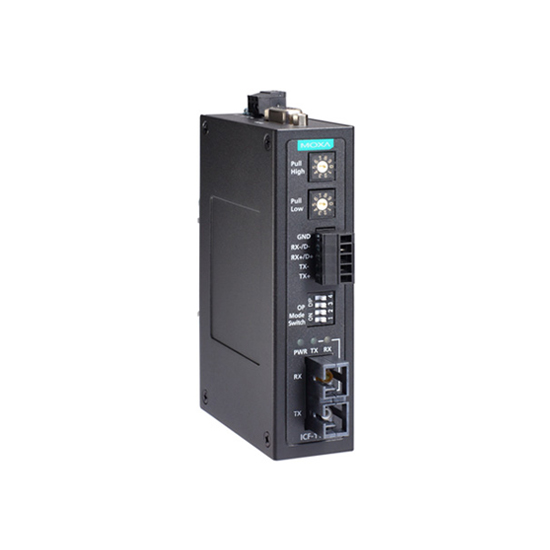

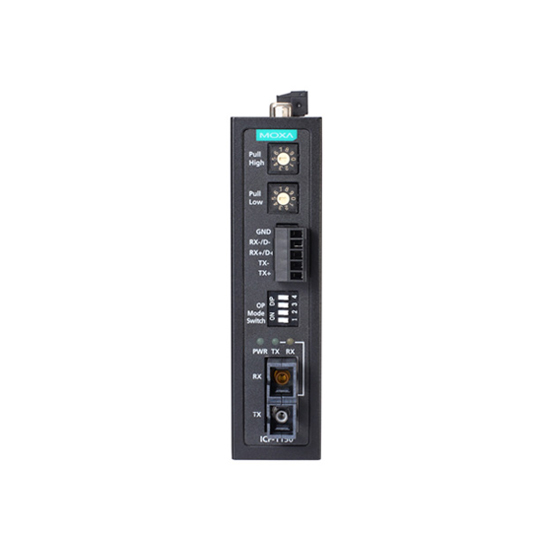

MOXA ICF-1150-S-ST-IEX Serial to Fiber Converter
MOXA ICF-1150-S-ST-IEX FEATURES
- EX-Approved Serial to Fiber Converter
- 1 x RS-232/422/485 Serial port (DB9-F, TB)
- 1 x 100BaseFX Port (Single-mode ST connector)
- 40 KM Typical data transmission distance on fiber
- 12 to 48 VDC input power range
- IP30-rated Metal body design
- DIN-rail mounting
- 0 to 60°C operating temperature range
MOXA ICF-1150-S-ST-IEX INTRODUCTION
The Moxa ICF-1150-S-ST-IEX serial to fiber converter is an efficient industrial solution
that enhances industrial edge connectivity in various industrial sectors,
including factory automation and oil and gas. This device converts
RS-232/422/485 serial signals to fiber optic communication with two
RS-232/422/485 ports (a Single-mode ST connector and a 5-pin terminal block).
As a member of the Moxa ICF-1150 series, the ICF-1150-S-ST-IEX is recognized
for its consistent performance and rugged design in high-demand industrial
operations. Built to endure harsh settings, the Moxa ICF-1150-S-ST converter
features a sturdy metal enclosure that shields internal components effectively.
It serves as a reliable solution for extending the communication system range
and stability in demanding applications.
Robust Metal Housing for Enhanced Durability
The Moxa ICF 1150 S ST IEX converter features a sturdy IP30-rated metal case engineered to safeguard
sensitive electronics from industrial stressors. This resilient construction
delivers dependable performance over time, even in rugged operational conditions.
It comes with 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in) dimensions and weighs
330 g (0.73 lb). The Moxa ICF-1150-S-ST-IEX serial converter is designed to
support reliable data transmission and boost industrial edge connectivity within an operational temperature range of 0 to 60°C. This Moxa serial-to-fiber converter includes DIN-rail mounting functionality to offer straightforward
installation across various sectors.
Reliable Power Inputs and Other Features
The Moxa ICF 1150 S ST IEX converter brings forth the input current of 300 mA (max) and the input
voltage of 12 to 48 VDC for reliability in industrial applications. The
ICF-1150-S-ST-IEX offers a single power input, supported current protection,
and a terminal block power connector. These features allow this device to
function efficiently and safely in any industrial setting.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA ICF-1150-S-ST-IEX Serial to Fiber Converter online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the ICF-1150-M-ST, ICF-1150I-M-ST, and ICF-1150I-S-ST models in the MOXA ICF-1150 Series.
MOXA ICF-1150-S-ST-IEX CERTIFICATIONS
The Moxa ICF-1150-S-ST-IEX converter carries multiple certifications confirming its
dependability and compliance. The Moxa ICF-1150-S-ST-IEX also complies with
safety, vibration, EMC, EMI, EMS, UL, FCC, and CE standards to ensure safe
performance and electromagnetic compatibility. The Moxa ICF-1150-S-ST-IEX serial-to-fiber converter is engineered for hazardous industrial zones with
IECEx (to ensure safe usage in environments where explosive materials may be
present), UL/cUL Class I Division 2 Groups A/B/C/D, and ATEX Zone 2. These
certifications reflect the unit’s adherence to electrical safety and industry
regulations. The Moxa ICF-1150-S-ST-IEX serial-to-fiber converter datasheet can
provide you with more information and details.
