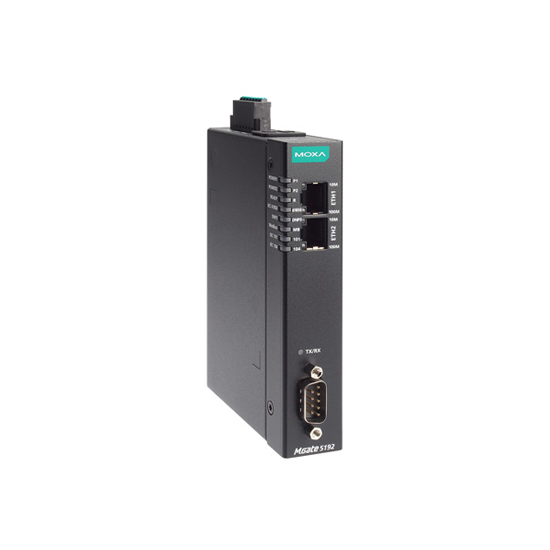

MOXA MGate 5192-T Industrial Ethernet Gateway
MOXA MGate 5192-T FEATURES
- Converts IEC 61850 to DNP3/IEC 101/IEC 104/Modbus
- 2 x 10/100BaseT(X) Ports (RJ45 connector)
- 1 x RS-232/422/485 Serial port (DB9 male connector)
- 2 KV Isolation protection for serial port
- 12 to 48 VDC Redundant dual power inputs
- IP30-rated Metal body design
- -40 to 75 operating temperature range
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
MOXA MGate 5192-T INTRODUCTION
The MGate 5192 is an industrial protocol gateway for converting IEC 61850 MMS to Modbus RTU/ASCII/TCP, DNP3 serial/TCP/UDP, IEC 60870-5- 101, or IEC 60870-5-104 communications. To integrate existing IEC 61850 devices, such as IEDs or relays, into a Modbus, DNP3, IEC 101, or IEC 104 network, use the MGate 5192 as an IEC 61850 MMS client to collect and exchange data with Modbus RTU/ASCII/TCP, DNP3 serial/TCP/UDP, IEC 60870-5-101, or IEC 60870-5-104 SCADA/devices. All models are protected by a rugged and compact metal housing, are DIN-rail mountable, and offer built-in serial isolation. The rugged design is suitable for industrial applications such as power substations and renewable energy-related applications.
Easy Configuration
The MGate 5192 gateways are provided with a web console to make configuration easy without having to install an extra utility. In addition, HTTPS encryption ensures higher network security. In most data-acquisition applications, the configuration of devices with Modbus commands can be time-consuming and increase costs. The MGate 5192 gateways provide offline configuration via a CSV file to help complete the Modbus settings quickly. The MGate gateways provide software-configurable pull high/low and termination resistor settings for RS-485 2-wire to reduce efforts by eliminating the need to open the chassis.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA MGate 5192-T Industrial Ethernet Gateway online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the MGate 5111 Series and MGate 5135/5435 Series in the MOXA Modbus TCP Gateways.
MOXA MGate 5192-T CERTIFICATIONS
