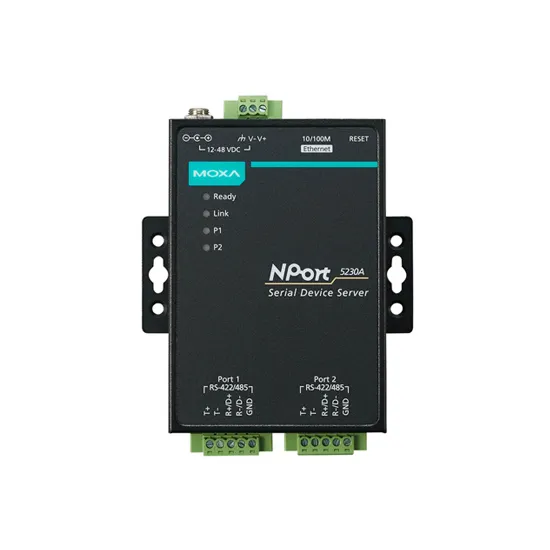

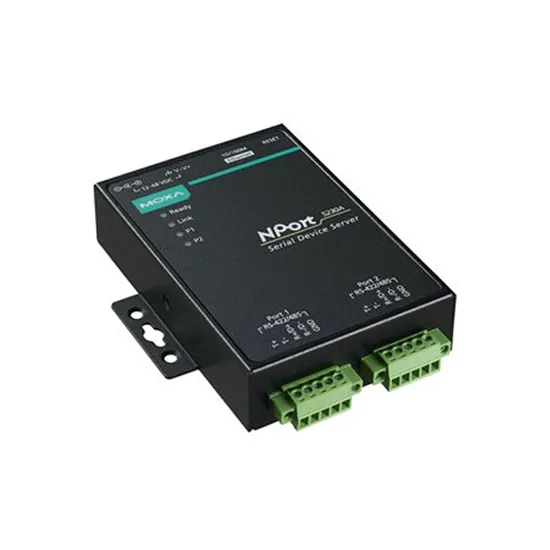

MOXA NPort 5230A Serial to Ethernet Device Server

MOXA NPort 5230A INTRODUCTION

The Moxa NPort 5230A serial to Ethernet device server ensures easy integration of serial devices into Ethernet systems, instantly connecting them to the network. As part of the Moxa NPort series, the NPort 5230A, which comes with an Adapter, offers dependable, rugged, and intuitive serial connectivity, making it well-suited for industrial uses like factory automation. It comes with the RS-422/485 serial standard, supports a wide range of baud rates from 50 bps to 921.6 kbps, and allows for flexible data communication. The device draws an input current of 119 mA @ 12 VDC and supports input voltages from 12–48 VDC to offer excellent adaptability across power sources. Leveraging Moxa industrial edge connectivity capabilities, this Moxa serial to Ethernet device server gives network-wide access to serial devices through PC software, simplifies operations, and enhances productivity. As a trusted member of the Moxa serial device server lineup, it provides exceptional usability and stability.

Durable Design with a Wide Operating Temperature Range

Engineered for tough industrial settings, the Moxa NPort 5230A supports a broad operating temperature spectrum from 0 to 60°C (32 to 140°F) and ensures stable function under extreme conditions. The NPort 5230A comes with a robust metal casing that allows it to be mounted on desktops, walls, or DIN rails with an optional mounting kit. With its storage temperature range mirroring its operational capacity and a relative humidity tolerance of 5 to 95% (non-condensing), the NPort 5230A is tailored for resilience in harsh environments. This Moxa NPort 5230A serial device server is a dependable tool for securing consistent network links in demanding conditions.

Surge Protection for Serial, Ethernet, and Power

Designed with advanced surge protection, the Moxa NPort 5230A device server shields serial, Ethernet, and power connections from sudden voltage spikes caused by switching or lightning. This high-level surge protection adheres to IEC 61000-4-5 standards, reinforces the system’s durability, and ensures uninterrupted reliability in electrically unstable environments. Thanks to this protective capability, the Moxa NPort 5230A serial converter can absorb, withstand surges, and ensure that critical devices remain securely connected. Whether employed as a Moxa serial converter or in broader applications, the NPort 5230A converter guarantees safety and continuous operations.

Simplified Setup with 3-Step Web-Based Configuration

Featuring an easy 3-step web-based setup interface, the Moxa NPort 5230A general device server offers a straightforward and fast configuration process. The intuitive web console provides a step-by-step guide for configuring the Ethernet-to-serial connection, helping reduce deployment time and complexity. With the Moxa NPort 5100A Series, users can have the device ready in under 30 seconds, streamlining installation and enhancing operational workflows. For further technical details, refer to the comprehensive Moxa NPort 5230A datasheet to support network planning and deployment.

MOXA NPort 5230A CERTIFICATIONS

Certified for compliance with rigorous safety and performance regulations, the Moxa NPort 5230A serial to Ethernet device server holds approvals in Safety, EMC, EMI, and EMS categories. As a part of the general device servers and Moxa NPort family, these certifications affirm its reliability in meeting industrial safety standards and sustaining performance in high-interference environments. For those seeking to maintain secure and stable connectivity in industrial networks, the Moxa NPort 5230A offers a proven and reliable solution.
