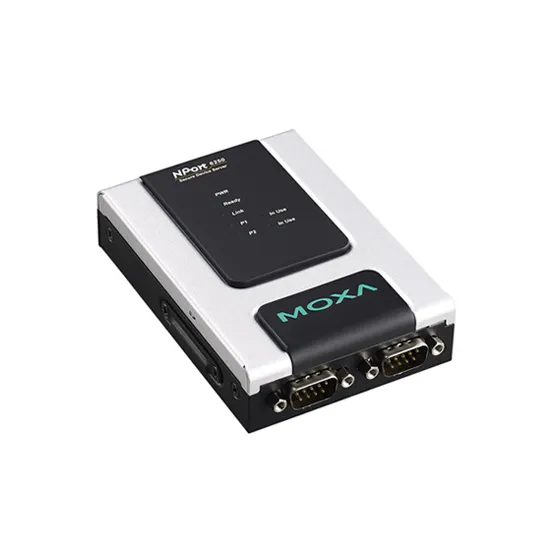

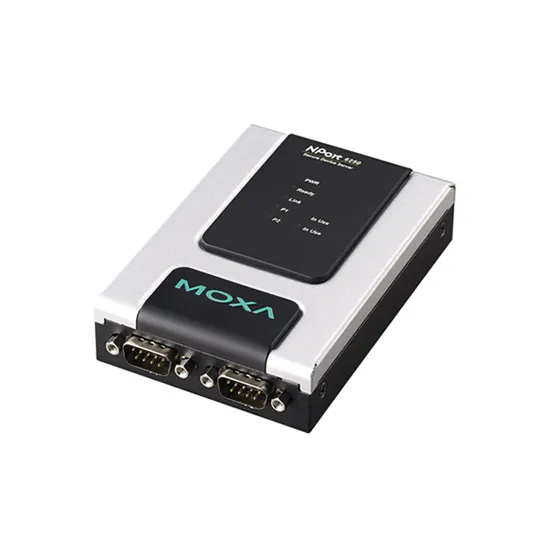

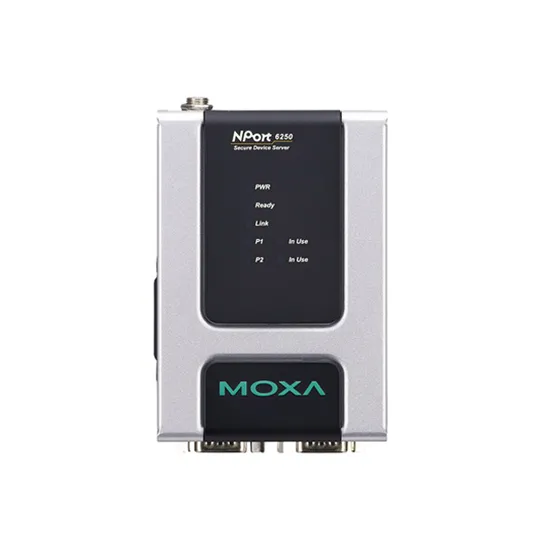

MOXA NPort 6250-S-SC Serial to Ethernet Device Server

Tags: Industrial Edge Connectivity , Serial Device Servers , Terminal Servers , Industrial Serial Device Servers , Serial to Ethernet Device Servers , Serial to Ethernet Converters , Industrial Converters , Converters , MOXA NPort 6100/6200 Series

MOXA NPort 6250-S-SC Serial to Ethernet Device Server

Model: NPort 6250-S-SC

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA NPort 6250-S-SC FEATURES

1 x 100BaseFX Port (single-mode SC connector)
2 x RS-232/422/485 Serial ports (DB9 male connector)
40 KM Typical data transmission distance on fiber
12 to 48 VDC input power range
Desktop, DIN-rail, and Wall mounting
Metal body design
0 to 55°C operating temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA NPort 6250-S-SC INTRODUCTION

The NPort® 6000 device servers use the SSL and SSH protocols to transmit encrypted serial data over Ethernet. The NPort® 6000’s 3-in-1 serial port supports RS-232, RS-422, and RS-485, with the interface selected from an easy-to-access configuration menu. The NPort® 6000 2-port device servers are available for connecting to a 10/100BaseT(X) copper Ethernet or 100BaseT(X) fiber network. Both single-mode and multi-mode fiber are supported.

Secure Data Transmission

For many applications, guaranteeing secure data transmission is an important concern when connecting serial devices to a network. To answer this concern, the NPort® 6000 supports the SSL and SSH protocols, which encrypt data before sending it over the network. With the NPort® 6000, users can rest assured that serial data is transmitted securely over both private and public networks.

Zero Data Loss If Ethernet Connection Fails

The NPort® 6250 device servers help guarantee reliability by providing users with secure serial-to-Ethernet data transmission and a customer-oriented hardware design. If the Ethernet connection fails, the NPort® 6250 will queue all serial data in its internal 64 KB port buffer. When the Ethernet connection is re-established, the NPort® 6250 will immediately release all of the data in the buffer in the order that it was received. Users can increase the port buffer size by installing an SD card.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA NPort 6250-S-SC Serial to Ethernet Device Server online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the NPort 6250-T and NPort 6250-M-SC-T models in the MOXA NPort 6100/6200 Series.

MOXA NPort 6250-S-SC CERTIFICATIONS

Serial-to-Ethernet : Interface
10/100Mb RJ45 (Megabit) Ports	No
100BaseFX Ports	Yes : 1 x Single-mode with SC connector
Digital Input Channels	No
Digital Output Channels	No
Magnetic Isolation Protection	1.5 kV (built-in)
Alarm Contact Channels	No
Protocols	TLS and SSH
Serial-to-Ethernet : Serial Interface
Number of Ports	2 Ports
Serial Standards	RS-232, RS-422, RS-485
Connector	DB9 male
Console Port	No
Serial-to-Ethernet : Serial Communication Parameters
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	Even, Odd, Space, Mark, None
Flow Control	RTS/CTS, DTR/DSR, XON/XOFF
Baudrate	50 bps to 921.6 kbps (supports non-standard baudrates)
Isolation	No
Serial-to-Ethernet : Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
Serial-to-Ethernet : Communication details
Wireless Standards	No
Maximum data transfer speed	No
Maximum direct range	No
Serial-to-Ethernet : Power Requirements
Connection	-
Input Voltage	12 to 48 VDC
Input Current	12-48 Vdc, 430 mA
Serial-to-Ethernet : General
Management	ARP, BOOTP, DHCP Client, DNS, HTTP, ICMP, IPv4/IPv6, LLDP, PPPOE, SMTP, SNMPv1/v2c/v3, SNTP, TCP/IP, Telnet, UDP
MTBF	1,526,091 hrs
Compatible operating systems	Windows 11/10/8.1/8/7/Vista/XP/ME/98/95, Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003, Windows Embedded CE 6.0/5.0, Windows XP Embedded
Fixed TTY Drivers	macOS Versions: 11.x, 10.12 to 10.15, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers	Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Automatic Reboot Trigger	Built-in WDT
Serial-to-Ethernet : Security
Authentication	Local database, RADIUS, TACACS+
Security	Protocol: HTTPS (TLS 1.2), SNMPv3, SSHv2
Encryption	HTTPS, AES-128, AES-256, HMAC, RSA-1024, SHA-1, SHA-256, SHA-384
Serial-to-Ethernet : Features and capabilities
Display	No
Serial-to-Ethernet : Physical Characteristics
Dimensions	with ears: 90 x 100.4 x 29 mm (3.54 x 3.95 x 1.1 in), without ears: 67 x 100.4 x 29 mm (2.64 x 3.95 x 1.1 in)
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV(AC), 0.5 kV(DC); Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF, IEC 61000-4-11; Traffic Control: NEMA TS2; Vibration: IEC 60068-2-6; Freefall: IEC 60068-2-34; Safety: UL 60950-1, UL 62368-1; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR
Installation	Desktop, DIN-rail mounting (with optional kit), Wall mounting
Housing	Metal
Operating Temperature	0 to 55°C (32 to 131°F)
Storage Temperature	-40 to 75°C (-40 to 167°F)
Operation Humidity	5 to 95% (non-condensing)
Weight	240 g (0.53 lb)
